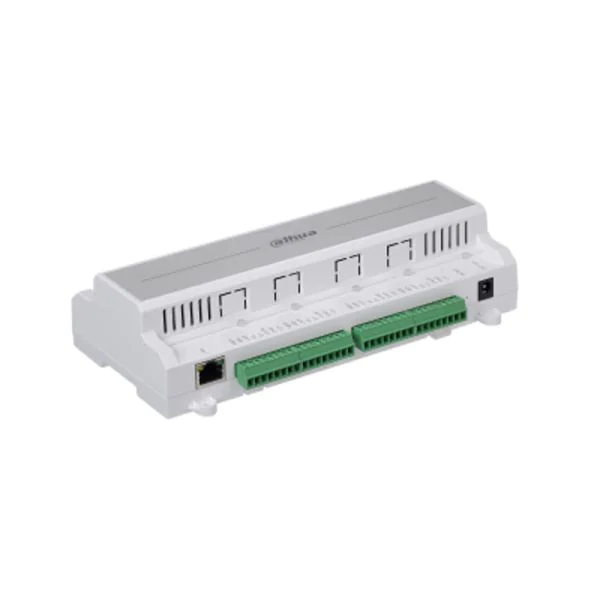

The Dahua Four Door Access Controller ASC1204B-S is an advanced access control system designed to secure and manage up to four doors. Renowned for its high efficiency and seamless integration, this access controller is ideally suited for diverse security applications in both commercial and residential settings. It combines modern technology with ease of use to ensure optimal access management.
Quick Spec
| Brand | Dahua |
| Product Name | ASC1204B-S |
| Controller Type | Four Door Access Controller |
| Communication | TCP/IP, RS-485 |
| Power Supply | 12V DC |
Product Features
- Supports up to 100,000 valid cards and 150,000 event records.
- Sophisticated anti-passback and multi-door interlock functions.
- Integration with video intercom and alarm system.
- Remote control and monitoring via client software and web.
- Easy firmware upgrade through network.
Product Applications
- Corporate offices requiring high-level security and access management.
- Residential buildings looking to control access to common areas like lobbies and gyms.
- Industrial sites needing a reliable solution to manage multiple entry points.
Supported Options
| Accessory | Model |
| Proximity Card Reader | ASF1210D |
| Power Supply Backup | PSEP202A |
| Remote Control | ARD1100-W |
Compare to Similar Items
| Model | Differences |
| ASC1202B-S | Supports 2 doors instead of 4 |
| ASC2204C-S | Enhanced connectivity and integration options |
| ASC3204D-S | Additional onboard storage capacity |
Get more information
For further information about the Dahua ASC1204B-S, contact us through Live Chat or at sales@router-switch.com. Check Dahua ASC1204B-S price and ASC1204B-S datasheet, buy Dahua ASC1204B-S with best price and fast shipping. Free Live Chat are supported.
Dahua ASC1204B-S Specification
ASC1204B-S Specifications |
|
| Brand | Dahua |
| Model | ASC1204B-S |
| Product Type | Four Door Access Controller |
| Number of Doors | 4 |
| User Capacity | 100,000 |
| Card Capacity | 150,000 |
| Event Buffer | 200,000 |
| Communication Interface | RS-485, TCP/IP |
| Input | 16 (8 Exit Button, 8 Door Status) |
| Output | 12 Relay Outputs |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% – 90% RH (non-condensing) |
| Dimensions | 315mm x 242mm x 68mm |
| Mounting | Wall Mount |
| LED Indicators | Power, Status, Communication |
| Network | 10/100 Mbps Ethernet |
| Firmware | Upgradeable |
| Backup Battery | Optional |
| Alarm | Yes |
