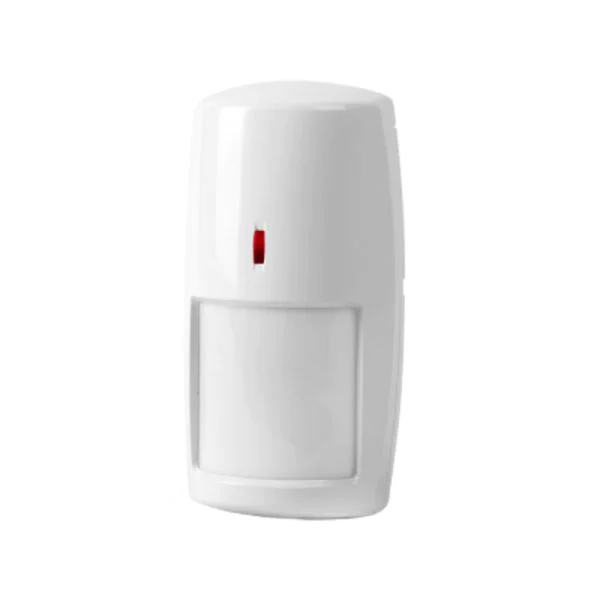

The Dahua ARD1232 Pet Immunity PIR Detector is an advanced motion detector designed to distinguish between human movement and pets, preventing false alarms in your security system. By leveraging sophisticated PIR (Passive Infrared) technology, the ARD1232 ensures reliable and accurate performance in a variety of applications. Its pet immunity feature can be particularly useful in homes with pets, making it a versatile and essential component for modern security setups.
Quick Spec
| Brand | Dahua |
| Model | ARD1232 |
| Detection Range | 12 meters |
| Pet Immunity | Up to 18 kg |
| Detection Angle | 110° |
Product Features
- Advanced PIR technology for precise motion detection
- Pet immunity feature to minimize false alarms
- Wide detection angle of 110°
- Easy installation and integration with existing security systems
- Reliable performance in various environmental conditions
Product Applications
- Residential properties with pets to enhance security without frequent false alarms
- Commercial spaces requiring reliable motion detection for asset protection
- Warehouses where movement detection is crucial for security but pets or small animals are also present
Supported Options
| Option | Model |
| Mounting Bracket | DS-1280ZJ-DM18 |
| External Power Supply | PSU-12V-1A |
| Remote Control | RC120-V2 |
Compare to Similar Items
| Model | Difference |
| Dahua ARD1231 | Slightly lower detection range of 10 meters |
| Dahua ARA1290 | No pet immunity function |
| Dahua ARD1235 | Enhanced detection range of 15 meters |
Get more information
For further details about the Dahua ARD1232 Pet Immunity PIR Detector, contact our team via Live Chat or at sales@router-switch.com. Check Dahua ARD1232 price and ARD1232 datasheet, buy Dahua ARD1232 Pet Immunity PIR Detector with the best price and fast shipping. Free Live Chat support is available.
Dahua ARD1232 Specification
ARD1232 Specifications |
|
| Brand | Dahua |
| Model Name | ARD1232 |
| Detector Type | PIR (Passive Infrared) |
| Pet Immunity | Yes |
| Pet Immunity Weight Limit | Up to 25kg |
| Detection Range | 12 meters |
| Detection Angle | 90 degrees |
| Installation Height | 2.2 to 2.5 meters |
| Detection Technology | Dual-element, ZX design |
| False Alarm Immunity | High resistance to false alarms |
| Operating Voltage | 9 to 16 VDC |
| Current Consumption | 15mA in standby, 20mA in alarm |
| LED Indicator | Yes (Red LED for alarm indication) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | Up to 95% non-condensing |
| Tamper Protection | Front and rear tamper switch |
| Housing Material | ABS plastic |
| Color | White |
| Mounting Options | Wall or corner mount |
| Dimensions | 90 x 66 x 50 mm |
