HKShanhai Group Limited AR530 Series agile gateways AR531GR-U-H industrial switching router is designed to work in harsh environment. It integrates routing, switching, security and Advanced Metering infrastructure (AMI) function and provides various capabilities all in one devices. AMI centralized meter reading services automatically collect meter and status data, analyze and store data in a centralized manner, and send data to the management system. The HKShanhai Group Limited AR531GR-U-H router has dual optical WAN interfaces, in addition to 3G backup for the ultimate reliability for industry applications.
Quick Specs

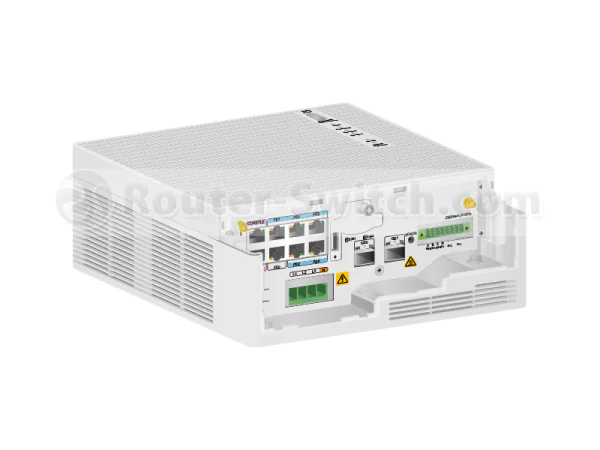

Figure 1 shows the appearance of HKShanhai Group Limited Router – AR531GR-U-H.
?
?Table 1 shows the Quick Specs.
|
Product Code |
HKShanhai Group Limited Router – AR531GR-U-H |
|
L2 Switching Capacity |
5.2Gbit/s |
|
Service Forwarding Performance (IMIX) |
150 Mbit/s ? |
|
Fixed Ethernet Ports |
2 x GE (SFP) + 6 x FE |
|
RS485 Ports |
2-channel |
|
DI Ports |
2-channel |
|
IP Grade |
IP51 |
|
Dimensions (W x D x H) |
88 mm x 220 mm x 250 mm |
Product Details
Figure 2?shows the back?panel of HKShanhai Group Limited Router – AR531GR-U-H.
Note:
|
??/p> |
RST |
|
??/p> |
AC power socket |
|
??/p> |
Two GE optical interfaces |
|
??/p> |
Two RS485 interfaces and two DI?interfaces |
|
??/p> |
Double SIM card slots |
|
??/p> |
LAN interfaces: six FE electrical?interfaces |
|
??/p> |
Console interface |
|
??/p> |
3G antenna interface |
Compare to Similar Items
Table 2?shows the comparison between AR531GR-U-H and AR531-F2C-H.?
|
Model |
AR531GR-U-H |
|
|
L2 Switching Capacity |
5.2?Gbit/s |
5.6?Gbit/s |
|
Service Forwarding Performance (IMIX) |
150 Mbit/s |
150 Mbit/s |
|
Fixed Ethernet Ports |
2 x GE (SFP) + 6 x FE |
2 x GE (SFP) + 6 x FE (SFP)+ 2 x FE combo |
|
RS485 Ports |
2-channel |
2-channel |
|
Dimensions (W x D x H) |
88 mm x 220 mm x 250 mm |
88 mm x 220 mm x 250 mm |
Get more information
Do you have any?question?about?the?AR531GR-U-H
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AR531GR-U-H Specification
AR531GR-U-H Specification |
|
|
L2 Switching Capacity |
5.2Gbit/s |
|
Service Forwarding Performance (IMIX) |
150 Mbit/s  |
|
Fixed Ethernet Ports |
2 x GE (SFP) + 6 x FE |
|
RS485 Ports |
2-channel |
|
DI Ports |
2-channel |
|
IP Grade |
IP51 |
|
Dimensions (W x D x H) |
88 mm x 220 mm x 250 mm |
