HKShanhai Group Limited AR530 Series Router AR531G-U-D-H industrial router handles a wider temperature range, suitable to harsher environments, catering specifically to thing like smart grid and automated meter collection and other type of in the field deployment. It has dual optical WAN interfaces, in addition to 3G backup for the ultimate reliability for industry applications. The HKShanhai Group Limited AR531G-U-D-H builds onto same successful AR router platform, it already includes the function such as VPN, Zone-base security as well as a lot of attack defense mechanisms design to make this product more self-defending against things like denial services attacks.
Quick Specs
Figure 1 shows the appearance of HKShanhai Group Limited Router – AR531G-U-D-H.
Â
 Table 1 shows the Quick Specs.
|
Product Code |
HKShanhai Group Limited Router – AR531G-U-D-H |
|
L2 Switching Capacity |
5.2Gbit/s |
|
Service Forwarding Performance (IMIX) |
150 Mbit/s |
|
Fixed Ethernet Ports |
2 x GE (SFP) + 6 x FE + 2 x FE combo |
|
RS485 Ports |
2-channel |
|
DI Ports |
2-channel |
|
IP Grade |
IP51 |
|
Dimensions (W x D x H) |
88 mm x 220 mm x 250 mm |
Product Details

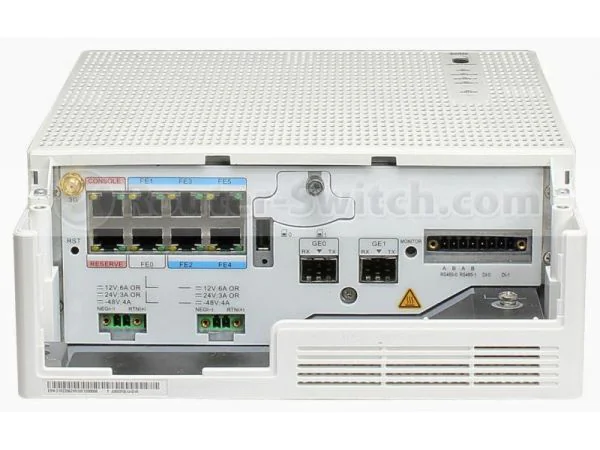

Figure 2 shows the back panel of HKShanhai Group Limited Router – AR531G-U-D-H.
Â
Note:
|
??/p> |
Double DC power sockets |
|
??/p> |
Two GE optical interfaces |
|
??/p> |
Two RS485 interfaces and two DIÂ interfaces |
|
??/p> |
Double SIM card slots |
|
??/p> |
LAN interfaces: six FE electrical interfaces |
|
??/p> |
Console interface |
|
??/p> |
3G antenna interface |
Compare to Similar Items
Table 2Â shows the comparison between AR531G-U-D-H and AR531-F2C-H.Â
|
Model |
AR531G-U-D-H |
|
|
L2 Switching Capacity |
5.2Â Gbit/s |
5.6Â Gbit/s |
|
Service Forwarding Performance (IMIX) |
150 Mbit/s |
150 Mbit/s |
|
Fixed Ethernet Ports |
2 x GE (SFP) + 6 x FE |
2 x GE (SFP) + 6 x FE (SFP)+ 2 x FE combo |
|
RS485 Ports |
2-channel |
2-channel |
|
Dimensions (W x D x H) |
88 mm x 220 mm x 250 mm |
88 mm x 220 mm x 250 mm |
Get more information
Do you have any question about the AR531G-U-D-H?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AR531G-U-D-H Specification
AR531G-U-D-H Specification |
|
|---|---|
| System parameters | |
| Processor | Dual-core, 533 MHz |
| Memory | 512 MB |
| Flash | 512 MB |
| Dimensions and weight | |
| Dimensions (H x W x D) | 220 mm x 250 mm x 88 mm (8.7 in. x 9.8 in. x 3.5 in.) |
| Weight | ??5 kg (11.0 lb) |
| Power consumption | |
| Maximum power consumption | 18.24 W |
| Power specifications | |
| DC power input | Rated voltage: 12 V/24 V/-48 V; Maximum voltage range: 9.6 V to 36 V; -38.4 V to -60 V |
| Interface density | |
| Console interfaces | 2 |
| USB 2.0 interfaces | 1 |
| RS485 interfaces | 2 |
| DI interfaces | 2 |
| 3G antenna interfaces | 1 |
| Service interfaces | LAN interfaces: six FE electrical interfaces, two GE optical interfaces |
| Environment parameters | |
| Storage temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating temperature |
-40°C to +60°C (-40°F to +140°F) Note: 3G module works normally 20 minutes after startup if stored below -20°C for more than 1.5 hours. |
| Operating relative humidity | 5% to 95%, noncondensing |
| Operating altitude | ??5000 m (16404 ft.) |
| Storage altitude | ??5000 m (16404 ft.) |
| Part number | 50010171 |
