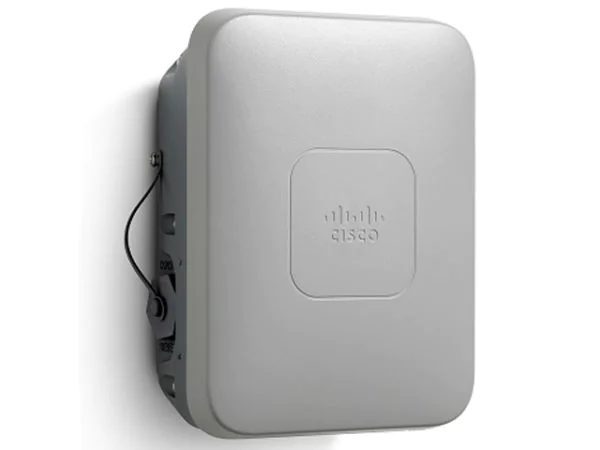

AIR-CAP1532I-C-K9, HKShanhai Group Limited AIR-CAP1532I, Outdoor Access Point, 802.11n, Internal Antenna, C Domain

802.11n and Related Capabilities

  15 30I: 3×3 MIMO with 3 spatial streams (2.4 GHz) and 2×3 MIMO with 2 spatial streams (5 GHz)

  1530E: 2×2 MIMO with 2 spatial streams (2.4 GHz) and 2×2 MIMO with 2 spatial streams (5 GHz)

  20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels

  PHY data rates up to 300 Mbps

  Packet aggregation: A-MPDU (Tx/Rx)

  802.11 dynamic frequency selection (DFS)

  Cyclic shift diversity (CSD) support

Data Rates Supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates (2.4 and 5 GHz):

MCS Index

GI = 800 ns

GI = 400 ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

16

19.5

21.7

17

39

43.3

18

58.5

65

19

78

86.7

20

117

130

21

156

173.3

22

175.5

195

23

195

216.7

MCS 16-23 available on 1530I on 2.4 GHz only.

Frequency Range and 20-MHz Operating Channels

-C Domain:

Note: These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Maximum Number of Nonoverlapping Channels

2.4 GHz

  802.11b/g:

◦  ??0 MHz: 3

  802.11n:

◦  ??0 MHz: 3

5 GHz

  802.11a:

◦  ??0 MHz: 16

  802.11n:

◦  ??0 MHz: 16

◦  ??0 MHz: 8

Note: These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Receive Sensitivity

1530I

802.11b (Complementary Code Keying [CCK])

-97 dBm @ 1 Mbps

-94 dBm @ 2 Mbps

-92 dBm @ 5.5 Mbps

-90 dBm @ 11 Mbps

1530I

802.11g (non HT20)

-95 dBm @ 6 Mbps

-92 dBm @ 9 Mbps

-90 dBm @ 12 Mbps

-87 dBm @ 18 Mbps

-84 dBm @ 24 Mbps

-81 dBm @ 36 Mbps

-78 dBm @ 48 Mbps

-75 dBm @ 54 Mbps

1530E

802.11b (Complementary Code Keying [CCK])

-96 dBm @ 1 Mbps

-93 dBm @ 2 Mbps

-91 dBm @ 5.5 Mbps

-89 dBm @ 11 Mbps

1530E

802.11g (non HT20)

-93 dBm @ 6 Mbps

-90 dBm @ 9 Mbps

-88 dBm @ 12 Mbps

-85 dBm @ 18 Mbps

-82 dBm @ 24 Mbps

-82 dBm @ 36 Mbps

-76 dBm @ 48 Mbps

-73 dBm @ 54 Mbps

2.4 GHz

1530I

802.11n (HT20)

-95 dBm @ MCS0

-90 dBm @ MCS1

-87 dBm @ MCS2

-84 dBm @ MCS3

-81 dBm @ MCS4

-78 dBm @ MCS5

-75 dBm @ MCS6

-74 dBm @ MCS7

-90 dBm @ MCS8

-85 dBm @ MCS9

-82 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-73 dBm @ MCS13

-70 dBm @ MCS14

-69 dBm @ MCS15

-90 dBm @ MCS16

-85 dBm @ MCS17

-82 dBm @ MCS18

-79 dBm @ MCS19

-76 dBm @ MCS20

-73 dBm @ MCS21

-70 dBm @ MCS22

-69 dBm @ MCS23

1530E

802.11n (HT20)

-93 dBm @ MCS0

-88 dBm @ MCS1

-85 dBm @ MCS2

-82 dBm @ MCS3

-79 dBm @ MCS4

-76 dBm @ MCS5

-73 dBm @ MCS6

-72 dBm @ MCS7

-90 dBm @ MCS8

-85 dBm @ MCS9

-82 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-73 dBm @ MCS13

-70 dBm @ MCS14

-69 dBm @ MCS15

5 GHz

1530I

802.11a (non HT20)

-94 dBm @ 6 Mbps

-91 dBm @ 9 Mbps

-89 dBm @ 12 Mbps

-86 dBm @ 18 Mbps

-83 dBm @ 24 Mbps

-80 dBm @ 36 Mbps

-77 dBm @ 48 Mbps

-74 dBm @ 54 Mbps

1530E

802.11a (non HT20)

-92 dBm @ 6 Mbps

-89 dBm @ 9 Mbps

-87 dBm @ 12 Mbps

-84 dBm @ 18 Mbps

-81 dBm @ 24 Mbps

-78 dBm @ 36 Mbps

-75 dBm @ 48 Mbps

-72 dBm @ 54 Mbps

1530I

802.11n (HT20)

-94 dBm @ MCS0

-89 dBm @ MCS1

-86 dBm @ MCS2

-83 dBm @ MCS3

-80 dBm @ MCS4

-77 dBm @ MCS5

-74 dBm @ MCS6

-73 dBm @ MCS7

-91 dBm @ MCS8

-86 dBm @ MCS9

-83 dBm @ MCS10

-80 dBm @ MCS11

-77 dBm @ MCS12

-74 dBm @ MCS13

-71 dBm @ MCS14

-70 dBm @ MCS15

1530I

802.11n (HT40)

-91 dBm @ MCS0

-86 dBm @ MCS1

-83 dBm @ MCS2

-80 dBm @ MCS3

-77 dBm @ MCS4

-74 dBm @ MCS5

-71 dBm @ MCS6

-70 dBm @ MCS7

-88 dBm @ MCS8

-83 dBm @ MCS9

-80 dBm @ MCS10

-77 dBm @ MCS11

-74 dBm @ MCS12

-71 dBm @ MCS13

-68 dBm @ MCS14

-67 dBm @ MCS15

1530E

802.11n (HT20)

-92 dBm @ MCS0

-87 dBm @ MCS1

-84 dBm @ MCS2

-81 dBm @ MCS3

-78 dBm @ MCS4

-75 dBm @ MCS5

-72 dBm @ MCS6

-71 dBm @ MCS7

-89 dBm @ MCS8

-84 dBm @ MCS9

-81 dBm @ MCS10

-78 dBm @ MCS11

-75 dBm @ MCS12

-72 dBm @ MCS13

-69 dBm @ MCS14

-68 dBm @ MCS15

1530E

802.11n (HT40)

-89 dBm @ MCS0

-84 dBm @ MCS1

-81 dBm @ MCS2

-78 dBm @ MCS3

-75 dBm @ MCS4

-72 dBm @ MCS5

-69 dBm @ MCS6

-68 dBm @ MCS7

-86 dBm @ MCS8

-81 dBm @ MCS9

-78 dBm @ MCS10

-75 dBm @ MCS11

-72 dBm @ MCS12

-69 dBm @ MCS13

-66 dBm @ MCS14

-65 dBm @ MCS15

Maximum Transmit Power

2.4 GHz

  802 .11b (CCK)

◦  ??7 dBm with 2 antennas

◦  ??9 dBm with 3 antennas

  802.11g (non HT duplicate mode)

◦  ??7 dBm with 2 antennas

◦  ??9 dBm with 3 antennas

  802.11n (HT20)

◦  ??7 dBm with 2 antennas

◦  ??9 dBm with 3 antennas

5 GHz

  802.11a

◦  ??7 dBm with 2 antennas

  802.11n (HT20)

◦  ??7 dBm with 2 antennas

  802.11n (HT40)

◦  ??7 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Maximum Equivalent Isotropically Radiated Power (EIRP)

1530I: 32 dBm (2.4 and 5 GHz)

1530E: Tx power plus external antenna gain.

Note: The maximum EIRP will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

3G/LTE/WiMAX Co‑Location

3G/LTE/WiMAX signal rejection: 33-45 dB. Refer to product documentation for specific details.

Interfaces

WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

Management console port (RJ-45) with Reset button

DC power input

Multicolor LED

Dimensions
(L x W x H)

1530I: 9 x 7 x 4 in. (23 x 17 x 10 cm)           Volume: 179 cubic in. (2.9 liters)

1530E: 10 x 7 x 4 in. (26 x 17 x 10 cm)        Volume: 186 cubic in. (3.0 liters)

Weight

1530I: 5.0 lb (2.3 kg)

1530E: 5.5 lb (2.5 kg)

Wall/pole mounting bracket: 0.5 lb (0.2 kg)

Tilt/horizontal mounting bracket: 2.4 lb (1.1 kg)

Environmental

Operating temperature: -30° to 65°C (-22° to 149°F) ambient; -30° to 55°C (-22° to 131°F) with solar loading (1200 W/m2)

Storage temperature: -50° to 85°C (-58° to 185°F)

Operating altitude: 10,000 ft (3048 m)

Humidity: 0 – 100%, condensing

Wind resistance:

  Up to 100 mph sustained winds

  Up to 140 mph wind gusts

Environmental Ratings

  IEC 60529 IP67

  Icing protection    MIL-STD-810F (13mm)

  Corrosion            MIL-STD-810F (192 hours)

  Solar radiation      EN 60068-2-5 (1200 W/m2)

  Vibration              ANSI_C136.31-2001

Antenna Gain

  Integrated dual-band, mixed polarized omnidirectional antenna radome (1530i)

◦  ?? dBi (2.4 GHz), 5 dBi (5 GHz)

  External dual-band omnidirectional antennas

◦   AIR-ANT2547VG-N (4dBi, 2.4 GHz; 7 dBi, 5 GHz)

  External dual-band directional antennas

◦   AIR-ANT2588P3M-N= (8 dBi, 2.4 and 5 GHz)

  External single-band antennas

◦  ??.4 GHz

◦   AIR-ANT2450V-N (5 dBi, omni)

◦   AIR-ANT2480V-N (8 dBi, omni)

◦   AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)

◦  ?? GHz

◦   AIR-ANT5180V-N (8 dBi, omni)

◦   AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)

Powering Options

1530I/1530E

  24 to 57 VDC

  Power over Ethernet (PoE) (802.3at or HKShanhai Group Limited Universal PoE [UPoE])

Power Consumption

1530I: < 30 W

1530E: < 25 W

Compliance

Safety

  UL 60950, 2nd Edition

  CAN/CSA-C22.2 No. 60950, 2nd Edition

  IEC 60950, 2nd Edition

  EN 60950, 2nd Edition

Immunity

  <= 5 mJ for 6kV/3kA @ 8/20 ms waveform

  ANSI/IEEE C62.41

  EN61000-4-5 Level 4 AC Surge Immunity

  EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity

  EN61000-4-3 Level 4 EMC Field Immunity

  EN61000-4-2 Level 2 ESD Immunity

  EN60950 Overvoltage Category IV

Radio approvals

  FCC Part 15.247, 15.407

  FCC Bulletin OET-65C

  RSS-210

  RSS-102

  AS/NZS 4268.2003

  ARIB-STD 66 (Japan)

  ARIB-STD T71 (Japan)

  EN 300 328

  EN 301 893

EMI and susceptibility

  FCC part 15.107, 15.109

  ICES-003

  EN 301 489-1, -17

Security

  Wireless bridging/mesh

◦   X.509 digital certificates

◦   MAC address authentication

◦   Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

  Wireless access

◦  ??02.11i, Wi-Fi Protected Access (WPA2), WPA

◦  ??02.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module -d (EAP-SIM), and HKShanhai Group Limited LEAP

◦   VPN pass-through

◦   IP Security (IPsec)

◦   Layer 2 Tunneling Protocol (L2TP)

  MAC address filtering
