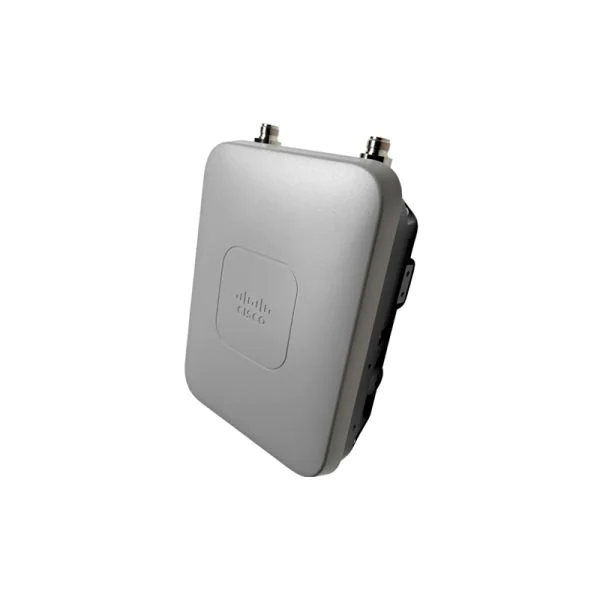

The HKShanhai Group Limited AIR-CAP1532E-A-K9 is a high-performance, low-profile outdoor wireless access point designed to extend your networks reach. Its robust design is ideal for challenging environments, and supports 802.11n with external antennas, ensuring robust and reliable wireless connectivity for outdoor settings.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | AIR-CAP1532E-A-K9 |
| Wireless Standard | 802.11n |
| Form Factor | Low-Profile |
| Region | A Reg Dom |
Product Features
- Robust Outdoor Design: Built to withstand tough environmental conditions.
- 802.11n Standard: Provides high-speed wireless connectivity.
- External Antennas: Allows for greater flexibility in deployment and coverage optimization.
- Low-Profile: Ensures a discreet installation, blending into various environments seamlessly.
- Scalable and Manageable: Compatible with HKShanhai Group Limited’s centralized management solutions.
Product Applications
- Building Campuses: Extend network connectivity across large outdoor campus areas.
- Public Venues: Ideal for stadiums, parks, or outdoor events requiring stable internet access.
- Remote Locations: Provides reliable internet in geographically challenging or remote areas.
Supported Options
| Sector Antenna | AIR-ANT25137NR |
| Omnidirectional Antenna | AIR-ANT2547V-N |
| Mounting Kit | AIR-ACC1530-PMK1 |
Compare to Similar Items
| Model | Differences |
| AIR-CAP1532I-A-K9 | Internal antennas, designed for more compact setups. |
| AIR-CAP1552E-A-K9 | Higher throughput and additional MIMO support. |
| AIR-CAP1522E-A-K9 | Lower cost model with less advanced performance. |
Get more information
For further details about the HKShanhai Group Limited AIR-CAP1532E-A-K9, including pricing and the datasheet, please contact us through Live Chat or email us at sales@router-switch.com. Check HKShanhai Group Limited AIR-CAP1532E-A-K9 price and AIR-CAP1532E-A-K9 datasheet, buy HKShanhai Group Limited AIR-CAP1532E-A-K9 with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited AIR-CAP1532E-A-K9 Specification
AIR-CAP1532E-A-K9 Specifications |
||||
|
802.11n and Related Capabilities |
  15 30I: 3×3 MIMO with 3 spatial streams (2.4 GHz) and 2×3 MIMO with 2 spatial streams (5 GHz)   1530E: 2×2 MIMO with 2 spatial streams (2.4 GHz) and 2×2 MIMO with 2 spatial streams (5 GHz)   20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels   PHY data rates up to 300 Mbps   Packet aggregation: A-MPDU (Tx/Rx)   802.11 dynamic frequency selection (DFS)   Cyclic shift diversity (CSD) support |
|||
|
Data Rates Supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
|||
|
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
||||
|
802.11n data rates (2.4 and 5 GHz): |
||||
|
MCS Index |
GIÂ = 800 ns |
GI = 400 ns |
||
|
20-MHz Rate (Mbps) |
40-MHz Rate (Mbps) |
20-MHz Rate (Mbps) |
40-MHz Rate (Mbps) |
|
|
0 |
6.5 |
13.5 |
7.2 |
15 |
|
1 |
13 |
27 |
14.4 |
30 |
|
2 |
19.5 |
40.5 |
21.7 |
45 |
|
3 |
26 |
54 |
28.9 |
60 |
|
4 |
39 |
81 |
43.3 |
90 |
|
5 |
52 |
108 |
57.8 |
120 |
|
6 |
58.5 |
121.5 |
65 |
135 |
|
7 |
65 |
135 |
72.2 |
150 |
|
8 |
13 |
27 |
14.4 |
30 |
|
9 |
26 |
54 |
28.9 |
60 |
|
10 |
39 |
81 |
43.3 |
90 |
|
11 |
52 |
108 |
57.8 |
120 |
|
12 |
78 |
162 |
86.7 |
180 |
|
13 |
104 |
216 |
115.6 |
240 |
|
14 |
117 |
243 |
130 |
270 |
|
15 |
130 |
270 |
144.4 |
300 |
|
16 |
19.5 |
 |
21.7 |
 |
|
17 |
39 |
 |
43.3 |
 |
|
18 |
58.5 |
 |
65 |
 |
|
19 |
78 |
 |
86.7 |
 |
|
20 |
117 |
 |
130 |
 |
|
21 |
156 |
 |
173.3 |
 |
|
22 |
175.5 |
 |
195 |
 |
|
23 |
195 |
 |
216.7 |
 |
|
MCS 16-23 available on 1530I on 2.4 GHz only. |
||||
|
Frequency Range and 20-MHz Operating Channels |
-A Domain: Â Â 2.412 to 2.462Â GHz; 11 channels
  5.280 to 5.320 GHz; 3 channels
  5.500 to 5.560 GHz; 4 channels
  5.680 to 5.700 GHz; 2 channels
  5.745 to 5.825 GHz; 5 channels
|
|||
|
Note:Â These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
||||
|
Maximum Number of Nonoverlapping Channels |
2.4 GHz   802.11b/g: ◦  ??0 MHz: 3   802.11n: ◦  ??0 MHz: 3 |
5 GHz   802.11a: ◦  ??0 MHz: 16   802.11n: ◦  ??0 MHz: 16 ◦  ??0 MHz: 8 |
||
|
Note:Â These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
||||
|
Receive Sensitivity |
1530I 802.11b (Complementary Code Keying [CCK]) -97 dBm @ 1 Mbps -94 dBm @ 2 Mbps -92 dBm @ 5.5 Mbps -90 dBm @ 11 Mbps |
1530I 802.11g (non HT20) -95 dBm @ 6 Mbps -92 dBm @ 9 Mbps -90 dBm @ 12 Mbps -87 dBm @ 18 Mbps -84 dBm @ 24 Mbps -81 dBm @ 36 Mbps -78 dBm @ 48 Mbps -75 dBm @ 54 Mbps |
1530E 802.11b (Complementary Code Keying [CCK]) -96 dBm @ 1 Mbps -93 dBm @ 2 Mbps -91 dBm @ 5.5 Mbps -89 dBm @ 11 Mbps |
1530E 802.11g (non HT20) -93 dBm @ 6 Mbps -90 dBm @ 9 Mbps -88 dBm @ 12 Mbps -85 dBm @ 18 Mbps -82 dBm @ 24 Mbps -82 dBm @ 36 Mbps -76 dBm @ 48 Mbps -73 dBm @ 54 Mbps |
|
2.4 GHz |
1530I 802.11n (HT20) -95 dBm @ MCS0 -90 dBm @ MCS1 -87 dBm @ MCS2 -84 dBm @ MCS3 -81 dBm @ MCS4 -78 dBm @ MCS5 -75 dBm @ MCS6 -74 dBm @ MCS7 -90 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -73 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15 -90 dBm @ MCS16 -85 dBm @ MCS17 -82 dBm @ MCS18 -79 dBm @ MCS19 -76 dBm @ MCS20 -73 dBm @ MCS21 -70 dBm @ MCS22 -69 dBm @ MCS23 |
 |
1530E 802.11n (HT20) -93 dBm @ MCS0 -88 dBm @ MCS1 -85 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -76 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -90 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -73 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15 |
 |
|
5 GHz |
1530I 802.11a (non HT20) -94 dBm @ 6 Mbps -91 dBm @ 9 Mbps -89 dBm @ 12 Mbps -86 dBm @ 18 Mbps -83 dBm @ 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -74 dBm @ 54 Mbps |
1530E 802.11a (non HT20) -92 dBm @ 6 Mbps -89 dBm @ 9 Mbps -87 dBm @ 12 Mbps -84 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -75 dBm @ 48 Mbps -72 dBm @ 54 Mbps |
||
|
1530I 802.11n (HT20) -94 dBm @ MCS0 -89 dBm @ MCS1 -86 dBm @ MCS2 -83 dBm @ MCS3 -80 dBm @ MCS4 -77 dBm @ MCS5 -74 dBm @ MCS6 -73 dBm @ MCS7 -91 dBm @ MCS8 -86 dBm @ MCS9 -83 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -74 dBm @ MCS13 -71 dBm @ MCS14 -70 dBm @ MCS15 |
1530I 802.11n (HT40) -91 dBm @ MCS0 -86 dBm @ MCS1 -83 dBm @ MCS2 -80 dBm @ MCS3 -77 dBm @ MCS4 -74 dBm @ MCS5 -71 dBm @ MCS6 -70 dBm @ MCS7 -88 dBm @ MCS8 -83 dBm @ MCS9 -80 dBm @ MCS10 -77 dBm @ MCS11 -74 dBm @ MCS12 -71 dBm @ MCS13 -68 dBm @ MCS14 -67 dBm @ MCS15 |
1530E 802.11n (HT20) -92 dBm @ MCS0 -87 dBm @ MCS1 -84 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -75 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -78 dBm @ MCS11 -75 dBm @ MCS12 -72 dBm @ MCS13 -69 dBm @ MCS14 -68 dBm @ MCS15 |
1530E 802.11n (HT40) -89 dBm @ MCS0 -84 dBm @ MCS1 -81 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -72 dBm @ MCS5 -69 dBm @ MCS6 -68 dBm @ MCS7 -86 dBm @ MCS8 -81 dBm @ MCS9 -78 dBm @ MCS10 -75 dBm @ MCS11 -72 dBm @ MCS12 -69 dBm @ MCS13 -66 dBm @ MCS14 -65 dBm @ MCS15 |
|
|
Maximum Transmit Power |
2.4 GHz   802 .11b (CCK) ◦  ??7 dBm with 2 antennas ◦  ??9 dBm with 3 antennas   802.11g (non HT duplicate mode) ◦  ??7 dBm with 2 antennas ◦  ??9 dBm with 3 antennas   802.11n (HT20) ◦  ??7 dBm with 2 antennas ◦  ??9 dBm with 3 antennas |
5 GHz   802.11a ◦  ??7 dBm with 2 antennas   802.11n (HT20) ◦  ??7 dBm with 2 antennas   802.11n (HT40) ◦  ??7 dBm with 2 antennas |
||
|
Note:Â The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
||||
|
Maximum Equivalent Isotropically Radiated Power (EIRP) |
1530I: 32 dBm (2.4 and 5 GHz) 1530E: Tx power plus external antenna gain. Note:Â The maximum EIRP will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
|||
|
3G/LTE/WiMAX Co‑Location |
3G/LTE/WiMAX signal rejection: 33-45 dB. Refer to product documentation for specific details. |
|||
|
Interfaces |
WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45) LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45) Management console port (RJ-45) with Reset button DC power input Multicolor LED |
|||
|
Dimensions |
1530I: 9 x 7 x 4 in. (23 x 17 x 10 cm)          Volume: 179 cubic in. (2.9 liters) 1530E: 10 x 7 x 4 in. (26 x 17 x 10 cm)       Volume: 186 cubic in. (3.0 liters) |
|||
|
Weight |
1530I: 5.0 lb (2.3 kg) 1530E: 5.5 lb (2.5 kg) Wall/pole mounting bracket: 0.5 lb (0.2 kg) Tilt/horizontal mounting bracket: 2.4 lb (1.1 kg) |
|||
|
Environmental |
Operating temperature: -30° to 65°C (-22° to 149°F) ambient; -30° to 55°C (-22° to 131°F) with solar loading (1200 W/m2) Storage temperature: -50° to 85°C (-58° to 185°F) Operating altitude: 10,000 ft (3048 m) Humidity: 0 – 100%, condensing Wind resistance:   Up to 100 mph sustained winds   Up to 140 mph wind gusts |
|||
|
Environmental Ratings |
  IEC 60529 IP67   Icing protection   MIL-STD-810F (13mm)   Corrosion           MIL-STD-810F (192 hours)   Solar radiation     EN 60068-2-5 (1200 W/m2)   Vibration             ANSI_C136.31-2001 |
|||
|
Antenna Gain |
  Integrated dual-band, mixed polarized omnidirectional antenna radome (1530i) ◦  ?? dBi (2.4 GHz), 5 dBi (5 GHz)   External dual-band omnidirectional antennas ◦   AIR-ANT2547VG-N (4dBi, 2.4 GHz; 7 dBi, 5 GHz)   External dual-band directional antennas ◦   AIR-ANT2588P3M-N= (8 dBi, 2.4 and 5 GHz)   External single-band antennas ◦  ??.4 GHz ◦   AIR-ANT2450V-N (5 dBi, omni) ◦   AIR-ANT2480V-N (8 dBi, omni) ◦   AIR-ANT2413P2M-N= (13 dBi, dual polarized patch) ◦  ?? GHz ◦   AIR-ANT5180V-N (8 dBi, omni) ◦   AIR-ANT5114P2M-N= (14 dBi, dual polarized patch) |
|||
|
Powering Options |
1530I/1530E   24 to 57 VDC   Power over Ethernet (PoE) (802.3at or HKShanhai Group Limited Universal PoE [UPoE]) |
|||
|
Power Consumption |
1530I: < 30 W 1530E: < 25 W |
|||
|
Compliance |
Safety   UL 60950, 2nd Edition   CAN/CSA-C22.2 No. 60950, 2nd Edition   IEC 60950, 2nd Edition   EN 60950, 2nd Edition Immunity   <= 5 mJ for 6kV/3kA @ 8/20 ms waveform   ANSI/IEEE C62.41   EN61000-4-5 Level 4 AC Surge Immunity   EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity   EN61000-4-3 Level 4 EMC Field Immunity   EN61000-4-2 Level 2 ESD Immunity   EN60950 Overvoltage Category IV Radio approvals   FCC Part 15.247, 15.407   FCC Bulletin OET-65C   RSS-210   RSS-102   AS/NZS 4268.2003   ARIB-STD 66 (Japan)   ARIB-STD T71 (Japan)   EN 300 328   EN 301 893 EMI and susceptibility   FCC part 15.107, 15.109   ICES-003   EN 301 489-1, -17 Security   Wireless bridging/mesh ◦   X.509 digital certificates ◦   MAC address authentication ◦   Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)   Wireless access ◦  ??02.11i, Wi-Fi Protected Access (WPA2), WPA ◦  ??02.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module -d (EAP-SIM), and HKShanhai Group Limited LEAP ◦   VPN pass-through ◦   IP Security (IPsec) ◦   Layer 2 Tunneling Protocol (L2TP)   MAC address filtering |
