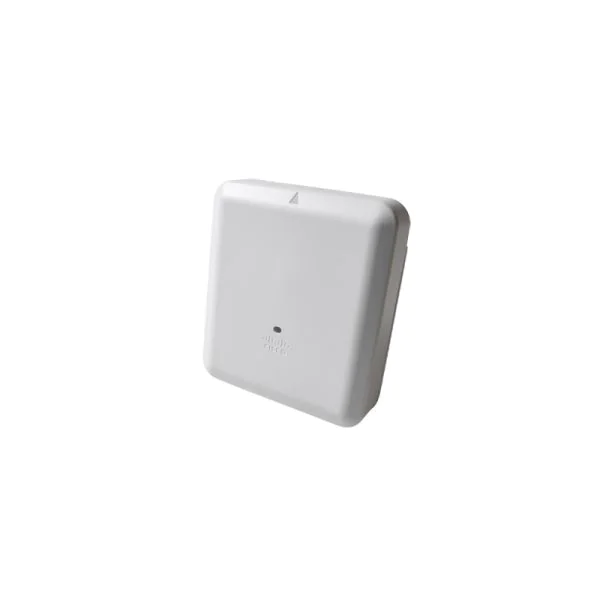

The HKShanhai Group Limited AIR-AP4800-K-K9C is an enterprise-grade access point engineered for high-density environments and advanced wireless analytics. This model supports 802.11ac Wave 2 technology, enabling superior multi-gigabit throughput, advanced location services, and seamless device mobility. Designed for organizations that require robust connectivity, it features 4×4 MU-MIMO, granular channel flexibility, and advanced security certifications. Whether deploying in office buildings, educational campuses, or mission-critical areas, the AIR-AP4800-K-K9C delivers reliable, scalable wireless coverage and optimized performance for modern enterprise networking requirements.
Product Highlights
5.2 Gbps
Max Data Rate
4×4
MU-MIMO
2.4/5 GHz
Dual-Band
Product Applications Scenarios
Enterprise Network
Delivers high-density, seamless coverage and analytics for business-critical applications, improving network efficiency and productivity.
Cloud Services
Optimizes wireless connectivity for cloud-based tools, ensuring low-latency performance and rapid access for users and IoT devices.
Edge & IoT
Supports reliable, scalable edge deployments with advanced device management and analytics to enhance IoT network security.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-K-K9C | AIR-AP2802I-K-K9 | AIR-AP3802P-A-K9C | AIR-AP1852I-H-K9C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 5.2 Gbps | 1.7 Gbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz |
| Client Capacity | n/a | n/a | n/a | 400 per AP |
| Network Interface | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45), 100/1000BASE-T AUX (RJ-45), Console (RJ-45) | 2x 100/1000BASE-T autosensing (RJ-45), Management console port (RJ-45), USB 2.0 | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45), AUX, Console (RJ-45) | 2x 10/100/1000BASE-T (RJ-45), PoE/AUX, Console (RJ-45), USB 2.0 (future use) |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited Power Injector for compatible 802.3at PoE+ access points |
| AIR-PWR-50= | HKShanhai Group Limited 50W Power Supply for Aironet Access Points |
| AIR-AP-BRACKET-1 | HKShanhai Group Limited Mounting Bracket for secure wall or ceiling installation |
HKShanhai Group Limited AIR-AP4800-K-K9C Specification
Model
AIR-AP4800-K-K9C
Brand
HKShanhai Group Limited
Description
802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -K Domain, Configurable
Software and Supported Wireless LAN Controllers
HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later
HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, HKShanhai Group Limited 9800 Series Wireless Controllers
HKShanhai Group Limited IOS® XE Software Release 16.9
HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches
HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, HKShanhai Group Limited 9800 Series Wireless Controllers
HKShanhai Group Limited IOS® XE Software Release 16.9
HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches
802.11n Version 2.0 (and Related) Capabilities
4×4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 Capabilities
4×4 MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
802.11ac Wave 2 Capabilities
4×4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Wi-Fi Alliance Certifications
Wi-Fi Certified a, b, g, n, ac
Wi-Fi Vantage
Wi-Fi Multimedia (WMM)
Passpoint
Wi-Fi Vantage
Wi-Fi Multimedia (WMM)
Passpoint
Integrated Antenna
Flexible radio (either 2.4 GHz or 5 GHz)
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°
Dedicated 5-GHz radio
5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth
Third dedicated radio
2.4 GHz and 5 GHz capable
Hyperlocation antenna array
BLE radio
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°
Dedicated 5-GHz radio
5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth
Third dedicated radio
2.4 GHz and 5 GHz capable
Hyperlocation antenna array
BLE radio
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
Interfaces
2 Ethernet ports
100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz
Category 5e cabling
Higher-quality 10GBASE-T (Category 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 AUX port)
Management console port (RJ-45)
100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz
Category 5e cabling
Higher-quality 10GBASE-T (Category 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 AUX port)
Management console port (RJ-45)
Indicators
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)
Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)
Weight
5.6 lb (2.5 kg)
Input Power Requirements
802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®)
802.3at power injector (AIR-PWRINJ6=)
50W power supply (AIR-PWR-50=)
802.3at power injector (AIR-PWRINJ6=)
50W power supply (AIR-PWR-50=)
Power Draw
30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support
31W at the PSE with full functionality
31W at the PSE with full functionality
Environmental
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
Nonoperating (storage) altitude test: 25°C, 15,000 ft
Operating temperature: 32° to 104°F (0° to 40°C)
Operating humidity: 10% to 90% percent (noncondensing)
Operating altitude test: 40°C, 9843 ft. (noncondensing)
Nonoperating (storage) altitude test: 25°C, 15,000 ft
Operating temperature: 32° to 104°F (0° to 40°C)
Operating humidity: 10% to 90% percent (noncondensing)
Operating altitude test: 40°C, 9843 ft. (noncondensing)
System Memory
1024 MB DRAM
256 MB flash
256 MB flash
Available Transmit Power Settings
2.4 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
5 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
5 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
Frequency Band and 20-MHz Operating Channels
K (K regulatory domain):
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.620 GHz; 7 channels
5.745 to 5.805 GHz; 4 channels
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.620 GHz; 7 channels
5.745 to 5.805 GHz; 4 channels
Get more information
Discover unbeatable prices and fast shipping for the AIR-AP4800-K-K9C . Access the detailed AIR-AP4800-K-K9C datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
