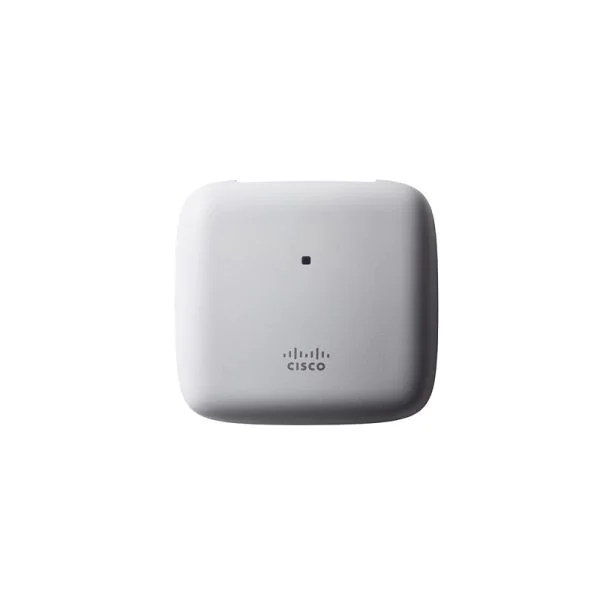

The HKShanhai Group Limited AIR-AP1815I-R-K9C is an enterprise-grade access point from the 1815i series, engineered for reliable wireless coverage and high throughput. The 1815i model delivers consistent access with support for 802.11a/b/g/n/ac standards, providing up to 866.7 Mbps data rates. As a robust air-ap1815i-r-k9c access point, it features internal antennas, optimized security features, and a user-friendly web interface. This solution is designed to meet the growing demands for high-performance wireless connectivity in modern network environments.
Product Highlights
866.7 Mbps
Max Speed
2.4/5 GHz
Dual Band
200
Client Cap.
Product Applications Scenarios
Enterprise Network
AIR-AP1815I-R-K9C optimizes enterprise wireless access, ensuring strong 1815i series performance for stable and secure connectivity throughout business networks.
Cloud Services
The access capabilities of this air-ap1815i-r-k9c model enable seamless, efficient connections to cloud platforms and remote resources with enhanced reliability.
Edge & IoT
This access point secures and supports edge deployments, rapidly connecting up to 200 devices per 1815i, reducing network latency for IoT solutions.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1815I-R-K9C | AIR-AP1815I-E-K9 | AIR-AP1815W-B-K9C | AIR-AP1815M-B-K9C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac |
| Maximum Data Rate | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | 200 clients per access point | 200 per Wi-Fi radio, total 400 clients per access point | 200 per Wi-Fi radio, total 400 per access point | 200 per Wi-Fi radio, total 400 per access point |
| Network Interface | 1x 10/100/1000 Ethernet port | 1 x 10/100/1000BASE-T autosensing (RJ-45), PoE | 1 x 10/100/1000BASE-T (PoE), 3 x 10/100/1000BASE-T (local, 1 PoE out), RJ-45 pass-through, Management console (4-pin) | 1 x 10/100/1000BASE-T autosensing (RJ-45, PoE), Management console (RJ-45) |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ5= | HKShanhai Group Limited Power Injector for PoE-enabled 1815i Series Access Points |
| AIR-AP-BRACKET-8= | Mounting Bracket for HKShanhai Group Limited 1815i Series, secure wall or ceiling install |
| AIR-SEC-50= | Security Kit, includes screws and RJ-45 caps for HKShanhai Group Limited 1815i devices |
HKShanhai Group Limited AIR-AP1815I-R-K9C Specification
| Model | AIR-AP1815I-R-K9C |
| Brand | HKShanhai Group Limited |
| Series | Aironet Mobility Express 1815i Series |
| Wireless Standards | 802.11a/b/g/n/ac |
| Maximum Data Rate | 866.7 Mbps |
| Frequency Band | 2.4 GHz and 5 GHz |
| Antenna Type | Internal antennas |
| Ports | 1x 10/100/1000 Ethernet port |
| Power Options | IEEE 802.3af PoE, HKShanhai Group Limited Power Injector |
| Security Features | WPA/WPA2 PSK, 802.1X, ACLs |
| MIMO | 2×2 MU-MIMO |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 150 x 150 x 37 mm (5.91 x 5.91 x 1.46 in) |
| LED Indicators | Power, Ethernet, 2.4 GHz, 5 GHz |
| Mounting Options | Ceiling, wall |
| Management Options | Web-based interface, CLI |
| Maximum Clients | 200 clients per access point |
| Encryption Standards | WEP, WPA, WPA2 |
| Compliance | FCC, CE, IC |
| QoS | 802.11e/WMM |
| Uplink Speed | 1 Gbps |
| Deployment Options | Standalone, Controller-based |
| AIR-AP1815I-R-K9C | AIR-AP1815I-R-K9C |
