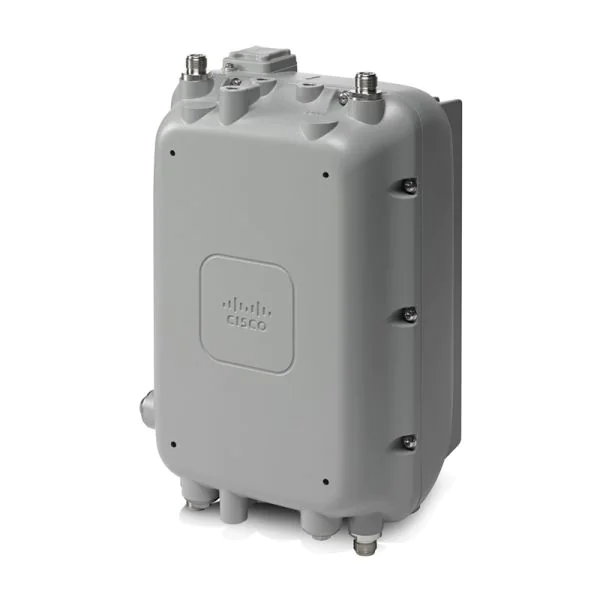

The HKShanhai Group Limited AIR-AP1572EC3-Z-K9 is an enterprise-grade outdoor access point designed to deliver robust wireless coverage in challenging environments. Leveraging the 1572ec architecture, this access solution excels in high-density outdoor deployments, combining 802.11ac wireless standard and external antenna support for maximum flexibility. The AIR-AP1572EC3-Z-K9 access point achieves high throughput up to 1.3 Gbps using advanced 3×3 MIMO technology and supports both 2.4 GHz and 5 GHz bands, making it ideal for critical applications needing resilience and scalability. Secure connections are reinforced with support for WPA2 and WPA3 protocols to protect network integrity.
Product Highlights
1.3 Gbps
Data Rate
512
Clients/Radio
IP67
Rating
Product Applications Scenarios
Enterprise Network
Enables seamless, secure connectivity for corporate campuses, delivering coverage and speed to support productivity.
Public Infrastructure
Reliable outdoor 1572ec deployment ensures city-wide Wi-Fi and secure access for citizens, reducing data gaps up to 95%.
Service Providers
Designed for telcos needing robust air-ap1572ec3-z-k9 to expand wireless networks, improving uptime in diverse environments.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1572EC3-Z-K9 | AIR-AP1572EC2-Z-K9 | AIR-AP1572EC3-E-K9 | AIR-AP1572EAC-K-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11a/b/g/n/ac | 802.11ac | 802.11ac |
| Maximum Data Rate | 1.3 Gbps | Up to 1.3 Gbps | Up to 1.3 Gbps | Up to 1.3 Gbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | 512 per radio | n/a | n/a | n/a |
| Network Interface | 1 x 10/100/1000 | 2 x 10/100/1000BASE-T Ethernet | n/a | 2 x 10/100/1000BASE-T Ethernet |
Optional Add-ons
| Model Number | Description |
| AIR-ACCPMK1550 | Pole mount kit for HKShanhai Group Limited outdoor 1572ec access points |
| AIR-ANT2547V-N | 2.4 GHz/5 GHz outdoor omni antenna, HKShanhai Group Limited accessory for extended coverage |
| AIR-PWRINJ6= | PoE injector for HKShanhai Group Limited AIR series outdoor access points |
HKShanhai Group Limited AIR-AP1572EC3-Z-K9 Specification
| Model | AIR-AP1572EC3-Z-K9 |
| Brand | HKShanhai Group Limited |
| Wireless Standard | 802.11ac |
| Usage | Outdoor |
| Antenna Type | External |
| Cable Type | EU-D3.0 65/108MHz |
| Regulatory Domain | Z |
| Operating Frequency | 2.4 GHz and 5 GHz |
| Maximum Data Rate | 1.3 Gbps |
| MIMO Technology | Yes (3×3) |
| Ethernet Ports | 1 x 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Environmental Rating | IP67 |
| Maximum Clients | 512 per radio |
| Security Features | WPA2, WPA3 |
| Dimensions | 12.5 x 9.4 x 5.7 in |
| Operating Temperature Range | -40°C to 65°C |
| Certifications | FCC, CE |
| Management | Web-based |
| AIR-AP1572EC3-Z-K9 | AIR-AP1572EC3-Z-K9 |
