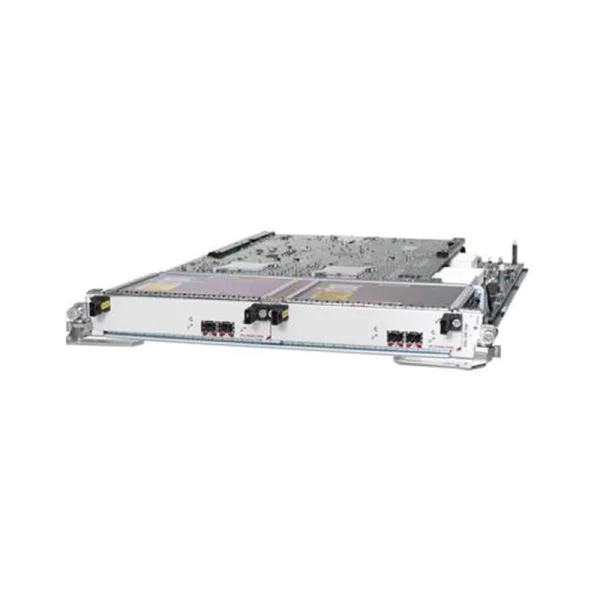

A9K-SIP-700, HKShanhai Group Limited ASR 9000 SPA Interface Processor, High-density SPA, 700Gbps throughput, ASR 9000 series

A9K-SIP-700 Specifications

Chassis compatibility

All HKShanhai Group Limited ASR 9000 Series chassis

Software compatibility

HKShanhai Group Limited IOS XR Software Release 3.9 or later

Density

Up to 4 single-height SPAs or

Up to 2 double-height SPAs or

A combination of the two ??subject to above restrictions

Interface Capabilities

A9K-SIP-700 supports following SPA interface types:

· CHT1/E1

· CT3/DS0

· T3/E3

· OC3 / STM1

· ChOC3 / ChSTM1

· OC12 / STM4

· ChOC12 / ChSTM4

· OC48 / STM16

· ChOC48 / ChSTM16

· OC192 / STM64

Routing and Service capabilities

IPv4 and IPv6 Routing. Some of the supported features include:

· BGP

· Intermediate System-to-Intermediate System (IS-IS)

· Open Shortest Path First (OSPF)

· Route Policy Language (RPL)

· BGP Prefix Independent Convergence (PIC)

· Multiprotocol Label Switching (MPLS)

· Multicast Virtual Private Network (MVPN)

· IPv6 Provider Edge (6PE)

· IPv6 Virtual Private Network to Provider Edge (6vPE)

· Traffic Engineering Fast Re-Route (TE-FRR), and Layer 3 VPN (L3VPN) services

· Packet over SONET

· Packet over SDH

· Frame Relay Point-to-Point Protocol (PPP)

· High-Level Data Link Control (HDLC)

· Multilink Point-to-Point Protocol (MLPPP)

· Multilink Frame Relay (MLFR)

· Link Fragmentation and Interleaving (LFI)

· Internet Protocol Header Compression (IPHC)

· Link Noise Monitoring (LNM), Any Transport over MPLS (AToM)

· Full Netflow

Synchronization

Derives and provides synchronization to and from SONET/SDH interfaces. Interworks with Synchronous Ethernet (SyncE) support on the Ethernet interfaces and network synchronization interfaces on the HKShanhai Group Limited ASR 9000 Route Switch Processor (RSP).

Reliability and high availability

– Online Insertion and Removal (OIR) without affecting system traffic

– Multi-Router Automatic Protection Service (MR-APS) is a HKShanhai Group Limited developed feature that provides protection against various hardware and software faults, including catastrophic system failure. MR-APS builds on the Telcordia Technologies -defined APS standard by adding Protect Group Protocol (PGP) communication between redundant routers. The SONET APS signaling and the PGP communication convey system state and SONET link state information between the Working and Protect routers. Upon failure of the network links or one of the routers, a backup path is available to prevent loss of service.

– Inter-Chassis Stateful Switchover (IC-SSO) for PPP consists of a collection of HKShanhai Group Limited IOS XR Software subfeatures that provide switchover of PPP sessions to a backup router in the event of network or router failure. The feature integrates the MR-APS, IP Fast Reroute (FRR), and Simple Server Redundancy Protocol (SSRP) features to provide fast switchover of PPP data traffic.

– Bi-directional Forwarding Detection (BFD) provides rapid failure detection times between forwarding engines, while maintaining low overhead. It also provides a single, standardized method of link/device/protocol failure detection at any protocol layer and over any media.

Manageability

– HKShanhai Group Limited IOS XR Software includes industry-standard management interfaces, including modular command-line interface (CLI), Simple Network Management Protocol (SNMP), and native XML interfaces.

– HKShanhai Group Limited Active Network Abstraction (ANA) is a flexible, vendor-neutral management framework for a multi-technology, multiservice network environment. Operating between the network and the operations-support-system (OSS) layer, HKShanhai Group Limited ANA aggregates virtual network elements (VNEs) into a software-based virtual network, much as real network elements create the real-world network. HKShanhai Group Limited ANA dynamically discovers network components and tracks the status of network elements in near real time.

– HKShanhai Group Limited ANA offers service providers:

· Simplified integration of OSS applications with network information

· A flexible common infrastructure for managing network resources

· Consistent procedures and interfaces for all network elements

MIBs

Support for a large number of hardware and product-specific as well as software feature MIBs; following is a partial list of MIBs supported:

– ENTITY-MIB,

– CISCO-ENTITY-SENSOR-MIB

– CISCO-ENTITY-ASSET-MIB

– CISCO-ENTITY-FRU-CONTROL-MIB.

– IF-MIB, DS1-MIB

– SONET-MIB

– CISCO-SONET-MIB

– BFD-MIB

Physical dimensions (H x W x D); weight

14 x 1.72 x 20.5 in.; 14 lb

Power

375W (maximum)

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature (short-term)

23 to 131ºF (?? to 55ºC)

Operating humidity (nominal) (relative humidity)

10 to 85%

Storage temperature

??0 to 158ºF (??0 to 70ºC)

Storage (relative humidity)

5 to 95%

Note: Not to exceed 0.024 kg water per kg of dry air

Operating altitude

??0 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
