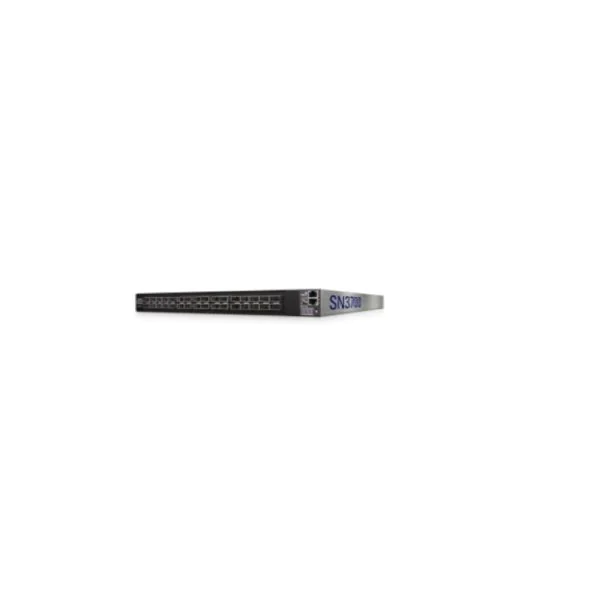

The Mellanox 920-9N201-00RA-0C0 is an enterprise-class switch designed for high-performance data center and cloud network environments. This robust NVIDIA switch supports advanced features for scalable network infrastructures and is tailored for organizations that require ultra-low latency and high throughput. With full support for 200GbE connectivity, the switch leverages 32 high-density QSFP56 ports to deliver rapid, reliable data transfer. Its compatibility with Cumulus Linux ensures flexible, open network operating system deployments, making it the ideal choice for modern software-defined networks seeking automation and customization. The hardware design maximizes the power of QSFP56 for seamless 200GbE interconnects across leaf, spine, and core architectures, unlocking superior switching capacity. For hyperscale needs, NVIDIA switch silicon provides switching fabric optimized for minimal latency—down to 425 ns—with up to 6.4 Tbps throughput, meeting the demands of demanding applications such as artificial intelligence, machine learning, and high-frequency trading. End-users benefit from the switch’s redundant hot-swappable power and fan units, supporting 24/7 operations and reliability. Distributors and system integrators will appreciate the broad compliance standards, ensuring the product meets regulatory needs across Asia, EMEA, and North America. With the flexibility of Cumulus Linux, seamless integration into automation pipelines is achieved, providing network engineers with granular control as well as open networking choices. The 920-9N201-00RA-0C0 enables distributed cloud architectures and large-scale, low-latency deployments with its rich port configuration, robust buffer, and industry-standard compatibility, ensuring that distributors, system integrators, and end-customers achieve scalable, future-proof networking. The device’s hardware and software pairing ensure streamlined network automation, making it an optimal solution for modern data center buildouts and high-availability cloud infrastructures.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | 920-9N201-00RA-0C0 | NVIDIA Mellanox MSN3700-CS2R | NVIDIA Mellanox MSN3700-VS2FO | NVIDIA Mellanox MSN4700-WS2RO |
| Port Configuration | 32 × QSFP56 200GbE | 32 × QSFP56 (200GbE Models), 32 × QSFP28 (100GbE Models) | 32 × QSFP56 (200GbE), 32 × QSFP28 (100GbE) | 32 × QSFP-DD (400GbE) |
| Switching Capacity | 6.4 Tbps | 6.4 Tbps (SN3700), 3.2 Tbps (SN3700C) | 6.4 Tbps (SN3700), 3.2 Tbps (SN3700C) | 12.8 Tbps |
| Forwarding Rate | 8.33 Bpps | n/a | n/a | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| MFA1A00-C100 | Mellanox 100G QSFP28 Active Optical Cable, 100m, ideal for 200GbE uplinks |
| MCP7F00-A001R30N | Mellanox 200GbE QSFP56 Direct Attach Copper Cable, 3m, for high-speed interconnects |
| ATCPSU-700AC | Mellanox 700W Hot-swappable AC Power Supply, redundancy for 920-9N201-00RA-0C0 |
Nvidia 920-9N201-00RA-0C0 Specification
| Model | 920-9N201-00RA-0C0 |
| Brand | Mellanox |
| Connectors | 32 × QSFP56 200GbE |
| Max 400GbE Ports | ??/td> |
| Max 200GbE Ports | 32 |
| Max 100GbE Ports | 64 |
| Max 50GbE Ports | 128* |
| Max 40GbE Ports | 32 |
| Max 25GbE Ports | 128 |
| Max 10GbE Ports | 128 |
| Max 1GbE Ports | 128 |
| Throughput | 6.4 Tbps |
| Packet Per Second | 8.33 Bpps |
| Latency | 425 ns |
| CPU | Quad-core x86 |
| System Memory | 8 GB |
| SSD Memory | 32 GB |
| Packet Buffer | 42 MB |
| 100/1000Mb/s Mgmt Ports | 1 |
| Serial Ports | 1 × RJ45 |
| USB Ports | 1 |
| Hot-Swap Power Supplies | 2 (1+1 redundant) |
| Hot-Swappable Fans | 6 (N+1 redundant) |
| Reversible Airflow Option | Yes |
| Power Requirements | 50??0 Hz, 100??64V AC, 2.9??.5A |
| Dimensions (H × W × D) | 1.72 in × 16.84 in × 22 in (44 mm × 428 mm × 559 mm) |
| Standards Compliance | Safety: CB, CE, cTUVus, CU; EMC: CE, ICES, FCC, RCM, VCCI |
| Operating Temperature | 0°C to 40°C; Non-Operating: -40°C to 70°C |
| Relative Humidity | 5% to 85% |
| Operating Altitude | 0??050 m |
| RoHS | Compliant |
| 920-9N201-00RA-0C0 | 920-9N201-00RA-0C0 |
