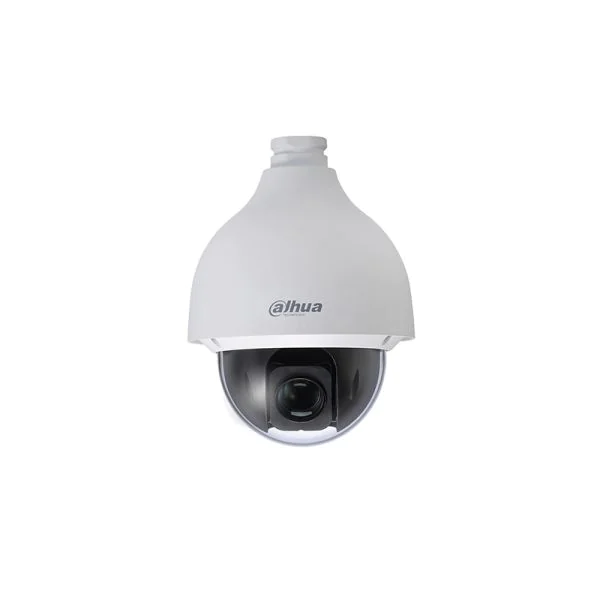

The Dahua 50230UNI-A is a high-performance 2MP 30x PTZ camera designed for versatile and efficient security monitoring. This PTZ camera offers powerful features such as high-resolution imaging, extensive zoom capability, and superior night vision. It is an ideal choice for a wide array of surveillance applications, providing exceptional image clarity and detail even in challenging environments.
Quick Spec
| Resolution | 2MP |
| Optical Zoom | 30x |
| IR Distance | Up to 150m |
| Pan Range | 360 |
| Power Supply | AC24V/3A (DC12V optional) |
Product Features
- High-performance 2MP camera with 30x optical zoom
- 360 endless pan and 90 tilt for comprehensive coverage
- Advanced infrared technology for night vision up to 150 meters
- Support for H.265 video compression to save bandwidth and storage
- Weather-resistant design for reliable outdoor use (IP66)
Product Applications
- Parking lots and garages: Monitor large open spaces with precise zoom and night vision capabilities
- City surveillance: Provide extensive coverage of public areas with 360 pan and powerful zoom
- Commercial building security: Ensure optimal surveillance for entrances, exits, and perimeter zones
Supported Options
| Mounting Brackets | PFB303S |
| Power Adapter | PFM300 |
| Control Keyboard | NKB1000 |
Compare to Similar Items
| Model | Difference |
| Dahua 50430UNI-A | 4MP resolution, higher price |
| Dahua 50220UNI-A | 20x optical zoom, shorter IR distance (100m) |
| Dahua 50250UNI-A | 50x optical zoom, larger form factor |
Get more information
For more information about the Dahua 50230UNI-A, reach out to our team via Live Chat or email at sales@router-switch.com. Check Dahua 50230UNI-A price and 50230UNI-A datasheet, buy Dahua 50230UNI-A with best price and fast shipping. Free Live Chat are supported.
Dahua 50230UNI-A Specification
Dahua 50230UNI-A Specifications |
|
| Brand | Dahua |
| Model | 50230UNI-A |
| Resolution | 2MP |
| Optical Zoom | 30x |
| Image Sensor | 1/2.8″ CMOS |
| Minimum Illumination | Color: 0.05Lux @ F1.6 |
| Day/Night | ICR |
| Digital Zoom | 16x |
| Pan/Tilt Range | Pan: 0�� to 360��, Tilt: -15�� to 90�� |
| Pan Speed | Configurable, 0.1�� to 300��/s |
| Tilt Speed | Configurable, 0.1�� to 200��/s |
| Compression | H.265, H.264, MJPEG |
| Ingress Protection | IP67 |
| IK Rating | IK10 |
| Power Supply | AC 24V / PoE+ |
| Power Consumption | Max. 13W |
| Operating Temperature | -40��C to +70��C (-40��F to +158��F) |
| Dimensions | ��160 x 295mm |
| Video Frame Rate | 30/25fps@1080P, 30/25fps@720P |
| Audio Input/Output | 1/1 |
| Alarm Input/Output | 2/1 |
