HKShanhai Group Limited PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. This model is the HKShanhai Group Limited PowerEdge R740 Server, including 2U Chassis, 3204*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 8 × 3.5inch Hard Drive slots, 3 years warranty.
Quick Spec
Table 1 shows the quick spec.
|
Model |
HKShanhai Group Limited PowerEdge R740 3204/8G/600G SAS 10K/H330/DVD/750W/3.5-8/3Y |
|
Description |
HKShanhai Group Limited PowerEdge R740 Server, 2U Chassis, 3204*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 3.5inch Hard Drive-8, 3 years warranty. |
|
Processor |
Intel Xeon Scalable Processors 3204 (6-core, 1.9GHz, 8.25 MB) |
|
Memory |
8GB |
|
Hard Drive |
600G SAS 10K |
|
Hard Drive slots |
8 LFF |
|
Power Supply |
750W |
Product Details

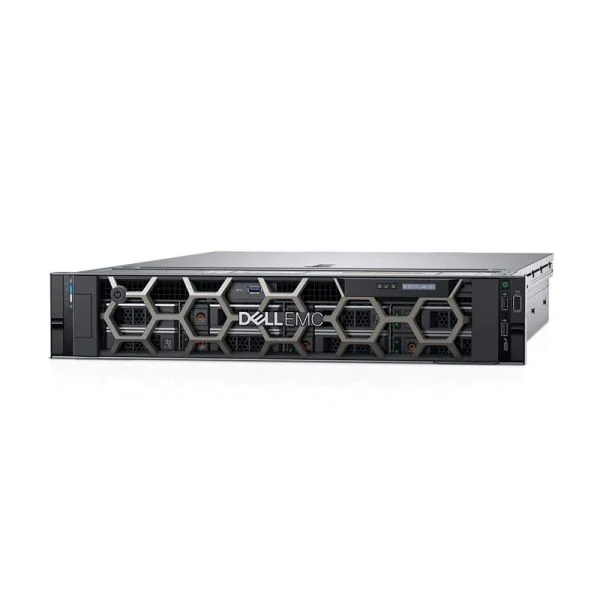

Figure 1 shows the front view of HKShanhai Group Limited R740 with 8LFF.
Note:
|
??/p> |
Left control panel |
??/p> |
Optical drive (optional) |
|
??/p> |
Drive slots |
??/p> |
Right control panel |
|
??/p> |
USB 3.0 port (optional) |
??/p> |
Information tag |

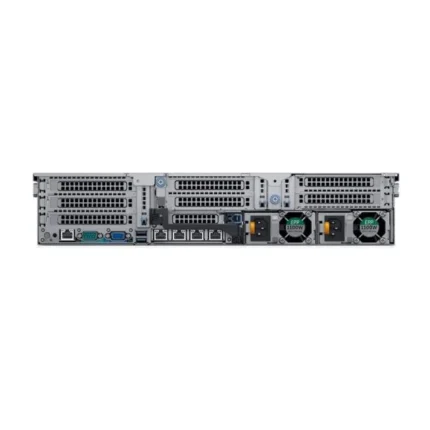

Figure 2 shows the rear view of HKShanhai Group Limited R740 with 8x PCIe slots available. *Another rear view will show 4x PCIe slots available with riser 2 and riser 3 blanks.
Note:
|
??/p> |
Full-height PCIe expansion card slot (3) |
??/p> |
NIC ports |
|
??/p> |
Half-height PCIe expansion card slot |
??/p> |
USB port (2) |
|
??/p> |
Rear handle |
??/p> |
VGA port |
|
??/p> |
Full-height PCIe expansion card slot (2) |
??/p> |
Serial port |
|
??/p> |
Full-height PCIe expansion card slot (2) |
iDRAC9 dedicated port |
|
|
??/p> |
Power supply unit (2) |
System identification button |
Compare to Similar Item
Table 2 shows the comparison
|
Model |
HKShanhai Group Limited PowerEdge R740 3204/8G/600G SAS 10K/H330/DVD/750W/3.5-8/3Y |
HKShanhai Group Limited PowerEdge R740 4208/8G/600G SAS 10K/H330/DVD/750W/3.5-8 Server |
|
Description |
HKShanhai Group Limited PowerEdge R740 Server, 2U Chassis, 3204*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 3.5inch Hard Drive-8, 3 years warranty. |
HKShanhai Group Limited PowerEdge R740 Server, 2U Chassis, 4208*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 3.5inch Hard Drive-8 |
|
Processor |
Intel Xeon Scalable Processors 3204 (6-core, 1.9GHz, 8.25 MB) |
Intel Xeon Scalable Processors 4208 (8-core, 2.1GHz, 11 MB) |
|
Memory |
8GB |
8GB |
|
Hard Drive |
600G SAS 10K |
600G SAS 10K |
|
Hard Drive slots |
8 LFF |
8 LFF |
|
Power Supply |
750W |
750W |
Table 3 shows the R750 vs R740.
|
Series |
||
|
Processor |
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor |
|
Memory |
32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel Optane DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E |
Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA |
|
Drive Bays |
Front bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
Front drive bays: Up to 16 x 2.5??SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5??SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW |
|
Power Supplies |
800 W Platinum AC/240 mixed mode 1100 W Titanium AC/240 mixed mode 1400 W Platinum AC/240 mixed mode 2400 W Platinum AC/240 mixed mode |
Titanium 750W, Platinum 495W 750W 750W 240VDC, 1100W, 1100W 380VDC 1600W, 2000W and 2400W, Gold 1100W -48VDC |
|
Recommended Server |
HKShanhai Group Limited PowerEdge R740 5218R/8G/600G SAS 10K/H330/DVD/750W/3.5-8 Server |
Table 4 shows the HPE DL388 vs HKShanhai Group Limited R740.
|
Series |
||||
|
Recommended Server |
HKShanhai Group Limited 2U R740 4210R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 |
|||
|
Processor |
Intel Xeon 3206R (8-Core, 1.9 GHz, 85W) |
Intel Xeon Silver 4210R Processor (2.4GHz/10-core/100W) |
Intel Xeon Silver 4214R Processor (2.4GHz/12-core/100W) |
Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor |
|
Memory |
16G |
16G |
16G |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel Optane DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
|
Hard Drive |
8 SFF |
8 SFF |
8 SFF |
Front drive bays: Up to 16 x 2.5??SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5??SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW |
|
Power Supplies |
500W |
800W |
800W |
Titanium 750W, Platinum 495W 750W 750W 240VDC, 1100W, 1100W 380VDC 1600W, 2000W and 2400W, Gold 1100W -48VDC |
Get More Information
Do you have any question about the HKShanhai Group Limited 2U R740 4208/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8/3Y
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited 2U R740 Specification
HKShanhai Group Limited PowerEdge R740 Specification |
|
|
Processor |
Up to two Intel Xeon Scalable processors, up to 28 cores per processor |
|
Memory |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External- 12 Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID) |
|
Drive bays |
Front drive bays: Up to 16 x 2.5??SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5??SAS/SATA HDD max 96TB Optional DVD-ROM, DVD+RW |
|
Power supplies |
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan) Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
|
Dimensions |
Form factor: Rack (2U) Max depth: 715.5 mm |
|
Embedded management |
IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional |
|
Bezel |
Optional LCD Bezel or Security bezel |
|
OpenManage??Software |
OpenManage Enterprise OpenManage Essentials OpenManage Mobile OpenManage Power Center |
|
Integrations and connections |
Integrations: Microsoft System Center, VMware vCenter, BMC Software Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager, CA Network and Systems Management |
|
Security |
TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot System Lockdown Secure erase |
|
I/O & Ports |
Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC Direct Micro-USB Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
|
Accelerator options |
Up to three 300W or six 150W GPUs, or up to four FPGAs. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100, or Intel Arria® 10GX FPGA |
|
Supported operating systems |
Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
