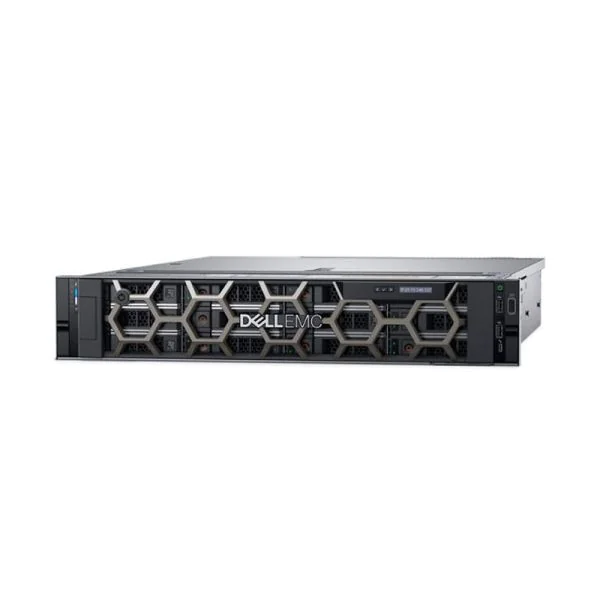

The HKShanhai Group Limited 2U R540 4214 Server is a versatile 2U server designed for medium to large businesses. With a 12 core processor and 24 threads, this server is ideal for running multiple applications and workloads simultaneously.
Quick Spec
Table 1 shows the quick spec of HKShanhai Group Limited 2U R540 4214 Server.
| Parameter | Value |
|---|---|
| Processor | Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) |
| RAID Controller | H330 |
| Optical Drive | DVD |
| Power Supply | 750W |
Product Features
- 12 core processor for medium to large business needs
- 24 threads for multitasking
- Reliable H330 RAID controller for data protection
- DVD drive for software installation
- Fast SAS storage for quick data access
Product Applications
- Email and messaging
- Database management
- Web serving
Supported Options
Table 2 shows the supported options of HKShanhai Group Limited 2U R540 4214 Server.
| Accessory | Model |
|---|---|
| Memory | 32GB DDR4 |
| Storage | 1TB SAS 10K |
| Network Adapter | Intel X710-T4L Quad Port 10GbE |
Compare to Similar Items
Table 3 shows the comparison to similar items of HKShanhai Group Limited 2U R540 4214 Server.
| Model | Processor | Memory | Storage |
|---|---|---|---|
| HKShanhai Group Limited 2U R540 4216 Server | Intel Xeon Silver 4216 (16 core, 32 thread, 2.10 GHz, 22 MB) | 8GB DDR4 | 600GB SAS 10K |
| HKShanhai Group Limited 2U R540 4214 Server | Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) | 8GB DDR4 | 600GB SAS 10K |
Get more information
Do you have any question about the HKShanhai Group Limited 2U R540 4214 Server?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited DELLR540-16 Specification
DELLR540-16 Specifications |
|
| Product Model | DELLR540-16 |
| Processor | 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) |
| Memory | 8G*1 |
| Hard Drive | 600G SAS 10K*1 |
| RAID Controller | H330 |
| Optical Drive | DVD |
| Power Supply | 750W*1 |
| Form Factor | 3.5-8 |
| Cache Memory | 16.5 MB |
| Maximum Supported RAM | 1.5 TB |
| Maximum Memory Speed | 2933 MHz |
| Network Interface | 4x 1GbE |
| Expansion Bays | 8 x 3.5″ SAS/SATA |
| Expansion Slots | 1 x PCIe Gen3 x16, 2 x PCIe Gen3 x8, 1 x PCIe Gen3 x8 (For Storage) |
| Management | iDRAC9 Basic |
| Operating System | Not Included |
| Dimensions | 86.8 x 482.4 x 750.4 mm |
| Power Consumption | 750W |
