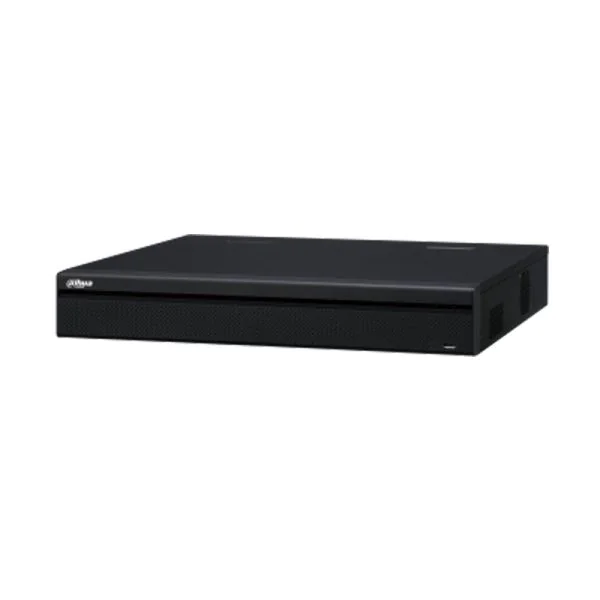

The Dahua XVR5416L-X is a highly versatile 16 Channel Penta-brid 1080P 1.5U Digital Video Recorder. This advanced recording solution supports multiple video formats and features a robust design, making it ideal for a wide range of surveillance needs. Its penta-brid compatibility ensures seamless integration with various camera technologies, providing users with flexibility and reliability.
Quick Spec
| Channels | 16 |
| Resolution | 1080P |
| Form Factor | 1.5U |
| Video Formats | Penta-brid (HDCVI/AHD/TVI/CVBS/IP) |
| Storage Capacity | Up to 10TB |
Product Features
- 16 Channels with support for multiple video formats
- 1.5U rack-mountable design for efficient use of space
- 1080P high-definition recording for clear video capture
- Penta-brid technology: supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Supports up to 10TB of storage for extensive video archiving
Product Applications
- Medium to large-sized businesses requiring reliable video surveillance
- Educational institutions looking to enhance campus security
- Retail stores needing efficient surveillance solutions to monitor activities
Supported Options
| Accessory | Model |
| Hard Drive | Dahua HDD-2TB |
| Power Adapter | Dahua PA-DA-12V |
| Camera | Dahua IPC-HDW1230S |
Compare to Similar Items
| Model | Differences |
| XVR5216AN-X | 16 Channels, 720P resolution |
| XVR5432L-X | 32 Channels, 1080P resolution |
| XVR5116HS-X | 16 Channels, 1080N resolution |
Get more information
For further information about the Dahua XVR5416L-X and its pricing, please contact us via Live Chat or email us at sales@router-switch.com.
Dahua XVR5416L-X Specification
XVR5416L-X Specifications |
|
| Brand | Dahua |
| Model | XVR5416L-X |
| Channels | 16 |
| Type | Penta-brid (HDCVI/AHD/TVI/CVBS/IP) |
| Resolution | 1080P |
| Form Factor | 1.5U |
| Video Compression | H.265+/H.265 |
| Audio Compression | AAC/G.711A |
| Video Output | 1 HDMI, 1 VGA |
| Network Interface | 1 RJ-45 Port (1000M) |
| USB Ports | 2 USB 2.0 |
| HDD | Up to 2 SATA HDDs, up to 10TB capacity |
| Alarm I/O | 16 Channel Input, 6 Channel Output |
| Power Supply | DC12V/4A |
| Dimensions (W x D x H) | 375mm x 327mm x 53mm |
| Operating System | Embedded Linux |
| Operating Temperature | -10C ~ +55C (+14F ~ +131F) |
| Backup Method | USB Device, Network |
| Playback | 16 Channel Synchronous Playback |
| Recording Mode | Manual, Schedule, Motion Detection, Stop |
| Remote Monitoring | Web Viewer, CMS (DSS/PSS) & DMSS |
