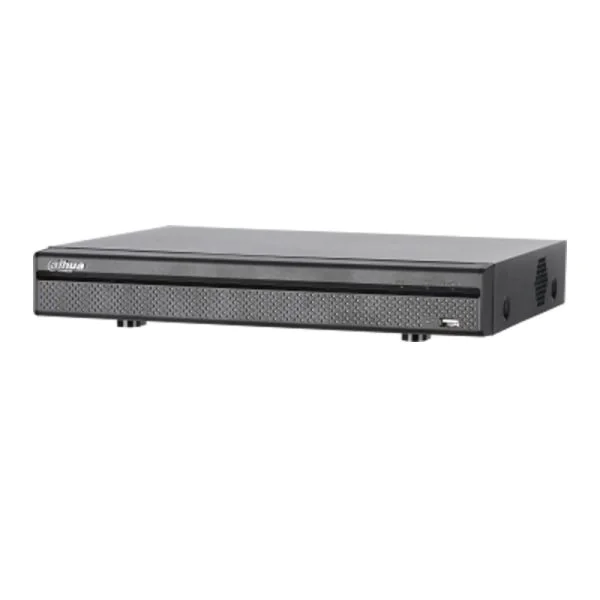

The Dahua XVR5108H-X-8P is an advanced 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder designed for superior surveillance performance. Renowned for its high compatibility, this compact DVR supports multiple technologies, making it a versatile solution for various security needs. Whether for home, business, or industrial use, Dahua’s XVR5108H-X-8P ensures reliable and high-quality video recording with enhanced redundancy and real-time monitoring capabilities.
Quick Spec
| Brand | Dahua |
| Model | XVR5108H-X-8P |
| Channels | 8 |
| Resolution | 1080P |
| Form Factor | Mini 1U |
Product Features
- Supports Penta-brid video input: HDCVI, AHD, TVI, CVBS, and IP.
- Up to 8 channels with simultaneous real-time playback.
- Smart H.265+ compression technology for efficient storage management.
- Automatic channel pair function for efficient setup.
- Integrated PoE with 8 ports, ensuring easy installation.
Product Applications
- Commercial buildings needing extensive and reliable security monitoring.
- Residential properties requiring high-quality, real-time surveillance for protection.
- Industrial sites where integration with existing security systems is necessary.
Supported Options
| Accessory | Model |
| PoE Switch | PFS3010-8GT-96 |
| Storage Expansion | HDD-V1000 |
| Keyboard | NKB1000 |
Compare to Similar Items
| Model | Key Differences |
| XVR5104HS-X1 | 4 channels, lacks PoE ports, smaller capacity |
| XVR5116H-X | 16 channels, larger form factor, increased storage capability |
| XVR5216AN-X | 16 channels, no PoE, advanced AI features |
Get more information
For further details about the Dahua XVR5108H-X-8P, including pricing and availability, please contact us via Live Chat or email us at sales@router-switch.com.
Dahua XVR5108H-X-8P Specification
XVR5108H-X-8P Specifications |
|
| Brand | Dahua |
| Model | XVR5108H-X-8P |
| Product Type | Digital Video Recorder |
| Channels | 8 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Input | 8 BNC Ports |
| Video Output | 1 HDMI, 1 VGA |
| Max Recording Resolution | 1080P |
| Multi-Mode Recording | IP/CVI/TVI/AHD/Analog |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Network Interface | 1 RJ-45 Port (10/100 Mbps) |
| Internal HDD | 2 SATA Ports (Up to 10TB Capacity) |
| USB Interface | 2 USB 2.0 Ports |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (Without HDD) |
| Operating Temperature | -10C ~ +55C (+14F ~ +131F) |
| Dimensions | 260mm x 224.9mm x 47.6mm (10.2″ x 8.9″ x 1.9″) |
| Net Weight | 0.8kg (1.76lb) (Without HDD) |
| Other Features | Pentabrid support, Motion Detection, Email Alerts |
