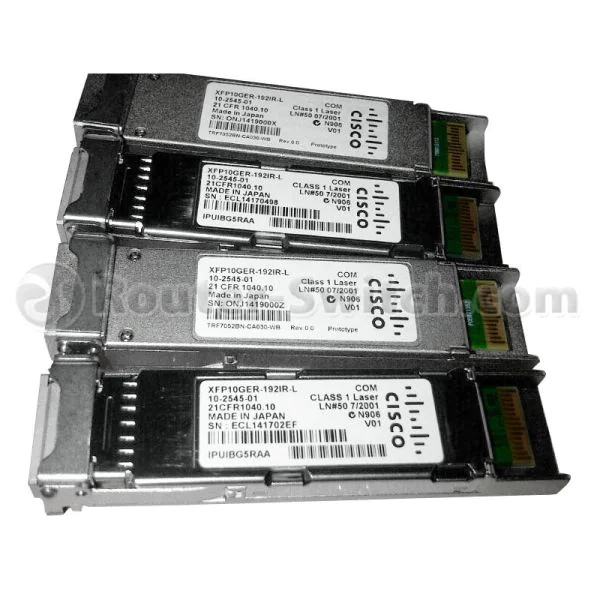

HKShanhai Group Limited XFP10GER-192IR-L Compatible 10GBASE-ER/EW and OC-192/STM-64 IR-2 XFP Transceiver Module (SMF, 1550nm, 40km, LC, DOM).
Main features of the HKShanhai Group Limited XFP Module include:
. Supports 10GBASE Ethernet and OC-192/STM-64 data rates
. Hot-swappable input/output device plugs into a XFP port of a HKShanhai Group Limited Systems router to link the port with the network
. Provides flexibility of interface choice
. Supports pay-as-you-populatemodel
. Supports the digital optical monitoring capability
. Supports the HKShanhai Group Limited quality identification (ID) feature that helps enable a HKShanhai Group Limited switch or router to identify whether the module is a HKShanhai Group Limited certified and tested XFP
. Supports optical interoperability with respective HKShanhai Group Limited 10GBASE XENPAK and X2, and SFP+ modules on the same link
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
XFP10GER-192IR-L |
|
Description |
HKShanhai Group Limited Multirate 10GBASE-ER/-EW and OC-192/STM-64 IR-2 XFP Module for SMF, low power (2.5W) |
|
Operating Temperature Range |
COM |
|
Power Consumption (W) |
2.5 |
Compare to Similar Items
Table 2 shows the comparison ofXFP10GER-192IR-L andXFP-10GER-192IR+.
|
Product Code |
XFP10GER-192IR-L |
|
|
Description |
HKShanhai Group Limited Multirate 10GBASE-ER/-EW and OC-192/STM-64 IR-2 XFP Module for SMF, low power (2.5W) |
HKShanhai Group Limited Multirate 10GBASE-ER/-EW and OC-192/STM-64 IR-2 XFP Module for SMF |
|
Operating Temperature Range |
COM |
COM |
|
Power Consumption (W) |
2.5 |
3.5 |
Get more information
Do you have anyquestion abouttheXFP10GER-192IR-L
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited XFP10GER-192IR-L Specification
XFP10GER-192IR-L Specification |
|
| General | |
| Device Type | XFP transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-ER, 10GBase-EW |
| Data Link Protocol | SONET/SDH, 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1550 nm |
| Line Rate | OC-192/STM-64 |
| Max Transfer Distance | 24.9 miles |
| Features | PoS (Packet over SONET) |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-ER/10GBase-EW – LC single-mode x 2 |
| Compatible Slots | 1 x XFP |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 2.8 in |
| Height | 0.4 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Compatibility Information | |
| Designed For | HKShanhai Group Limited 1-Port 10GE XFP Interface Module, CRS-1 Series 4-Port 10GE LAN/WAN-PHY Interface Module, CRS-1 Series 8-port 10GbE LAN/WAN-PHY Interface Module, CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module, CRS-3 20-port 10GbE LAN/WAN-PHY Interface Module ¦ HKShanhai Group Limited Ethernet Services Plus Extended Transport 20G Line Card, 40G Line Card ¦ HKShanhai Group Limited Ethernet Services Plus Transport Extended Combination 20G Line Card for Carrier Ethernet, Extended Combination 20G Line Card with DFC3CXL for Carrier Ethernet, Extended Combination 40G Line Card for Carrier Ethernet, Line Card (LAN/WAN PHY, OTN/G.709) |
