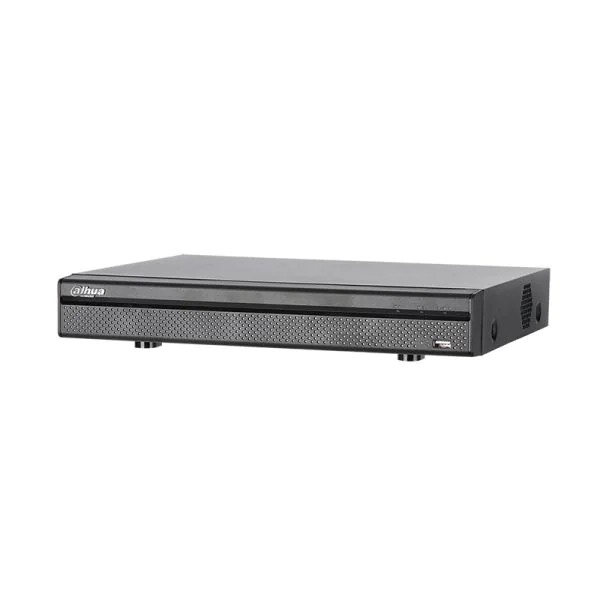

The Dahua X51A2E is a cutting-edge surveillance solution that offers 1080p resolution and H.265 video compression technology. Designed to be a reliable, high-performance option, this 8-channel Mini 1U Penta-brid DVR adapts to various security applications, providing exceptional image quality and storage efficiency. Its compact form factor makes it ideal for small to medium-sized surveillance setups.
Quick Spec
| Brand | Dahua |
| Model | X51A2E |
| Resolution | 1080p |
| Compression | H.265 |
| Channels | 8 |
Product Features
- Supports 8 channels of video input
- High efficiency H.265 compression technology
- 1080p full HD recording
- Penta-brid compatibility (HDCVI/AHD/TVI/CVBS/IP)
- Compact Mini 1U design
Product Applications
- Small business surveillance with multiple camera setups
- Home security systems requiring high-definition recording
- Retail store monitoring with efficient storage management
Supported Options
| Accessory | Model |
| External Hard Drive | HDD-1TB-DH |
| USB Backup Device | USB-BKP-DH |
| IR Remote Control | IR-REM-DH |
Compare to Similar Items
| Model | Differences |
| Dahua X72A2E | 16 channels, 4K recording capability |
| Dahua X41A1E | 4 channels, supports only H.264 compression |
| Dahua X81B5E | 16 channels, AI features, 1080p resolution |
Get more information
For additional details and to check the price and availability of the Dahua X51A2E, please contact us via Live Chat or email at sales@router-switch.com. Check ‘Dahua X51A2E’ price and ‘X51A2E datasheet’, buy ‘Dahua X51A2E Mini 1U Penta-brid’ with the best price and fast shipping. Free Live Chat is supported.
Dahua X51A2E Specification
X51A2E Specifications |
|
| Brand | Dahua |
| Model | X51A2E |
| Resolution | 1080p |
| Video Compression | H.265 |
| Channels | 8 |
| Form Factor | Mini 1U |
| Type | Penta-brid |
| Interface | BNC |
| HDMI Output | 1 |
| VGA Output | 1 |
| Audio In/Out | 1/1 |
| Network Interface | 1 RJ-45 Port (100M) |
| USB Ports | 2 (1 front, 1 rear) |
| Internal HDD | 1 SATA Port, up to 10TB |
| Operating System | Embedded Linux |
| Power Supply | DC 12V/2A |
| Power Consumption | <6W (without HDD) |
| Operating Temperature | -10��C ~ +55��C (+14��F ~ +131��F) |
| Dimensions (W x D x H) | 260mm x 222mm x 45mm |
| Weight (without HDD) | 1.0 kg |
| RS-485 Port | 1 port, for PTZ control |
| Recording Mode | Manual, Schedule, Motion Detection, Alarm |
