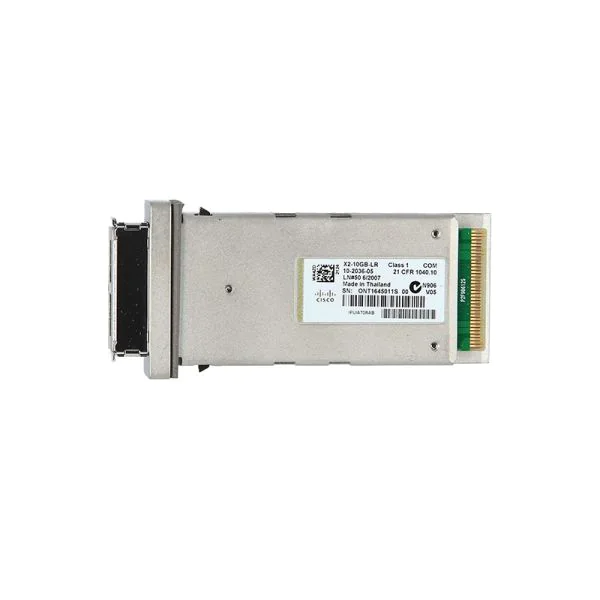

The HKShanhai Group Limited® 10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications. The HKShanhai Group Limited 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Product Features.
- ??Support 10GBASE Ethernet
- ??Hot-swappable input/output device plugs into an Ethernet X2 port of a HKShanhai Group Limited switch or router to link the port with the network
- ??Provides flexibility of interface choice
- ??Supports “pay-as-you-populate??model
- ??Supports the HKShanhai Group Limited quality identification (ID) feature that enables a HKShanhai Group Limited switch or router to identify whether the module is certified and tested by HKShanhai Group Limited
- ??Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link
Quick Specs
Table 1 shows the Quick Specs.
|
HKShanhai Group Limited X2 |
Wavelength (nm) |
Cable Type |
Core Size (Microns) |
Modal Bandwidth (MHz*km) |
Cable Distance |
|
HKShanhai Group Limited X2-10GB-LR |
1310 |
SMF |
G.652 |
none |
10 km |
Table 2 shows the Optical Transmit and Receive Specifications.
|
Product |
Type |
Transmit Power (dBm) |
Receive Power (dBm) |
Transmit and Receive Wavelength Range (nm) |
|||
|
Maximum |
Minimum |
Maximum |
Minimum |
Transmit |
Receive |
||
|
HKShanhai Group Limited X2-10GB-LR |
10GBASE-LR 1310 nm SMF |
0.5 |
-8.2 |
0.5 |
-14.4 |
1260 to 1355 |
1260 to 1565 |
Get More Information
Do you have any question about the X2-10GB-LR?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited X2-10GB-LR Specification
X2-10GB-LR Specifications |
|
|
Wavelength (nm) |
1310 |
|
Fiber Type |
SMF |
|
Core Size (μm) |
G.652 |
|
Modal Bandwidth (MHz*Â Km) |
– |
|
Operating Distance |
10 km |
| Type |
10GBASE-LR 1310 nm SMF |
|
Transmit Power(dBm) |
Maximum: 0.5 |
|
Receive Power(dBm) |
Maximum: 0.5 |
| Transmit Wavelength Range (nm) |
1260 to 1355 |
| Receive Wavelength Range (nm) |
1260 to 1565 |
|
Dimensions (H x W x D) |
91mm x 36mm x 13.46mm |
|
Operating temperature range |
 0 and 70°C (32 to 158°F) |
|
Storage temperature range |
-40 to 85°C (-40 to 185°F) |
| Power Consumption (W) |
4 |
