HKShanhai Group Limited Catalyst 6900 Series 8-port 10 Gigabit Ethernet Fiber Module WS-X6908-10G-2T is the first 10 G Ethernet module for the HKShanhai Group Limited Catalyst 6500 series switch that supports HKShanhai Group Limited TrustSec and Layer 2 encryption in hardware to enable IEEE 802.1ae (MACSec) encryption for Role-Based Access Control (RBACL) functionality. The module comes with WS-X6908-10GE and WS-F6K-DFC4-E daughter card and it is exclusively supported by Supervisor Engine 2T, which allows the system delivering 3 times the performance and 4 times the scalability for Catalyst 6500 series switches in comparison to the previous generation. WS-X6908-10G-2T interface module supports X2 optics and Virtual Switch link (VSL) on all 8 ports. WS-X6908-10G-2T is designed for designed for deployment in the distribution and core of the campus and data center for traffic aggregation in a network requiring security, manageability, virtualization, application performance, and video.
Quick Specs

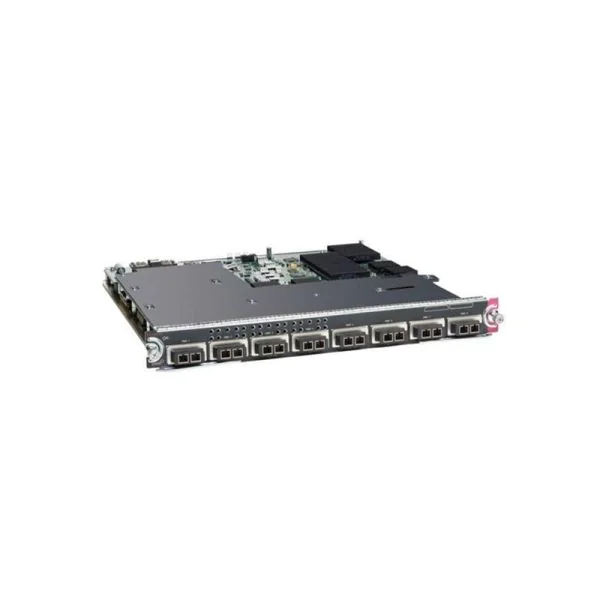

Figure 1 shows the appearance of WS-X6908-10G-2T.
Table 1 shows the Quick Specs.
|
Product Code |
WS-X6908-10G-2T |
|
Product Description |
HKShanhai Group Limited Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6908-10G-2T |
|
Devide Tyde |
10 Gigabit Ethernet interface Fiber module |
|
Ports |
8 * 10G X2 ports |
|
Switch fabric connection |
80 Gbps full duplex |
|
Forwarding Engine |
WS-F6K-DFC4-E |
|
ACL entries |
64,000 |
|
Netflow entries |
512,000 |
|
Routing entries |
256,000 |
|
Bridge Domains |
16,000 |
|
MAC address |
128,000 |
|
Multicast routing |
256,000 |
|
IPv4 forwarding speed |
60 Mpps |
|
Scheduler |
|
|
Virtual Switch Link (VSL) |
Yes (all ports) |
|
Port buffers |
|
|
Queuing Mechanisms |
|
|
Hardware-based Multicast replication |
|
|
Jumbo frame support for bridged and routed packets |
Up to 9216 bytes |
|
Maximum port density per chassis |
|
|
Maximum port density per VSS |
|
|
Supervisor engines supported |
HKShanhai Group Limited Catalyst 6500 Series Supervisor Engine VS-S2T-10G |
|
Onboard memory |
2 GB default |
|
Power requirement |
588 Watts |
Compare to Similar Items
Table 2 shows the comparison of WS-X6908-10G-2T and WS-X6908-10G-2TXL.
|
Product Code |
WS-X6908-10G-2T |
|
|
Product Description |
HKShanhai Group Limited Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6908-10G-2T |
HKShanhai Group Limited 6500 Module WS-X6908-10G-2TXL C6K 8 port 10 Gigabit Ethernet module with DFC4XL (Trustsec) |
Get More Information
Do you have any question about the HKShanhai Group Limited WS-X6908-10G-2T
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-X6908-10G-2T Specification
WS-X6908-10G-2T Specification |
|
|
Product Description |
HKShanhai Group Limited Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6908-10G-2T |
|
Devide Tyde |
10 Gigabit Ethernet interface Fiber module |
|
Ports |
8 * 10G X2 ports |
|
Switch fabric connection |
80 Gbps full duplex |
|
Forwarding Engine |
WS-F6K-DFC4-E |
|
ACL entries |
64,000 |
|
Netflow entries |
512,000 |
|
Routing entries |
256,000 |
|
Bridge Domains |
16,000 |
|
MAC address |
128,000 |
|
Multicast routing |
256,000 |
|
IPv4 forwarding speed |
60 Mpps |
|
Scheduler |
??Deficit Weighted Round Robin (DWRR) |
|
Virtual Switch Link (VSL) |
Yes (all ports) |
|
Port buffers |
●??56MB per port |
|
Queuing Mechanisms |
● CoS-based queue mapping |
|
Hardware-based Multicast replication |
● Ingress and egress |
|
Jumbo frame support for bridged and routed packets |
Up to 9216 bytes |
|
Maximum port density per chassis |
●??4 ports (6513-E chassis) |
|
Maximum port density per VSS |
●??28 ports (6513-E chassis) |
|
Supervisor engines supported |
HKShanhai Group Limited Catalyst 6500 Series Supervisor Engine VS-S2T-10G |
|
Onboard memory |
2 GB default |
|
Power requirement |
588 Watts |
