WS-X6848-TX-2TXL is HKShanhai Group Limited Catalyst 6800-series interface module for 6500 E-series switch, the module comes with 48 * 10/100/1000 Gigabit Ethernet copper ports and WS-F6K-DFC4-EXL daughter card. WS-X6848-TX-2TXL is designed for high performance Enterprise and Service Provider distribution, core layers, data-center, Web-hosting and Metro Ethernet applications to provide Gigabit Ethernet forwarding using twisted pair cabling.WS-X6848-TX-2TXL interface module is compatible only with Supervisor 2T, integrates with DFC4XL daughter card to significantly improved the centralized forwarding performance of a system by utilizing hardware-based module.
Quick Specs

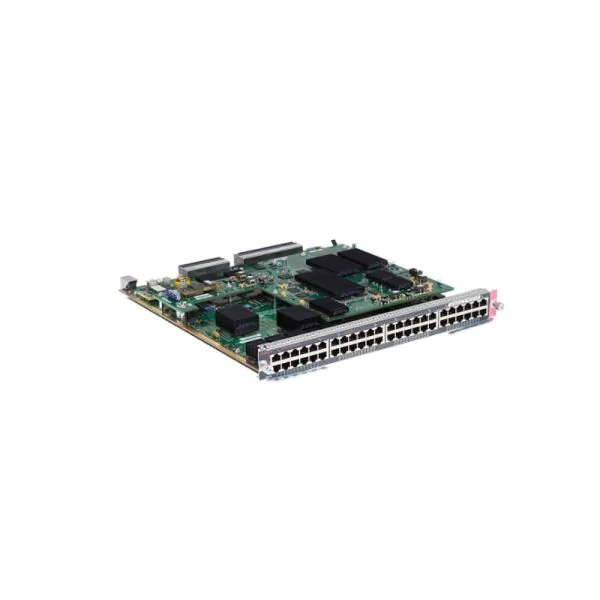

Figure 1 shows the appearance of WS-X6848-TX-2TXL.
Table 1 shows the Quick Specs.
|
Product |
Transceiver Type |
Ports/Interface/ |
Port Density/ |
Maximum Frame Size |
Queues per Port (Tx = Transmit, Rx = Receive), |
Scheduler |
Buffer Size per Port |
Onboard Memory |
|
WS-X6848-TX-2T and WS-X6848-TX-2TXL |
RJ-45 |
48-port, RJ-45, 100m, Category 5 cable |
|
Up to 9216 bytes/frame |
|
DWRR |
|
1GB Default |
Get More Information
Do you have any question about the HKShanhai Group Limited WS-X6848-TX-2TXL
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-X6848-TX-2TXL Specification
6800 Series 10 Gigabit Ethernet modules Specifications |
|
|
Standard protocols |
IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEEÂ 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an |
|
Physical specifications |
  Occupies one slot in the HKShanhai Group Limited Catalyst 6500 E-Series chassis   Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)   Weight: ◦   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2 |
|
Environmental conditions |
Operating temperature:   Agency-certified for operation: 32 to 104°F (0 to 40°C)   Design and tested for operation 32 to 130°F (0 to 55°C)   Storage temperature: -40 to 167°F (-40 to 75°C)   Relative humidity: 10 to 90 percent, noncondensing Operating altitude:   Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)   Designed and tested for operation -500 to 10000 ft (-150 to 3000m) |
|
Regulatory compliance |
6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMCÂ and safety standards: EMC Standards: Â Â FCC Part 15 (CFR 47) Class A Â Â ICES-003 Class A Â Â VCCI Class A Â Â EN55022 Class A Â Â EN55024 Â Â CISPR24 Â Â CISPR 22 Class A Â Â AS/NZS CISPR 22 Class A Â Â ETS 300 386 Â Â KN 22 Class A Â Â EN 50082-1 Â Â EN61000-3-2 Â Â EN61000-3-3 Â Â EN61000-6-1 Â Â CNS13438 Class A Â Â KN6100 -4 Series Safety Standards: Â Â UL 60950-1 Â Â CAN/CSA C22.2 No. 60950 Â Â EN 60950-1 Â Â IEC 60950-1 Â Â AS/NZS 60950-1 Â Â IEC 60825 Class 1 Â Â EN 60825 Class 1 Â Â 21CFR 1040 |
|
NEBS criteria levels |
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
|
ETSI |
  ETS 300 019-2-1, Class 1.1 Storage   ETS 300 019-2-2, Class 2.1 and 2.2 Transportation   ETS 300 019-2-3, Class 3.1E Stationary Use |
|
Network management |
  ETHERLIKE-MIB (RFC 1643)   IF-MIB (RFC 1573)   Bridge MIB (RFC 1493)   CISCO-STACK-MIB   CISCO-VTP-MIB   CISCO-CDP-MIB   RMON MIB (RFC 1757)   CISCO-PAGP-MIB   CISCO-STP-EXTENSIONS-MIB   CISCO-VLAN-BRIDGE-MIB   CISCO-VLAN-MEMBERSHIP-MIB   ENTITY-MIB (RFC 2037)   HC-RMON   RFC1213-MIB (MIB-II)   SMON-MIB |
|
Power requirements |
  WS-X6816-10G-2T: 488.5 Watts   WS-X6816-10G-2TXL: 503.5 Watts   WS-X6816-10T-2T: 514.96 Watts   WS-X6816-10T-2TXL: 529.96 Watts |
|
Indicators |
  Status: green (operational), red (faulty), and orange (module booting)   Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) |
