WS-X6848-SFP-2T is integrated with 48-port SFP fiber Gigabit Ethernet interface module with WS-F6K-DFC4-E daughter card for 6500 E-series with supervisor 2T only. Equipped with WS-F6K-DFC4-E daughter card, WS-X6848-SFP-2T ensures to deliver optimal performance up to a sustained 60Mpps for layer 2, IPV4 and MPLS forwarding, and makes this module ideally suited for high performance enterprise, Service provider distribution, core layer, data-center and Metro Ethernet applications.
Quick Specs

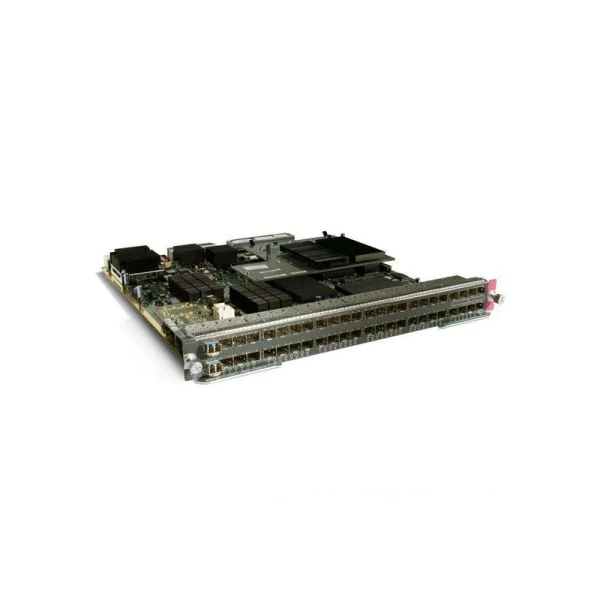

Figure 1 shows the appearance of WS-X6848-SFP-2T.
Table 1 shows the Quick Specs.
|
Product |
Transceiver Type |
Ports/Interface/ |
Port Density/ |
Maximum Frame Size |
Queues per Port (Tx = Transmit, Rx = Receive), |
Scheduler |
Buffer Size per Port |
Onboard Memory |
|
WS-X6848-SFP-2T and WS-X6848-SFP-2TXL |
Small Form-factor Pluggable (SFP) |
48 port; 1000BASE-SX, LX/LH, -ZX, -T; 1000BASE-CWDM; LC connecter |
528 ports/6513E; 384 ports/6509E |
Up to 9216 bytes/frame |
Tx-1p3q8T; Rx-2q8T |
Deficit Weighted Round Robin (DWRR) |
Rx-166KB; Tx-1.17MB |
1GB Default |
Compare to Similar Items
Table 2 shows the comparison of WS-X6848-SFP-2T and WS-X6824-SFP-2T.
|
Product Code |
WS-X6848-SFP-2T |
|
|
Description |
6800 Series 24-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 & DFC4XL |
6800 Series 48-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 & DFC4XL |
Get More Information
Do you have any question about the HKShanhai Group Limited WS-X6848-SFP-2T?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-X6848-SFP-2T Specification
WS-X6848-SFP-2T Specifications |
|
|
Standard protocols |
● IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, and IEEE 802.3ad,
● ??000BASE-T, 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
|
|
Physical specifications |
● Occupies one slot in the HKShanhai Group Limited Catalyst 6500 E-Series chassis ● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) ● Weight: ◦ WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2 |
|
Environmental conditions |
Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: -500 to 6500 ft (-150 to 2000m) ● Designed and tested for operation -500 to 10000 ft (-150 to 3000m) |
|
Regulatory compliance |
6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN 50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● CNS13438 Class A ● KN6100 -4 Series Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● IEC 60825 Class 1 ● EN 60825 Class 1 ● ??1CFR 1040 |
|
NEBS criteria levels |
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
|
ETSI |
● ETS 300 019-2-1, Class 1.1 Storage ● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation ● ETS 300 019-2-3, Class 3.1E Stationary Use |
|
Network management |
● ETHERLIKE-MIB (RFC 1643) ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB |
|
Power requirements |
● WS-X6816-10G-2T: 488.5 Watts ● WS-X6816-10G-2TXL: 503.5 Watts ● WS-X6816-10T-2T: 514.96 Watts ● WS-X6816-10T-2TXL: 529.96 Watts |
|
Indicators |
● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) |
