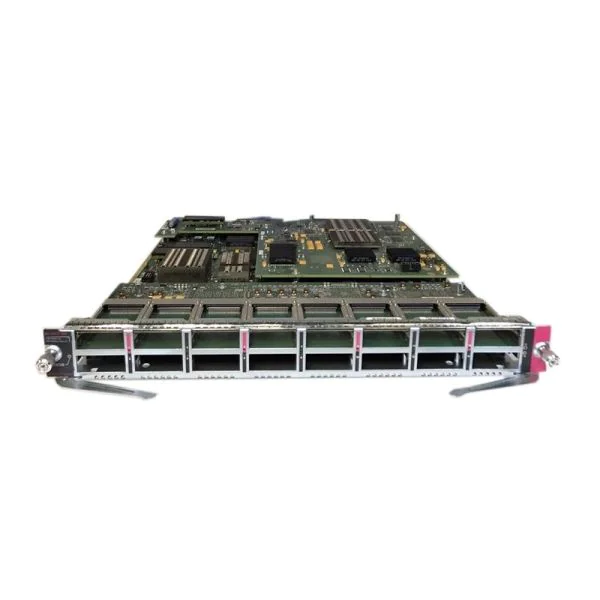

WS-X6816-10G-2TXL, HKShanhai Group Limited Catalyst 6500 Switch Module, 16x10GE ports/DFC4XL onboard/Hot-swappable

6800 Series 10 Gigabit Ethernet modules Specifications

Standard protocols

IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an

Physical specifications

●  Occupies one slot in the HKShanhai Group Limited Catalyst 6500 E-Series chassis

●  Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)

●  Weight:

◦   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2

Environmental conditions

Operating temperature:

●  Agency-certified for operation: 32 to 104°F (0 to 40°C)

●  Design and tested for operation 32 to 130°F (0 to 55°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90 percent, noncondensing

Operating altitude:

●  Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)

●  Designed and tested for operation -500 to 10000 ft (-150 to 3000m)

Regulatory compliance

6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards:

EMC Standards:

●  FCC Part 15 (CFR 47) Class A

●  ICES-003 Class A

●  VCCI Class A

●  EN55022 Class A

●  EN55024

●  CISPR24

●  CISPR 22 Class A

●  AS/NZS CISPR 22 Class A

●  ETS 300 386

●  KN 22 Class A

●  EN 50082-1

●  EN61000-3-2

●  EN61000-3-3

●  EN61000-6-1

●  CNS13438 Class A

●  KN6100 -4 Series

Safety Standards:

●  UL 60950-1

●  CAN/CSA C22.2 No. 60950

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950-1

●  IEC 60825 Class 1

●  EN 60825 Class 1

● ??1CFR 1040

NEBS criteria levels

SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)

ETSI

●  ETS 300 019-2-1, Class 1.1 Storage

●  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation

●  ETS 300 019-2-3, Class 3.1E Stationary Use

Network management

●  ETHERLIKE-MIB (RFC 1643)

●  IF-MIB (RFC 1573)

●  Bridge MIB (RFC 1493)

●  CISCO-STACK-MIB

●  CISCO-VTP-MIB

●  CISCO-CDP-MIB

●  RMON MIB (RFC 1757)

●  CISCO-PAGP-MIB

●  CISCO-STP-EXTENSIONS-MIB

●  CISCO-VLAN-BRIDGE-MIB

●  CISCO-VLAN-MEMBERSHIP-MIB

●  ENTITY-MIB (RFC 2037)

●  HC-RMON

●  RFC1213-MIB (MIB-II)

●  SMON-MIB

Power requirements

●  WS-X6816-10G-2T: 488.5 Watts

●  WS-X6816-10G-2TXL: 503.5 Watts

●  WS-X6816-10T-2T: 514.96 Watts

●  WS-X6816-10T-2TXL: 529.96 Watts

Indicators

●  Status: green (operational), red (faulty), and orange (module booting)

●  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
