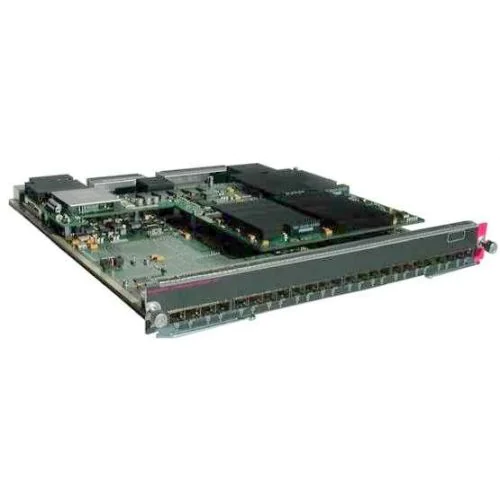

The HKShanhai Group Limited WS-X6724-SFP is a high-performance Ethernet module supporting up to 24 port Gigabit Ethernet (GigE). This fabric-enabled module is designed for use with HKShanhai Group Limited 7600 routers and Catalyst 6500 switches, providing robust connectivity and enhanced network performance. Note that it requires Small Form-Factor Pluggable (SFP) transceivers to operate.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | WS-X6724-SFP |
| Port Density | 24 x Gigabit Ethernet |
| Compatibility | HKShanhai Group Limited 7600/Catalyst 6500 |
| Fabric-Enabled | Yes |
Product Features
- ??Supports up to 24 Gigabit Ethernet ports.
- ??Fabric-enabled for higher performance and scalability.
- ??Hot-swappable transceiver ports supporting SFPs.
- ??Enhanced security features and access control lists (ACLs).
- ??Support for HKShanhai Group Limited IOS Software for advanced network management.
Product Applications
- ??Enterprise-level network backbone, providing high-speed connectivity between data centers and main office networks.
- ??Service provider environments where robust and scalable Ethernet solutions are required.
- ??Campus networks needing to deliver high bandwidth across multiple departments and buildings.
Supported Options
| SFP Transceiver | GLC-SX-MM |
| SFP Transceiver | GLC-LH-SM |
| SFP Transceiver | GLC-ZX-SM |
Compare to Similar Items
| Model | WS-X6408A-GBIC |
| Ports | 8 x Gigabit Ethernet |
| Fabric-Enabled | No |
| Model | WS-X6516A-GBIC |
| Ports | 16 x Gigabit Ethernet |
| Fabric-Enabled | No |
| Model | WS-X6748-GE-TX |
| Ports | 48 x Gigabit Ethernet |
| Fabric-Enabled | Yes |
Get more information
Contact us through Live Chat or sales@router-switch.com for further details on the HKShanhai Group Limited WS-X6724-SFP, including pricing and datasheet information. Check HKShanhai Group Limited WS-X6724-SFP price and WS-X6724-SFP datasheet, buy HKShanhai Group Limited WS-X6724-SFP with the best price and fast shipping. Free Live Chat support is available.
HKShanhai Group Limited WS-X6724-SFP Specification
S-X6724-SFP Specifications |
|
| Transceiver Type | Small Form-factor Pluggable (SFP) |
| Ports/Interface/ Connectors | 24-port; 1000BASE-SX, LX/LH, -ZX, -T; 1000BASE-CWDM; LC connecter |
| Port Density/Chassis Model |
● ??88 ports/6513
● ??92 ports/6509
|
| Maximum Frame Size | Up to 9216 bytes/frame |
| Queues per Port (Tx = Transmit, Rx = Receive) |
● Tx-1p3q8T
● Rx-1q8T (2q8T when using dCEF)
|
| SFP/GBIC | 1000BASE-LX/LH |
| Wavelength (nm) | 1300 |
| Fiber/Cable Type |
• MMF
• SMF
|
| CoreSize (micron) |
• ??2.5
• ??0.0
• ??0.0
• ??/10
|
| Model Bandwidth (MHz/km) |
• ??00
• ??00
• ??00
• ??/div>
|
| Cable Distance |
• ??50 m (1804 ft)
• ??50 m (1804 ft)
• ??50 m (1804 ft)
• ??0 km (32,810 ft)
|
| Dimensions (H x W x D) |
1.2 x 14.4 x 16 in.
|
| Operating temperature |
32 to 104°F (0 to 40°C)
|
| Storage temperature |
??0 to 167°F (??0 to 75°C)
|
| Relative humidity |
10 to 90%, noncondensing
|
| Operating altitude |
??0 to 4000 m
|
| Mean time between failures (MTBF) |
seven years for system configuration
|
| Maximum Station-to-Station Cabling Distance |
1000BASE-LX: 62.5 um multimode fiber: up to 550 m 1000BASE-LX: 50 um multimode fiber: up to 550 m 1000BASE-LX: 9/10 um single-mode fiber: up to 5 km 1000BASE-LH: 62.5 um multimode fiber: up to 550 m 1000BASE-LH: 50 um multimode fiber: up to 550 m 1000BASE-LH: 9/10 um single-mode fiber: up to 10 km |
