WS-X4606-X2-E is the HKShanhai Group Limited catalyst WS-X4606-X2-E line-card. It is designed for high-speed backbone and switch-to-switch applications. Integrated 6 ports 10GB X2 or 12 ports 1 GE SFP with TwinGig Converter Module, the ports can be used interchangeably as Gigabit Ethernet and 10 Gigabit Ethernet to support phased migration from Gigabit Ethernet to 10 Gigabit Ethernet. This WS-X4606-X2-E is similar with the WS-X4606-X2-E=. The WS-X4606-X2-E= is a spare one.
Quick Specs

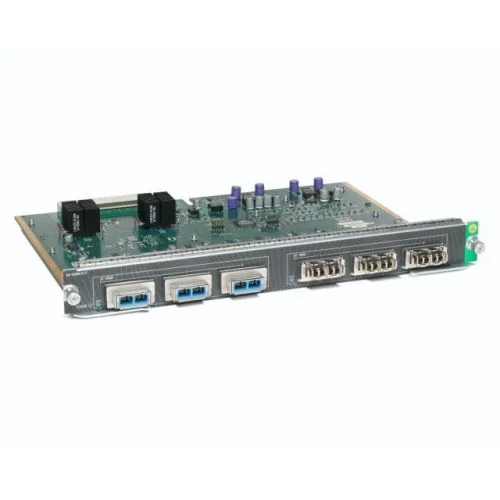

Figure 1 shows the appearance of WS-X4606-X2-E.
Table 1 shows the Quick Specs.
|
Product Code |
WS-X4606-X2-E |
|
Line-Card Type |
HKShanhai Group Limited Catalyst 4500 46xx ESeries Line Cards |
|
Number of Ports |
6 |
|
Port Speed |
10GBASE-X |
|
Per-Slot Bandwidth |
24 Gbps |
|
Chassis Support |
HKShanhai Group Limited Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, and 4510R+E1 |
|
Supervisor Support |
Supervisor Engine 8-E, Supervisor Engine 8L-E, Supervisor Engine 7-E, Supervisor Engine 7L-E, Supervisor Engine 6-E, Supervisor Engine 6L-E |
|
per-slot capacity |
24 gigabits |
|
Modules |
·10GBASE-X (X2) and 1GBASE-X (SFP) ·Up to 6 ports 10GE X2 or 12 ports GE SFP using TwinGig Converter Module ·TwinGig modules must be used in groups of three: ports 1-3 or ports 4-6 |
|
HKShanhai Group Limited IOS Software |
HKShanhai Group Limited IOS Software Release 12.2(40)SG or later |
|
Enterprise and commercial |
designed for high-speed backbone and switch-to-switch applications |
|
Service provider |
10GE/GE mix aggregation for DSLAM/PON/mobile data backhaul |
|
L2-4 Jumbo Frame support |
up to 9216 bytes |
|
Max Rated Power (W) |
50 |
|
Rated MTBF (Hours) |
535,717 |
|
Package weight(KG) |
7.1800 |
·All power numbers shown in Table 1 are maximum values recommended for facility power and cooling capacity planning. These figures are not indicative of the actual power draw during operation. Typical power draw is about 20 percent lower than the maximum value shown.
Get more information
Do you have any question about the WS-X4606-X2-E
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-X4606-X2-E Specification
WS-X4606-X2-E Specifications |
|
|
Port Information |
|
|
Type |
E-Series 10 Gigabit Ethernet Line Cards |
|
Number of Ports |
6 |
|
Port Speed |
10GBASE-X |
|
Port Type |
X2 or SFP with TwinGig Converter Module |
|
Wire Rate |
2.5-to-1 with X2 1:1 with SFP |
|
Feature |
|
|
Standards |
● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● ??000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM |
|
EtherChannel Technology |
● Gigabit EtherChannel: All 1000 Mbps ports ● ??0 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes |
|
Physical Dimensions |
● Occupies one slot in the HKShanhai Group Limited Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm) |
|
Environmental Conditions |
● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m |
|
Safety Conditions |
Fiber optic lasers: Class 1 laser products |
|
Safety Certifications |
● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11 |
|
Electromagnetic Emissions Certifications |
● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4 |
|
ROHS Compliance |
ROHS5 |
|
Power and MTBF Information |
|
|
Max Rated Power (W) |
50 |
|
Rated MTBF (Hours) |
535,717 |
