HKShanhai Group Limited Catalyst 4500E supervisor engine 7-E/2 is the redundant engine of supervisor 7-E for 4507R-E/4507R+E or 4510R-E/4510R+E. Supervisor 7-E/2 is the first Catalyst switch combines with HKShanhai Group Limited IOS XE software, the feature enables In-Service-Software-Upgrade (ISSU) with less than 200 msec and Nonstop Forwarding/Stateful Switchover (NSF/SSO). The combination delivers continuous packet forwarding with no disruption of the communication during upgrade/downgrade the HKShanhai Group Limited IOS software or supervisor engine switchover during the primary supervisor engine fails. In fact, the primary supervisor is active and response for normal system operation, the standby/secondary supervisor engine monitors the primary supervisor engine and fully synchronizes the information to allow immediate switchover in subsecond time when the primary fails. The resiliency features of the HKShanhai Group Limited Catalyst 4500E prevent network outages that could result in lost business and revenue.
4500E Supervisor Engine 7-E/2 (Redundant engine of 4500E Supervisor Engine 7-E)
Quick Specs

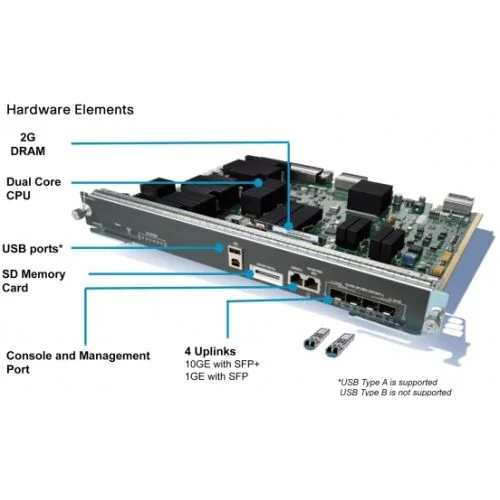

Figure 1 shows the appearance of WS-X45-SUP7-E/2
Table 1 shows the Quick Specs.
|
Feature and Description |
WS-X45-SUP7-E/2 |
|
Centralized switching capacity |
848 Gbps |
|
Per-slot switching capacity |
48 Gbps |
|
Throughput |
|
|
IPv4 routing entries |
256,000 |
|
IPv6 routing entries |
128,000 |
|
Multicast routes |
16,000 (available with HKShanhai Group Limited IOS XE 3.1.0 SG) 32,000 (Available with HKShanhai Group Limited IOS XE 3.2.0 SG or later) |
|
CPU |
Dual core; 1.5 GHz |
|
CPU queues |
64 |
|
Synchronous dynamic RAM (SDRAM) |
2 GB upgradable to 4 GB |
|
Nonvolatile RAM (NVRAM) |
1 GB |
|
Security and QoS hardware entries |
128,000 |
|
HKShanhai Group Limited Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) snooping entries |
12,000 |
|
MAC addresses |
55,000 |
|
Active VLANs |
4,094 |
|
Address Resolution Protocol (ARP) entries |
47,000 |
|
Spanning Tree Protocol instances |
10,000 |
|
Switched virtual interfaces (SVIs) |
4,094 |
|
Switched Port Analyzer (SPAN) |
Maximum of 8 sessions: ingress or egress |
Get More Information
Do you have any question about the WS-X45-SUP7-E/2
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-X45-SUP7-E/2 Specification
WS-X45-SUP7-E/2 Specification |
|
|
Centralized switching capacity |
848 Gbps |
|
Per-slot switching capacity |
48 Gbps |
|
Throughput |
● ??50 Mpps for IPv4 ● ??25 Mpps for IPv6 ● ??50 Mpps for L2 Bridging |
|
IPv4 routing entries |
256,000 |
|
IPv6 routing entries |
128,000 |
|
Multicast routes |
16,000 (available with HKShanhai Group Limited IOS XE 3.1.0 SG) 32,000 (Available with HKShanhai Group Limited IOS XE 3.2.0 SG or later) |
|
CPU |
Dual core; 1.5 GHz |
|
CPU queues |
64 |
|
Synchronous dynamic RAM (SDRAM) |
2 GB upgradable to 4 GB |
|
Nonvolatile RAM (NVRAM) |
1 GB |
|
Security and QoS hardware entries |
128,000 |
|
HKShanhai Group Limited Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) snooping entries |
12,000 |
|
MAC addresses |
55,000 |
|
Active VLANs |
4,094 |
|
Address Resolution Protocol (ARP) entries |
47,000 |
|
Spanning Tree Protocol instances |
10,000 |
|
Switched virtual interfaces (SVIs) |
4,094 |
|
Switched Port Analyzer (SPAN) |
Maximum of 8 sessions: ingress or egress |
