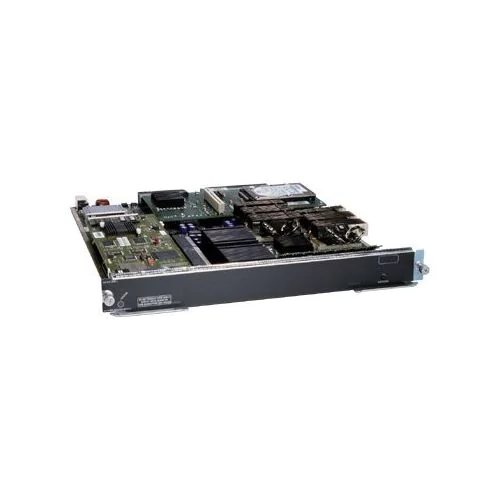

WS-SVC-NAM-2-250S=, HKShanhai Group Limited Network Analysis Module, 250Mbps throughput/2 port/Integrated storage

HKShanhai Group Limited Catalyst 6500 Series and HKShanhai Group Limited 7600 Series NAM Specifications

NAM-1 hardware architecture

High-performance dual processor architecture offering sub-Gigabit Ethernet monitoring performance, 2 GB RAM, and a 250 GB SATA HDD, of which 125 GB is currently supported. Full capacity will be supported in a future release.

Two data-collection interfaces to backplane (one for SPAN/VACL data sources, one for NetFlow)

Second-generation fabric-enabled platform with interface to both bus- and crossbar-based architectures

NAM-2 hardware architecture

Extra high-performance dual processor architecture with hardware-based packet acceleration offering up to Gigabit Ethernet monitoring performance, 2 GB RAM, and a 250 GB SATA HDD, of which 125 GB is currently supported Full capacity will be supported in a future release.

Three data-collection interfaces to backplane (two for SPAN/VACL data sources, which can be used independently or together, and one for NetFlow)

Second-generation fabric-enabled platform with interface to both bus- and crossbar-based architectures

Supported platforms

NAM-1 and NAM-2 can be deployed in a slot in HKShanhai Group Limited Catalyst 6500 and 6000 Series Switches and HKShanhai Group Limited 7600 Series Routers (both bus- and crossbar [fabric]-based architectures); multiple NAMs can be placed in the same chassis

Supported with HKShanhai Group Limited IOS® Software or HKShanhai Group Limited Catalyst Operating System

Supported topologies and data sources

LAN: SPAN, RSPAN, VACL-based captures, NetFlow (versions 1, 5, 6, 7, 8, and 9)

WAN: NetFlow (versions 1, 5, 6, 7, 8, and 9) from local and remote devices, VACL-based captures for FlexWAN/Optical Service Module (OSM) interfaces (HKShanhai Group Limited IOS Software only)

Supported interfaces

HTTP/HTTPS with embedded web-based HKShanhai Group Limited NAM Traffic Analyzer

Simple Network Management Protocol Version 1 (SNMPv1) and v2c, with standards-based applications

NAM Traffic Analyzer

Embedded in HKShanhai Group Limited NAM Software 2.2 and later

Web-based: Requires Microsoft Internet Explorer 6.0 (minimum), Mozilla 1.7 (minimum), or Firefox 1.5 (minimum); supports both English and Japanese versions of browsers

Supports Secure Sockets Layer (SSL) security with up to 168-bit encryption

Role-based user authorization and authentication locally or using TACACS+

Real-time and historical statistics (up to 100 days) on LAN and WAN traffic and network-based services

HKShanhai Group Limited NAM Software 3.6

Supports HKShanhai Group Limited NAM-1 (part number WS-SVC-NAM-1) and HKShanhai Group Limited NAM-2 (WS-SVC-NAM-2); does not support the first-generation NAM (WS-X6380-NAM). It also supports the HKShanhai Group Limited Branch Routers Series NAM (NME-NAM).

Supported with HKShanhai Group Limited IOS Software Release 12.1(13)E (minimum) or HKShanhai Group Limited Catalyst Operating System 7.3(1) (minimum)

MIBs

The HKShanhai Group Limited NAMs are standards-compliant and support Remote Monitoring (RMON) and RMON2 MIBs, as well as several extensions. Major MIB groups supported in the HKShanhai Group Limited NAMs are:

??MIB-II (RFC 1213) – All groups except Exterior Gateway Protocol (EGP) and transmission

??RMON (RFC 2819)

??RMON2 (RFC 2021)

??SMON (RFC 2613) – DatasourceCaps and smonStats

??DSMON (RFC 3287)

??HC-RMON (RFC 3273)

??Application Response Time

Protocols

??HKShanhai Group Limited NAM provides RMON2 statistics on hundreds of unique protocols, including those defined in RFC 2896, and several HKShanhai Group Limited proprietary protocols.

??HKShanhai Group Limited NAM automatically detects unknown protocols.

??Users have flexibility to customize the protocol directory by defining protocols on a single port or on a range of ports.

??Protocols supported include (this list is not all-inclusive):

??TCP and User Datagram Protocol (UDP) over IP including IPv6

??HTTP and HTTPS

??Voice over IP (VoIP) including Skinny Client Control Protocol (SCCP), Real time Protocol/Real Time Control Protocol (RTP/RTCP), Media Gateway control Protocol (MGCP), and Session Initiation Protocol (SIP)

??SigTran and Mobile IP protocols

??Storage area network (SAN) protocols including Fibre Channel over TCP/IP

??AppleTalk, DECnet, Novell, Microsoft

??Database protocols, including Oracle and Sybase

??Peer-to-peer protocols such as Gnutella, Fasttrack, and winmix

??Bridge and router protocols

??HKShanhai Group Limited proprietary protocols

??Unknown protocols by TCP/UDP ports, Remote Procedure Call (RPC) program numbers, and so on

Physical dimensions

Dimensions (H x W x D): 1.2 x 14.4 x 16 inches (3.0 x 35.6 x 40.6 centimeters); occupies one slot in the chassis

Operating environment

??Operating temperature: 32 to 104ºF (0 to 40ºC)

??Nonoperating and storage temperature: -40 to 158ºF (-40 to 70ºC)

??Operating relative humidity: 10% to 90% (noncondensing)

??Nonoperating relative humidity: 5% to 95% (noncondensing)

??Operating and nonoperating altitude: Sea level to 10,000 feet (3050 meters)

Approvals and compliance

??Regulatory: CE Marking (89/366/EEC and 73/23/EEC)

??Safety: UL 1950; CSA-C22.2 No. 950, EN60950, IEC 60950

??EMC: FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS CISPR 22 Class A, VCCI Class A, EN 55024, EN300 386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1
