WS-C3850-48XS-S switch provides 48 ports 10Gbps SFP+ connection with upgradeable IP base image and build in wireless controller provide fully convergence between wired and wireless on a single platform.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3850-48XS-S |
|
Enclosure Type |
1 RU |
|
Feature Set |
IP Base |
|
Ports |
48 x 10/100/1000 10G SFP+ Optical ports |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
480 Gbps |
|
Switching Capacity |
1280 Gbps |
|
RAM |
8 GB |
|
Flash Memory |
8 GBÂ |
|
Dimensions |
4.45 X 44.5 x 51.1 cm |
Product Details

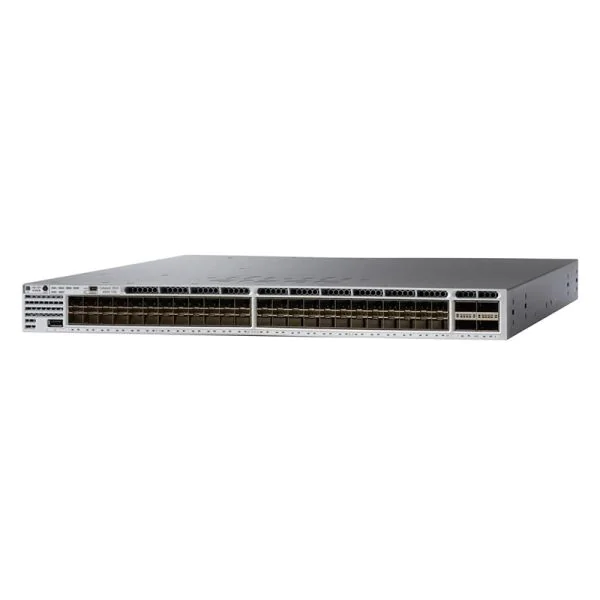

Figure 1 shows the appearance of the HKShanhai Group Limited Catalyst WS-C3850-48XS-S.
Figure 2 shows the back panel of the WS-C3850-48XS-S switch.
Note??/p>
|
??/p> |
Ground connector |
??/p> |
StackWise port connector |
|
??/p> |
CONSOLE (RJ-45 console port) |
??/p> |
StackPower connector |
|
??/p> |
Fan module |
??/p> |
Power supply modules |
|
??/p> |
MGMT port |
 |
Compare to Similar Items
Table 2 shows the comparison between WS-C3850-12XS-S and WS-C3850-48XS-S.
|
Models |
WS-C3850-48XS-S |
|
|
Feature Set |
IP Base |
IP Base |
|
Ports |
12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature |
48 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
|
Network SFP uplink module selection |
None |
Switch to Something New
Why Upgrade to Catalyst 9300Â |Â See the Catalyst 9300 Series??/a>
Get more information
Do you have any question about the WS-C3850-48XS-S
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3850-48XS-S Specification
WS-C3850-48XS-S Specification |
|
|
model info: |
WS-C3850-48XS-S |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x SFP+ ports |
|
Network management Interface |
 Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
1280 Gbps |
|
Maximum stacking number |
9 |
|
FNF entries |
96,000 flows |
|
Maximum VLANs IDs |
1,000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
8 GB |
|
Flash Memory |
8 GB |
|
Wireless |
|
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Power supply |
PWR-C3-750WAC-R |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Miscellaneous |
|
|
Dimension |
4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch) |
|
Weight |
7.45 kg |
|
Rack Mounting Kit |
optional |
|
 MTBF in hours |
286,900 |
|
Compliant Standards |
 IEEE 802.1D Spanning Tree Protoco  IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS IP Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Advanced Network security |
 Port security  DHCP snooping Dynamic ARP inspection (DAI)  IP source guard The Unicast Reverse Path Forwarding (uRPF) |
|
Management |
BRIDGE-MIBÂ CISCO-AUTH-FRAMEWORK-MIB CISCO-SNMP-TARGET-EXT-MIBÂ CISCO-STACKMAKER-MIB |
|
Technical Support and Services |
 HKShanhai Group Limited SMARTnet Service  HKShanhai Group Limited Smart Foundation Service  HKShanhai Group Limited SP Base Service  HKShanhai Group Limited Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
 -40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 13,000 Feet (Up to 4000 Meters) |
|
Storage altitude |
Up to 15,000 Feet (Up to 4573 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
