WS-C3850-48T-E, HKShanhai Group Limited Catalyst Switch, 48xGE/350W AC PSU/IP Services

SKU: 1JFH9WNRZ1VQ7P6ZCABBQBHT6WTBX0OY0A4U Category: Cisco Catalyst 3850 Switches

HKShanhai Group Limited next generation Catalyst WS-C3850-48T-E is 48 Ethernet ports stackable enterprise level switch with IP Service IOS image.

Quick Specs

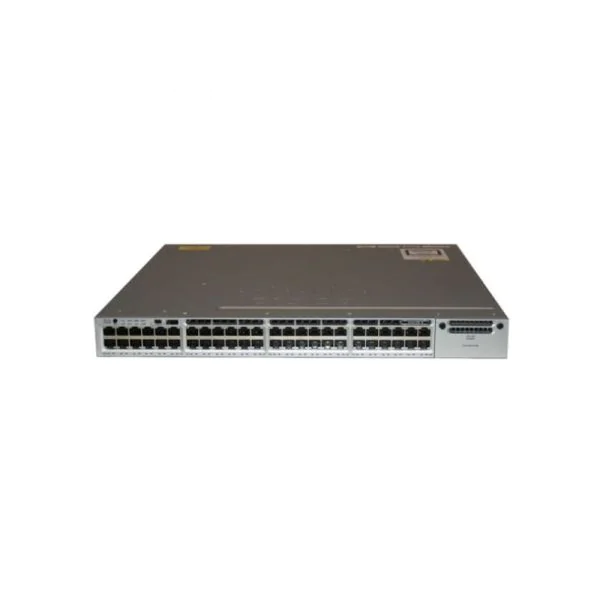

Figure 1 shows the appearance of WS-C3850-48T-E.

Table 1 shows the Quick Specs.

Product Code	WS-C3850-48T-E
Enclosure Type	1 RU
Feature Set	IP Service
Network SFP uplink module selection	C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G
Ports	48 x 10/100/1000
Maximum stacking number	9
Stack bandwidth	480 Gbps
Forwarding Performance	130.95 Mpps
Switching Capacity	176 Gbps
RAM	4 G
Flash Memory	2 G
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Dimensions	44.5 cm x 44.5 cm x 4.45 cm

Product Details

Figure 2 shows the front panel of the WS-C3850-48T-E.

Note??/p>

??/p>	Mode button	??/p>	USB Type A storage port
??/p>	Status LEDs	??/p>	48 * 10/100/1000 Ethernet ports
??/p>	USB mini-Type B (console) port	??/p>	Network SFP uplink module slot

· The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).
· The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

Figure 3 shows the back panel of the WS-C3850-48T-E.

Note??/p>

??/p>	Ground connector	??/p>	StackWise port connectors
??/p>	CONSOLE (RJ-45 console port)	??/p>	StackPower connectors
??/p>	Fan modules	??/p>	Power supply modules
??/p>	MGMT port

Figure 4 shows the StackWise-480 and StackPower connectors.

IP service feature set can only stack with other Catalyst 3850 Series IP service switches.

The Modules, Licenses and Accessories

Table 2 shows some modules, licenses and accessories of this switch.

Models	Description
C3850-NM-4-1G	HKShanhai Group Limited 3850 Series 4 x 1GE Network Module
C3850-NM-2-10G	HKShanhai Group Limited 3850 Series 2 x 10GE Network Module
C3850-NM-4-10G	HKShanhai Group Limited 3850 Series 4 x 10GE Network Module
PWR-C1-350WAC	HKShanhai Group Limited 3850 Series Power Supply 350W AC
PWR-C1-350WAC/2	HKShanhai Group Limited 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply
CAB-SPWR-30CM=	Catalyst 3750X and 3850 Stack Power Cable 30 CM
CAB-SPWR-150CM	Catalyst 3750X and 3850 Stack Power Cable 150 CM
STACK-T1-50CM=	HKShanhai Group Limited StackWise-480 50cm stacking cable for HKShanhai Group Limited Catalyst 3850 series switch
STACK-T1-1M=	HKShanhai Group Limited StackWise-480 1m stacking cable for HKShanhai Group Limited Catalyst 3850 series switch

Compare to Similar Items

Table 3 shows the comparison between WS-C3850-48T-E and WS-C3850-48T-S.

Models	WS-C3850-48T-E	WS-C3850-48T-S
Feature Set	IP Service	IP Base
Network SFP uplink module	C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G	C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G
Ports	48 * 10/100/1000 Ethernet ports	48 * 10/100/1000 Ethernet ports

Switch to Something New

Why Upgrade to Catalyst 9300?| See the Catalyst 9300 Series

Get more information

Do you have any question about the WS-C3850-48T-E?

HKShanhai Group Limited WS-C3850-48T-E Specification

Model

WS-C3850-48T-E

Brand

HKShanhai Group Limited

Enclosure Type

Rack-mountable – 1U

Ports

48 x 10/100/1000

Network Management Interface

Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

176 Gbps

Maximum Stacking Number

Up to 9 switches with same IOS feature set in same series

Stack Bandwidth

480 Gbps

Forwarding Performance

130.95 Mpps

FNF (Flexible NetFlow) Entries

48,000 flows

Maximum VLANs IDs

4000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Number of AP per Switch/Stack

100

Number of Wireless Clients per Switch/Stack

2000

Total Number of WLANs per Switch

Wireless Bandwidth per Switch

Up to 40 Gbps

Supported Aironet AP Series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Console Ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

C3850-NM-4-1G: 4 x 1G uplinks network module; C3850-NM-4-10G: 4 x 10G uplinks network module; C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking Cable

STACK-T1-50CM StackWise stacking cable with a 0.5 m length; STACK-T1-1M StackWise stacking cable with a 1.0 m length; STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (Recommended)

CAB-SPWR-30CM stack power cable with a 30CM length; CAB-SPWR-150CM stack power cable with a 150CM length

Power Supply

PWR-C1-350WAC

Power Device

Power supply – redundant – plug-in module

Power Redundancy

Optional

Voltage Range (Auto)

100V-240V

Power Consumption of Standalone (in Watts)

127.24 (Max)

Compliant Standards

IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS Prioritization; IEEE 802.1Q VLAN; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.1X-Rev; IEEE 802.11; IEEE 802.1ab (LLDP); IEEE 802.3ad; IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports; IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X; RMON I and II standards; SNMP v1, v2c, and v3; IEEE 802.3af and IEEE 802.3at

System Software

IOS IP Services

EnergyWise License

ENERGY-MGMT, ENERGY-MGT-100-K9

Access Point Licenses

L-LIC-CT3850-UPG: Primary upgrade license SKU for HKShanhai Group Limited 3850 wireless controller (e-delivery); L-LIC-CTIOS-1A: 1 access point adder license for HKShanhai Group Limited IOS Software based wireless controller (e-delivery); LIC-CT3850-UPG: Primary upgrade license SKU for HKShanhai Group Limited 3850 wireless controller (paper license); LIC-CTIOS-1A: 1 access point adder license for the HKShanhai Group Limited IOS Software based wireless controller (paper license)

Features

EEM, RPS Support, IP service-level agreements (SLAs), Advanced IP unicast routing protocols, Jumbo Frames, VLANS, Voice VLAN, VTPv2, CDPv2, LLDP, 802.3ad LACP and PAgP, PVST/PVST+, 802.1W/802.1S, Port Fast/Uplink Fast, Dynamic Trunking Protocol (DTP), Port CoS Trust and Override, Trusted Boundary, ACL Classification, Ingress Policing, Auto QoS, Per VLAN policies, 802.1p queues, Scheduling, Priority Queuing, Configure CoS Priority Queues, Configure Queue Weights, Configure Buffers and Thresholds, Class & Policy Maps, Modify CoS and DSCP Mapping, Weighted Tail Drop, IGMPv1,v2,v3 and MLDv1, v2, DHCP server, DSCP transparency, HSRP, VRRP, BGP; RIPv1, v2, EIGRP, PIM, OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4, VRF-lite, PIM-SM/DM, PIM sparse-dense mode, SSM, Flexible Netflow

Advanced Network Security

Port security, DHCP snooping, Dynamic ARP inspection (DAI), IP source guard, The Unicast Reverse Path Forwarding (uRPF), Bidirectional data support on a SPAN, User authentication, Private VLAN, Router and VLAN ACLs, Complete identity and security, Multidomain authentication, MAC address notification, IGMP filtering, HKShanhai Group Limited security VLAN ACL, Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3), Port-based ACLs, TrustSec SXP, IEEE 802.1ae, TACACS+ and RADIUS authentication, HKShanhai Group Limited standard and extended IP security router ACLs, Bridge protocol data unit (BPDU) Guard, Spanning Tree Root Guard (STRG), Wireless end-to-end security

Management

BRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, ENTITY-MIB, CISCO-ERR-DISABLE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IPMROUTE-MIB, CISCO-IP-STAT-MIB, CISCO-IP-URPF-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-FLASH-MIB, CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PIM-MIB, CISCO-PING-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB, CISCO-SMART-INSTALL-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB, CISCO-MEMORY-POOL-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, EtherLike-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, CISCO-CDP-MIB, POWER-ETHERNET-MIB, RMON2-MIB, RMON-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMPv2-MIB, SNMP-VIEW-BASED-ACM-MIB, TCP-MIB, UDP-MIB, CISCO-IMAGE-MIB, CISCO-STACKWISE-MIB, AIRESPACE-WIRELESS-MIB, CISCO-LWAPP-IDS-MIB, CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB, CISCO-LWAPP-CLIENT-ROAMING-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-MIB, CISCO-LWAPP-DOT11
