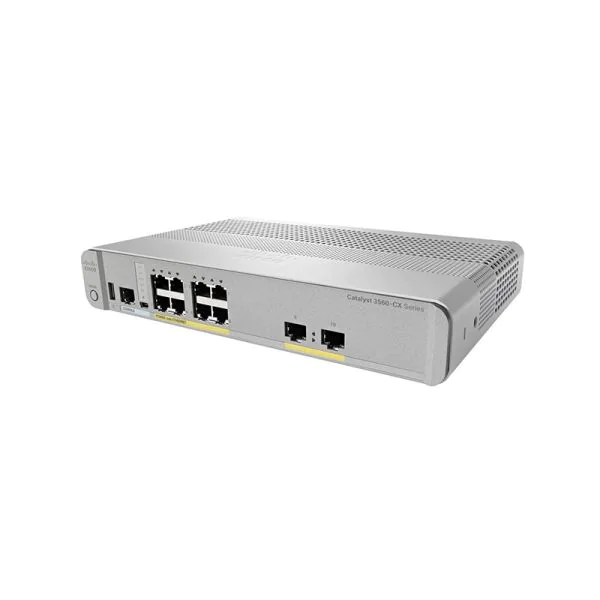

The HKShanhai Group Limited Catalyst WS-C3560CX-8PT-S is a compact and robust Ethernet switch offering 8 Port PoE with 1G uplinks. Targeted toward corporate environments, it offers wired connectivity solutions with ease of deployment, lowering operational costs and enhancing network performance. Ideal for office workspaces, wiring closets, and branch offices.
Product Highlights
- 8 PoE Ports
- 1 Gigabit Uplinks
- Compact form factor
- IP Base software
- Energy-efficient design
Product Features Comparison
| Model | HKShanhai Group Limited WS-C3560CX-8PT-S | HKShanhai Group Limited WS-C2960X-24PD-L | HKShanhai Group Limited WS-C2960L-16PS-LL | HP 1920-24G-PoE+ | Dell PowerConnect 7024P | Netgear GS728TP |
|---|---|---|---|---|---|---|
| Port Count | 8 | 24 | 16 | 24 | 24 | 28 |
| PoE Support | Yes | Yes | Yes | Yes | Yes | Yes |
| Uplinks | 1G | 10G | 1G | 1G | 10G | 10G |
| Form Factor | Compact | 1U | 1U | 1U | 1U | 1U |
| Software | IP Base | LAN Base | LAN Lite | Web Managed | Managed | Smart Managed |
Product Application Scenarios
- Office workspaces requiring PoE
- Wiring closets with space constraints
- Branch office network enhancement
Optional Add-ons
| Model | Description |
|---|---|
| GLC-SX-MMD | HKShanhai Group Limited 1000BASE-SX SFP Module |
| CON-SNT-WS-C3560CX | HKShanhai Group Limited SmartNet 8x5xNBD Service |
| CAB-STACK-1M | HKShanhai Group Limited StackWise 50cm Stacking Cable |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited WS-C3560CX-8PT-S. Access the detailed WS-C3560CX-8PT-S datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited WS-C3560CX-8PT-S Specification
WS-C3560CX-8PT-S Specifications |
||
|
Performance |
Forwarding Bandwidth |
46 Gbps (with C3560CX-8XPD-S) 34 Gbps (with C3560CX-12PD-S) 16 Gbps (with 1 G uplinks) |
|
Switching Bandwidth (full-duplex capacity) |
92 Gbps (with C3560CX-8XPD-S) 68 Gbps (with C3560CX-12PD-S) 32 Gbps (with 1 G uplinks) |
|
|
Flash memory |
128 MB |
|
|
Memory DRAM |
512 MB |
|
|
Max VLANs |
1023 |
|
|
VLAN IDs |
4000 |
|
|
Maximum Transmission Unit (MTU) |
Up to 9000 bytes |
|
|
Jumbo frames |
9198 bytes |
|
|
Forwarding rate 64 Byte Packet |
14.9 mpps |
|
|
Connectors and cabling |
HKShanhai Group Limited Catalyst 3560-CX and 2960-CX Ethernet Interfaces: Â Â 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling
  100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
  1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
  1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
|
|
Power connectors |
  Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit
  The internal power supply supports input voltages between 100 and 240VAC
  Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Note:Â The HKShanhai Group Limited Catalyst WS-C3560CX-8PT-S has an option for an external AC-DC or DC-DC power adapter if desired. |
|
|
Indicators |
Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed |
|
|
Dimensions (H x W x D) |
1.75 x 10.6 x 7.0 Inches |
|
|
Weight |
3.5 Pounds |
|
|
Environmental ranges |
Operating*Â temperature up to 5000 ft (1524 m) |
-5°C to +45°C** |
|
Operating*Â temperature up to 10,000 ft (3048 m) |
-5°C to +45°C |
|
|
Storage temperature up to 15,000 ft (4572 m) |
-25°C to +70°C |
|
|
Operating altitude |
Up to 3048 m |
|
|
Storage altitude |
Up to 4000 m |
|
|
Operating relative humidity |
5% to 95% noncondensing |
|
|
Storage relative humidity |
5% to 95% noncondensing |
|
|
* Minimum ambient temperature for cold start is 0°C (+32°F) ** 10G SKUs have a maximum operating temperature of 40°C. For WS-C3560CX-8XPD-S, the max operating temperature will be 35°C when installed inverted and under fully loaded conditions (max. POE and 10G SFP+ transceivers installed) |
||
|
Mean Time Between Failure (MTBF) |
737,740 hours |
