HKShanhai Group Limited Catalyst 2960XR-24TS-I IP Lite Base layer 2 – 3 stackable switch is comprised of 24 x 10/100/1000 Ethernet ports and 4 x SFP uplink interfaces.
Quick Specs

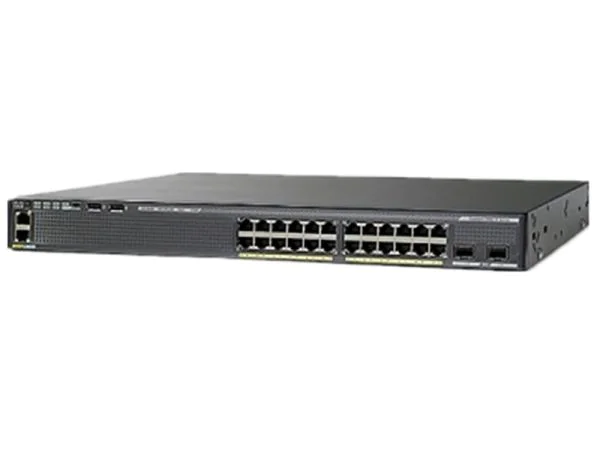

Figure 1 shows the appearance of WS-C2960XR-24TS-I.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960XR-24TS-I |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP Lite |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
24 x 10/10/1000 Ethernet Gigabit ports |
|
Forwarding Bandwidth |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512MB |
|
Flash Memory |
128MB |
|
Dimensions |
44.5 cm x 40.8 cm x 4.45 cm |
|
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front panel of WS-C2960XR-24TS-I.
Note:
| ??/td> | Ethernet management port | ??/td> | 24*10/100/1000 ports |
| ??/td> | Mode button | ??/td> | SFP module ports |
| ??/td> | Switch LEDs | ??/td> | CONSOLE LEDÂ |
| ??/td> | USB mini-Type B (console) port | ??/td> | MGMT LED |
| ??/td> | USB Type A ports | ??/td> | RJ-45 console port |
·The Switch LEDs include SYST, STAT, SPEED, IRPS, MAST, STACK and console port LEDs.
·The IRPS LED is only available on Catalyst 2960-XR switches.
Table 2 shows the IPRS LED description.
|
IPRS LED Color |
RPS Status |
|
Off |
Second power supply is not present. |
|
Green |
Both power supplies are present and operating. |
|
Amber |
The second power supply is present, but the input is not connected. |
|
Blinking amber |
The second power supply is present, but the signal is faulty. |
The Accessories
Table 3 shows some accessories of WS-C2960XR-24TS-I.
|
Models |
Description |
|
Catalyst 2960-X FlexStack Plus Stacking Module |
|
|
HKShanhai Group Limited FlexStack Stacking Cables |
|
|
GE SFP, LC connector LX/LH transceiver |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 4 shows the comparison of similar items.
|
Models |
WS-C2960XR-24TS-I |
|
|
Ports |
24 x 10/100/1000 Ethernet Ports |
24 x 10/100/1000 Ethernet Ports |
|
Uplinks |
4 x SFP |
2 x SFP |
|
Feature Set |
IP Lite |
LAN Lite |
|
FlexStack-Plus Stacking |
Optional |
N/A |
Get more information
Do you have any question about the HKShanhai Group Limited Catalyst 2960XR-24TS-I switch?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C2960XR-24TS-I Specification
WS-C2960XR-24TS-I Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
24 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
|
Available PoE Power |
None |
|
Forwarding bandwidth(Gbps) |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack Bandwidth |
80G |
|
Forwarding Performance |
71.4Mpps |
|
Switching bandwidth |
216Gbps |
|
Maximum active VLANs |
1023 |
|
MAC Address Table Size |
16K (default) |
|
CPU |
APM86392 600MHz dual core |
|
RAM |
512 MBÂ |
|
Flash Memory |
128 MBÂ |
|
Status Indicators |
 Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 FlexStack-Plus slot and 1 power redundant slot |
|
Stack Modules |
C2960X-STACK |
|
Stacking cable |
 CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length |
|
Power supply |
PWR-C2-250WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
110V-240V |
|
Power Consumption Operational |
0.038kVA |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
16 Inches (40.8 cm) |
|
Height |
1.75 Inches (4.45 cm) |
|
Weight |
13.0 Pounds (5.9Kg) |
|
Package Weight |
38.56 Pounds (17.49 Kg) |
|
Rack Mounting Kit |
Optional |
|
 MTBF in hours |
557,320 |
|
Compliant Standards |
 IEEE 802.1D Spanning Tree Protocol  IEEE 802.1p CoS Prioritization  IEEE 802.1Q VLAN  IEEE 802.1s  IEEE 802.1w  IEEE 802.1X  IEEE 802.1ab (LLDP)  IEEE 802.3ad  IEEE 802.3af and IEEE 802.3at  IEEE 802.3ah (100BASE-X single/multimode fiber only)  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports  IEEE 802.3 10BASE-T  IEEE 802.3u 100BASE-TX  IEEE 802.3ab 1000BASE-T  IEEE 802.3z 1000BASE-X  RMON I and II standards  SNMP v1, v2c, and v3  IEEE 802.3az  IEEE 802.3ae 10Gigabit Ethernet  IEEE 802.1ax |
|
System software / license |
|
|
System software |
IOS IP Lite |
|
license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
features |
 IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub)  Advanced IP unicast routing protocols (OSPF for Routed Access)  EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite.  Equal-cost routing  Policy-based routing (PBR)  Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)  Protocol Independent Multicast (PIM) |
|
Network security |
 MAC-based VLAN assignment enables  HKShanhai Group Limited TrustSec uses  Comprehensive 802.1X  IPv6 First-Hop Security  Device Sensor and Device Classifier   HKShanhai Group Limited Trust Anchor Technology  HKShanhai Group Limited Threat Defense  Private VLANs  Unicast Reverse Path Forwarding (uRPF)  Multidomain Authentication  Access Control Lists (ACLs)  Switched Port Analyzer (SPAN)  Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)  TACACS+ and RADIUS authentication  MAC Address Notification  Multilevel security on console access BPDU Guard  Spanning Tree Root Guard (STRG)  IGMP filtering |
|
Management & Troubleshooting |
 Auto-MDOX TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager HKShanhai Group Limited Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop HKShanhai Group Limited IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB |
|
Technical Support and Services |
 HKShanhai Group Limited SMARTnet Service  HKShanhai Group Limited Smart Foundation Service  HKShanhai Group Limited Smart Care Service  HKShanhai Group Limited SP Base Service  HKShanhai Group Limited Focused Technical Support Services |
|
Environmental Ranges |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113º (-5ºC to 45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
|
Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
|
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
|
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
|
Operating altitude |
Up to 10,000Â (Up to 3000 Meters) |
|
Storage altitude |
Up to 13,000Â (Up to 4000 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
