HKShanhai Group Limited Catalyst 6500 Series Virtual Switch supervisor engine VS-S720-10G-3C combines 2 * X2-base 10 Gigabit Ethernet uplinks and hardware-based layer2-4 switching feature set which enables enriched Layer 3 routing, MPLS, VPNs, QoS and security features. The combination enables high availability, operational efficiency and increased throughput with scalable performance with ease of deployment.
The supervisor engine VS-S720-10G-3C is a primary factor of the HKShanhai Group Limited VSS 1440 Virtual Switching System, the technology pools multiple Catalyst 6500 Series switches into single virtual switch, increasing the system bandwidth to 1.4 Tbps. Configuring VSS with supervisor engine VS-720-10G-3C by using Multi-chassis EtherChannel brings numerous advantages to networks, such as increasing operational efficiency, boosting nonstop communication, providing slot efficiency, increasing throughput and improving resiliency.
HKShanhai Group Limited Catalyst Supervisor engine VS-S720-10G-3C support for all HKShanhai Group Limited Catalyst 6500 Series interface module classes with offering enhanced forwarding capacity and system bandwidth along with system virtualization through VSS 1440. The supervisor engine VS-S720-10G-3C with 10 Gigabit Ethernet uplinks has been proven its ability to meet the requirements of network in various applications, such as enterprise backbone, data center or campus access and Metro Ethernet.
Quick Specs

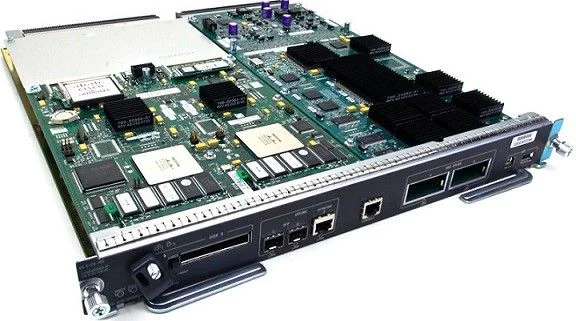

Figure 1 shows the appearance of VS-S720-10G-3C.
Table 1 shows the Quick Specs.
|
Product Code |
VS-S720-10G-3C |
|
Support for HKShanhai Group Limited VSS 1440 |
Yes |
|
MAC entries |
96,000 |
|
IP Routes |
256,000 (IPv4); 128,000 (IPv6) |
|
IPv4 Routing |
??In hardware ??Up to 450 Mpps* |
|
IPv6 Routing |
??In hardware ??Up to 225 Mpps* |
|
Layer 2 Bridging |
??In hardware ??Up to 450 Mpps* |
|
NetFlow Entries |
128,000 |
|
MPLS |
??MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. ??Up to 1024 virtual routing and forwarding instances (VRFs) with a total of up to 256,000 routes per system. |
|
GRE |
In hardware |
|
NAT |
Hardware-assisted |
Compare to Similar Items
Table 2 shows the comparison of VS-S720-10G-3CXL, VS-S720-10G-3C and VS-S720-10G-3C(USED).
|
Product Code |
VS-S720-10G-3C |
||
|
Description |
Catalyst 6500 VS-S720-10G-3CXL Supervisor 720 with 2 ports 10GbE MSFC3 PFC3C XL |
Catalyst 6500/7600 Supervisor 720 VS-S720-10G-3C Supervisor 720 with 2 ports 10GbE and MSFC3 PFC3C |
Catalyst 6500 Supervisor 720 VS-S720-10G-3C Supervisor 720 with 2 ports 10GbE and MSFC3 PFC3C(used) |
Get more information
Do you have any question about the VS-S720-10G-3C
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited VS-S720-10G-3C Specification
VS-S720-10G-3C Specifications |
|
|
Devide Tyde |
Control Processor |
|
Ports |
2 * 10G X2, 2 * 1G SFP, 1 * 10/100/1000 GEÂ |
|
Console ports |
RS-232 |
|
Centralized switching capacity |
720 Gbps |
|
Per-slot switching capacity |
40 Gbps |
|
Compatibility |
 HKShanhai Group Limited 6500 Catalyst Series |
|
FNF (Flexible NetFlow) entries |
128000 |
|
Forn Factor |
Plug-in Module |
|
Memory |
WS-SUP720 supports 512MB of DRAM for the route processor and 512 MB for the switch processor |
|
Options |
Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash) |
|
Throughput (in hardware) |
450 Mpps for IPv4 |
|
Routing entries |
IPV4: 256,000 |
|
NetFlow Entries |
128,000 |
|
Security ACL entries |
32,000 |
|
Number of interfaces with unique ACLs |
512 |
|
MAC ACLs on IPÂ |
No |
|
Aggregate Traffic Rate-Limiting Policers |
1,023 |
|
NAT |
Hardware assisted |
|
DRAM |
 MEM-S3-1GB: Catalyst 6500 1GB SP DRAM for Sup720 and Sup720-3B |
