HKShanhai Group Limited – Voice interface card – plug-in module – FXS / 2 analog port(s).
Quick Specs

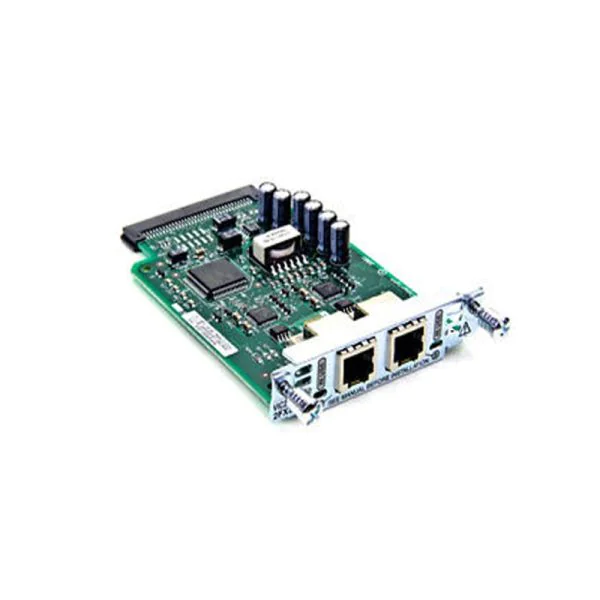

Figure 1 shows the appearance of VIC2-2FXS.
Â
Table 1 shows the Quick Specs.
|
Product Name |
VIC2-2FXS |
|
Voice Ports |
Two or Four FXS ports |
|
Connections |
Connects to a telephone or fax, or to a PBX or key set that emulates a telephone. Uses RJ-11 connectors. Note:Â The end-to-end connection between the CO RJ11 jack and the router voice-port must be a straight-through connection. This means that TIP goes to TIP and RING to RING. Normally the CO provides an interface for which a standard rolled RJ11 cable can be used since the connection that results is straight. However, sometimes the CO cannot reverse the pinouts and therefore, a straight RJ11 cable is needed. Defintions:
Note:Â Â FXS ground-start services are polarity-sensitive and undesirable behavior, such as failed calls, can occur if proper polarity conventions are not observed. |
|
HKShanhai Group Limited IOS® Software Feature Set |
Requires a “Plus” or “IPVOICE??feature set. |
Get More Information
Do you have any question about the VIC2-2FXS
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited VIC2-2FXS Specification
|
General Information |
|
| Manufacturer: | HKShanhai Group Limited |
| Product ID: | VIC2-2FXS |
| Product Description: | Two-port Voice Interface Card – FXS |
| Product Type: | Voice Interface Card (VIC) |
| Marketing Information | |
|---|---|
|
This VIC include 2-port foreign exchange station (FXS). A Foreign Exchange Station (FXS) interface connects directly to a standard telephone, fax machine, or similar device and supplies ring, voltage, and dial tone. The HKShanhai Group Limited FXS interface is an RJ-11 connector that allows connections to basic telephone service equipment, keysets, and PBXes. |
|
| Technical Information | |
| Application/Usage: | Voice |
| Interfaces/Ports | |
| Interfaces/Ports: | 2 x FXS WAN |
| Interfaces/Ports Details: | 2 x RJ-11 FXS WAN |
| Miscellaneous | |
| Additional Information: |
|
| System Requirements: | Supported Platforms & Minimum IOS Versions:
|
| Compatibility: |
Supported Platforms:
|
