HKShanhai Group Limited VCN3000 video cloud node uses standard 19-inch cabinet provides high density of disks and 4U space. The compact VCN3000 houses maximum 36 data disks and 2 metadata disks, multiport support is another highlight of VCN3000, this facilitate connivance devices management both locally and remotely. VCN3000 adopt the modular hardware redundancy design for both power and fun modules are 1 + 1 redundant to ensure stable device operation.
HKShanhai Group Limited VCN3000 is all-in-one device that integrate media stream access, storage, management and forwarding on a single platform. VCN3000 save 50% energy and space, shortens 80% deployment period when compare to the traditional video surveillance system. A single VCN3000 can connect and manage up to 256PUs, up to 16 units can stack in self-management mode to easily expand the system capacity.
Quick Specs

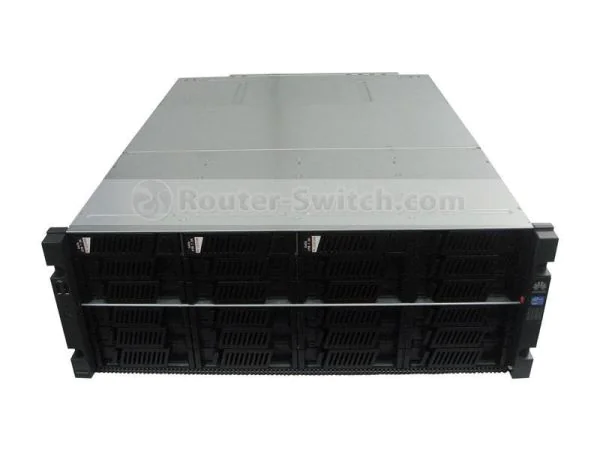

Figure 1 shows the appearance of VCN3000
Table 1 shows the Quick Specs.
|
Model Item |
VCN3000 |
|
Enclosure |
4U 38 HDD(2 system disks, 36 video data disks) |
|
CPU |
2×64bit quad-core processor, 2.2GHz |
|
Memory |
16GB |
|
Interfaces |
2×10/100/1000M Ethernet Ports |
|
SAS Channel |
6Gbps |
|
HDD plug and play |
Support |
|
RAID Mode |
RAID00,1,5,6, with SafeVideo |
|
Hot-spare Disk |
Support dynamic hot spare disk |
|
Weight |
Full configuration net weight ??0kg |
|
Operating humidity |
20% ~ 80% |
|
Power Module |
Dual power supply, 1+1, hot plug and play. |
|
Product Appearance |
175mm×446mm×582mm |
Get more information
Do you have any question about the VCN3000
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited VCN3000 Specification
VCN3000 Specification |
|
|
Enclosure |
4U 38 HDD(2 system disks, 36 video data disks) |
|
CPU |
2×64bit quad-core processor, 2.2GHz |
|
Memory |
16GB |
|
Interfaces |
2×10/100/1000M Ethernet Ports |
|
SAS Channel |
6Gbps |
|
HDD plug and play |
Support |
|
RAID Mode |
RAID00,1,5,6, with SafeVideo |
|
Hot-spare Disk |
Support dynamic hot spare disk |
|
Weight |
Full configuration net weight ??0kg |
|
Operating humidity |
20% ~ 80% |
|
Power Module |
Dual power supply, 1+1, hot plug and play. |
|
Product Appearance |
175mm×446mm×582mm |
