HKShanhai Group Limited VC4MNTSDB ViewPoint 8000 Series SD Videoconferencing Endpoints.
Flexible, cost-effective videoconferencing endpoint supporting 4CIF and DVD quality video, H.264 encoding, and broadband audio.
Intelligent H.239 dual-stream channels allow simultaneous display of video and digital data.
Dynamic E1 and IP line backup and error-correction technologies keep video conferences continuous and lifelike in the event of line failure and packet loss of up to 5%.
With its ease-of-use and comprehensive security features, ViewPoint 8000 Series endpoints provide a simple and secure conference experience.
Quick Specs

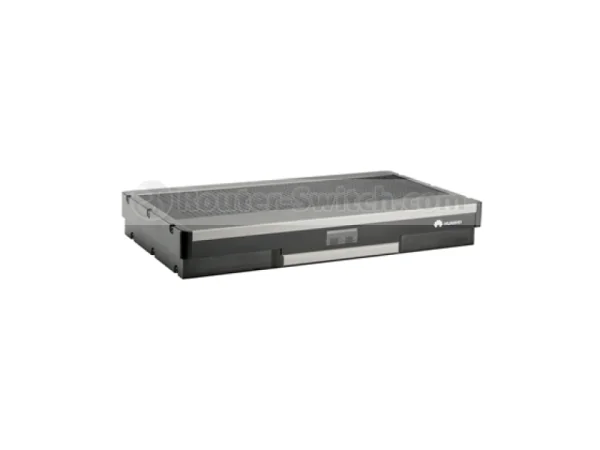

Figure 1 shows the appearance of VC4MNTSDB
Table 1 shows the Quick Specs.
|
Model |
VC4MNTSDB |
|
Scenarios |
Small-sized conference rooms |
|
Video Input Interfaces |
1×S-Video (Used for main camera) |
|
Video Output Interfaces |
1×S-Video |
|
Audio Input Interfaces |
1×XLR (Connects to analog microphone) |
|
Audio Output Interfaces |
2×RCA (Connects to TV set) |
|
Communication control Interfaces |
1×RS232 |
|
Network Interface |
1-port IP, 10/100 Base-T, RJ45 connector |
|
IP |
64kbps??/span>2Mbps |
|
E1 |
64kbps??/span>2Mbps |
|
4E1 |
64kbps??/span>4Mbps |
|
ISDN |
64kbps??/span>512kbps |
|
Dimensions & Weight |
Codec Dimensions (L×W×H): 388 mm×225mm×63mm |
Get More Information
Do you have any question about the VC4MNTSDB
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited VC4MNTSDB Specification
VC4MNTSDB Specification |
|
|
Video Standards & Protocols |
H.264, H.263, H.263+ , H.261 |
|
H.239 |
|
|
People Video Resolution |
4CIF, 4SIF, 2CIF,CIF, SIF, QCIF, SQCIF |
|
Video Frame Rate PAL( 25 fps)/NTSC( 30 fps) |
|
|
50/60 fields progressive scanning |
|
|
VideoIntensifier |
|
|
ViewProcessing |
|
|
Content Video Resolution |
SXGA (1280×1024), XGA (1024×768), SVGA(800×600), VGA (640×480) |
|
Audio Standards & Protocols |
AAC-LD, G.728, G.722, G.711 |
|
Acoustic Echo Cancellation (AEC) |
|
|
Acoustic Noise Suppression (ANS) 12 dB |
|
|
Automatic Gain Control (AGC) ±6 dB |
|
|
VoiceClear |
|
|
AudioEnhancer |
|
|
Other Standards |
H.221 communications |
|
H.224/H.281 far-end camera control |
|
|
H.225, H.245, H.241, |
|
|
H.239 dual stream |
|
|
H.231 in multipoint calls |
|
|
H.243 chair control |
|
|
H.233, H.234, H.235, H.242, H.283 |
|
|
Network |
Communication standards: ITU-T H.323/H.320 |
|
Network standards: TCP/IP,FTP, DHCP, Telnet, HTTP, PPPoE, RTP, RTCP |
|
|
User Interface |
Languages: English, French, Spanish, Russian, Arabic , Chinese |
|
Control mode: Remote control, Telnet, Web |
|
|
Security |
H.235 signaling and media stream encryption |
|
AES/DES media stream encryption |
|
|
Conference access password |
|
|
Conference control password |
|
|
Administrator password |
|
|
Digital Caption |
Active caption |
|
16 optional colors |
|
|
Rolling captions in horizontal and vertical directions |
|
|
Caption rolling mode setting |
|
|
Site name display and position shift |
|
|
External character generator |
|
|
Special Features |
H.239 dual stream |
|
Picture-in-picture: 1/16 picture size, optional position |
|
|
Split output. Bi-screen and tri-screen display |
|
|
SiteCall |
|
|
Group function |
|
|
Time display |
|
|
Call record |
|
|
SNP traversal between the public network and private network. |
|
|
Intelligent rate control (IRC) |
|
|
Super error concealment (SEC) |
|
|
Network address book |
|
|
Web monitor |
|
|
Maintenance Management |
Local and remote loopback |
|
Test signals: providing test sound and standard test stripes |
|
|
Volume input indication |
|
|
IP network test |
|
|
Telnet: command line mode; providing user-level and administrator-level login accounts |
|
|
Local and remote software upgrades |
|
|
WebServer, Web maintenance management |
|
|
Event log record |
|
|
Importing and exporting of the configuration and directory |
|
|
Default settings restoration |
|
|
Approval and Compliance |
CE??/span>RoHS |
|
Electrical |
Working voltage: 100??40V AC |
|
Working frequency: 50??0Hz |
|
|
Power consumption: <36W |
|
|
Environmental Specification |
Operating Temperature: 0-40ºC |
|
Operating Humidity: 10-80% |
|
|
Non-Operating Temperature: -40º-85º C |
|
|
Non-Operating Humidity (Non-condensing): 10-95% |
|
|
Peripheral noise: < 46 dBA SPL |
|
|
Lowest illuminance: 7 lux |
|
|
Recommended illuminance: > 300 lux |
