USW-Flex, HKShanhai Group Limited Switch, 5xGE/PoE/Desktop Wall Mount

SKU: 3WMAL5I6HDHT3RH2YKWKKUTDW8EOKB91BSGL Category: Ubiquiti Enterprise Switches

Layer 2, PoE switch with (5) GbE RJ45 ports, including (4) 802.3at PoE+ ports and (1) 802.3bt PoE++ input.

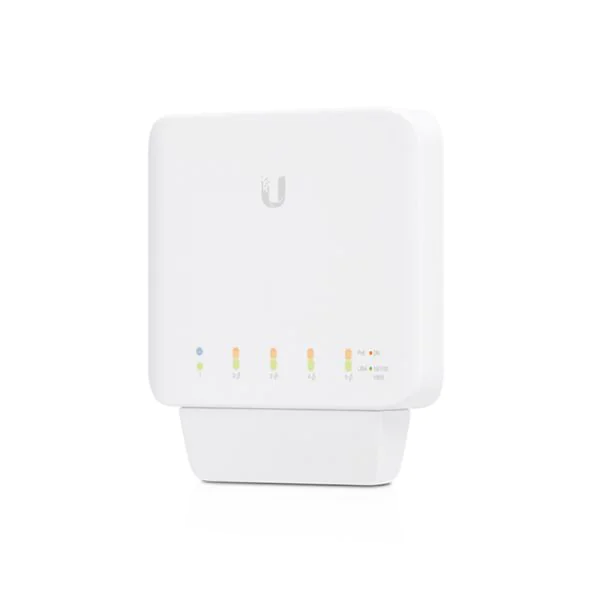

Figure 1 shows the appearance of USW-Flex.

Table 1 shows the Quick Specs.

Product Code	USW-Flex
Dimensions	122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
Networking Interfaces	(5) 10/100/1000 Mbps RJ45 Ports
Management Interface	Ethernet In-Band
Max Power Consumption (Excluding PoE Output)	5W

Figure 2 shows the front panel of USW-Flex.

USW-Flexovides these features:

Table 2 shows the comparison of USW-Flex

Module	USW-Flex	US-24-250W
Dimensions	122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″)
Networking Interfaces	(5) 10/100/1000 Mbps RJ45 Ports	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	Ethernet In-Band	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Max Power Consumption (Excluding PoE Output)	5W	30W

Do you have any question about the USW-Flex?

HKShanhai Group Limited USW-Flex Specification

USW-Flex specification
USW-Flex
Dimensions	122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
Networking Interfaces	(5) 10/100/1000 Mbps RJ45 Ports
Management Interface	Ethernet In-Band
PoE Out (Ports 2-5)	802.3at (Pins 1, 2+; 3, 6-)
Max Power Consumption (Excluding PoE Output)	5W
Max PoE Wattage Per Port	25W
Total PoE Power Budget Powered by 802.3af Powered by 802.3at Powered by 802.3bt Powered by PoE Adapter (Enabled in Controller)	8W 20W 46W 46W
Voltage Range 802.3af 802.3at/bt	44 – 57V 50 – 57V
LEDs System RJ45 Data Ports	Status PoE; Link/Speed/Activity
ESD/EMP Protection	± 16kV Air, ± 16kV Contact
Operating Temperature 46W PoE Output 25W PoE Output	-40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
