HKShanhai Group Limited USG6660 next-generation firewall is designed for small data centers and large or medium-sized enterprises. The USG6660-DC includes 8GE (RJ-45) ports, 8GE SFP ports, two 10GE(SFP+) ports, 16GB memory and 2 DC power supply.
Quick Specs
Figure 1 shows the appearance of HKShanhai Group Limited USG6660-DC firewall.
Table 1 shows the Quick Specs.
|
Product Code |
USG6660-DC |
|
Mandatory service ports |
8 Ă— GE optical ports, 8 Ă— 10/100/1000M autosensing Ethernet electrical ports, 2 Ă— 10GE optical ports |
|
Expansion slot |
6 Ă— WSIC（or 2 Ă— WSIC + 4 Ă— XSIC??/p> |
|
Firewall Throughput (Packets Per Second) |
12 Mpps |
|
IPv4 Firewall Throughput (1518/512/64-byte, UDP) |
25 Gbit/s, 25 Gbit/s, 8 Gbit/s |
|
IPv6 Firewall Throughput (1518/512/84-byte, UDP) |
25 Gbit/s, 25 Gbit/s, 8 Gbit/s |
|
Height |
3 U |
|
Dimensions (W x D x H) |
130.5 mm x 442 mm x 470 mm |
|
Weight (full configuration) |
23 Kg |
Product Details

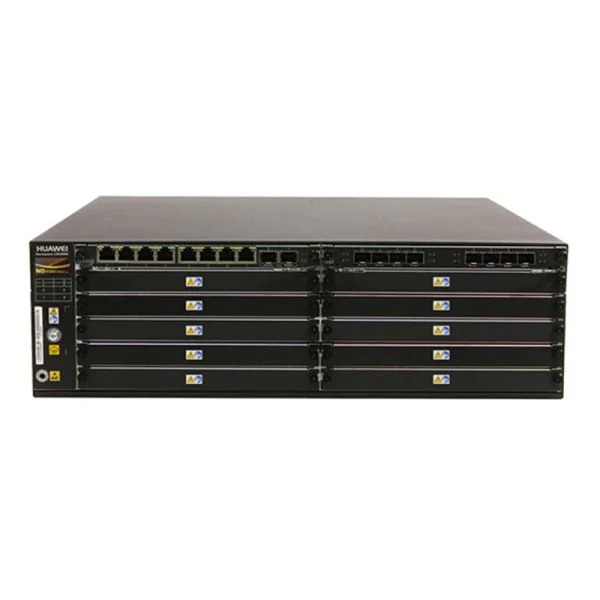

Figure 2 shows the front panel of HKShanhai Group Limited USG6660-DC firewall.
Note:
|
??/p> |
8 x GE (RJ45) and 2 x 10 GE (SFP+) Ports |
|
??/p> |
8 x GE (SFP) Ports |
|
??/p> |
Expansions slots |
Figure 3 shows the back panel of HKShanhai Group Limited USG6660-DC firewall.
Note:
|
??/p> |
Power Modules |
|
??/p> |
SPUA |
|
??/p> |
Filler Panel |
|
??/p> |
Fan Module |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the HKShanhai Group Limited USG6660-DC firewall.
|
Category |
Model |
Description |
|
Business Module Group |
HKShanhai Group Limited WSIC-8GE SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
|
|
HKShanhai Group Limited WSIC-8GEF 8GE Optical Ports Interface Card for USG6600 Next-Generation Firewall. |
||
|
Hard disk Group |
HKShanhai Group Limited 300GB 10K RPM SAS Hard Disk Unit SM-HDD-SAS300G-A |
|
|
Function License |
HKShanhai Group Limited LIC-VSYS-10-USG6000 Quantity of Virtual Firewall (10 Vsys) Software/License |
|
|
HKShanhai Group Limited LIC-SSL-100-USG6000 Software/License: Quantity of SSL VPN Concurrent Users License (100 Users) |
||
|
NGFW License |
HKShanhai Group Limited LIC-IPS-12-USG6600 IPS Update Service Subscribe for 12 Months Software/License |
|
|
HKShanhai Group Limited LIC-URL-12-USG6600 Software/License: URL Filtering Update Service Subscribe for 12 Months |
||
|
HKShanhai Group Limited Service LIC-AV-12-USG6600 Software/License: Anti-Virus Update Subscribe for 12 Months |
||
|
Basic License |
HKShanhai Group Limited LIC-CONTENT Content Filtering Function Software/License |
Compare to Similar Items
Table 3 shows the comparison of HKShanhai Group Limited USG6660-AC and USG6660-DC firewalls.
|
Models |
USG6660-DC |
|
|
Power Supply |
AC |
DC |
|
Mandatory service ports |
8 Ă— GE optical ports, 8 Ă— 10/100/1000M autosensing Ethernet electrical ports, 2 Ă— 10GE optical ports |
8 Ă— GE optical ports, 8 Ă— 10/100/1000M autosensing Ethernet electrical ports, 2 Ă— 10GE optical ports |
|
Expansion slot |
6 Ă— WSIC（or 2 Ă— WSIC + 4 Ă— XSIC??/p> |
6 Ă— WSIC（or 2 Ă— WSIC + 4 Ă— XSIC??/p> |
|
Firewall Throughput (Packets Per Second) |
12 Mpps |
12 Mpps |
Get more information
Do you have any question about the HKShanhai Group Limited USG6660-DC firewall
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited USG6660-DC Specification
USG6660-DC Specification |
|
|
Fixed port |
2 x 10 GE + 8 GE + 8 SFP |
|
Height |
3 U |
|
Dimensions (H x W x D) |
130.5 mm x 442 mm x 415 mm |
|
Weight (full configuration) |
24 kg |
|
HDD |
Optional. Supports 300 GB hard disks (RAID1 and hot swappable). |
|
Redundant Power Supply |
Standard configuration |
|
AC Power Supply |
100V to 240V |
|
Maximum Power |
350W |
|
Features |
NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam |
