The HKShanhai Group Limited USG6390-BDL-AC, next-generation firewall, is designed for Medium-sized Businesses and branch offices with 800 to 1000 users. It builds with 8GE (RJ-45) ports 4GB memory, and 1 power supply. It also includes IPS-AV-URL Function Group Update Service Subscribe 12 Months.
Quick Specs

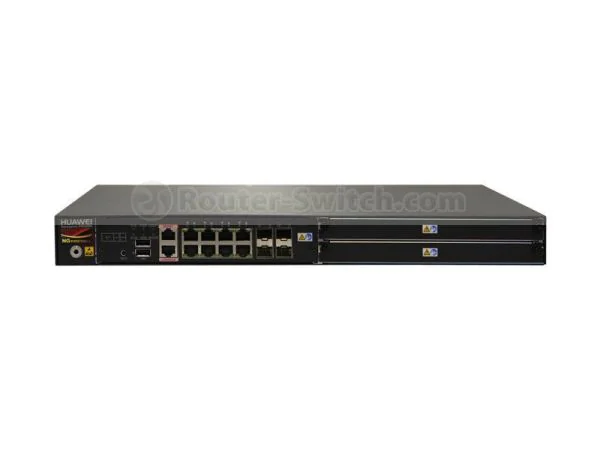

Figure 1 shows the appearance of HKShanhai Group Limited USG6390-BDL-AC firewall.
Table 1 shows the Quick Specs.
|
Product Code |
USG6390-BDL-AC |
|
Bundle Function |
IPS-AV-URL Function Group Update Service Subscribe 12 Months |
|
Mandatory service ports |
4 x 10GE optical ports, 8 x 10/100/1000M autosensing Ethernet electrical ports |
|
Expansion slot |
2 × WSIC |
|
Firewall Throughput (Packets Per Second) |
1.8 Mpps |
|
IPv4 Firewall Throughput (1518/512/64-byte, UDP) |
8/8/1.2 Gbit/s |
|
IPv6 Firewall Throughput (1518/512/84-byte, UDP) |
8/8/1.6 Gbit/s |
|
Height |
1 U |
|
Dimensions (W x D x H) |
442 mm × 421 mm × 44.4 mm |
|
Weight |
9.2 Kg |
Product Details
Figure 2 shows the front panel of HKShanhai Group Limited USG6390-BDL-AC firewall.
Note:
|
??/p> |
ESD Jack |
??/p> |
4 x 10GE optical ports |
|
??/p> |
RST Button |
??/p> |
2 x Expansion Slots |
|
??/p> |
2 × USB 2.0 Ports |
??/p> |
One Out-of-band Management Port |
|
??/p> |
One Console Port |
??/p> |
Slot Numbering Layout and Indicator Area |
|
??/p> |
8 × 10/100/1000M Autosensing Ethernet Electrical Ports |
Figure 3 shows the back panel of HKShanhai Group Limited USG6390-BDL-AC firewall.
This is a Schematic diagram for reference, not a real product.
Note:
|
??/p> |
Hard Drive Assembly (Optional) |
|
??/p> |
Power Module |
|
??/p> |
Slot for Optional Power Module |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the HKShanhai Group Limited USG6390-BDL-AC firewall.
|
Category |
Model |
Description |
|
Business Module Group |
HKShanhai Group Limited WSIC-8GE SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
|
|
HKShanhai Group Limited WSIC-2XG8GE 2*10GE Optical Ports+8GE Electric Ports Interface Card for USG6300 Next-Generation Firewall. |
||
|
Hard disk Group |
SM-HDD-SAS300G-B HKShanhai Group Limited 300GB 10K RPM SAS Hard Disk for 1U rack Gateway |
|
|
Option Power Group |
HKShanhai Group Limited Power-AC-B 170W AC power module |
|
|
Optical Transmitter Module Collection |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
|
HKShanhai Group Limited AR G3 Optical Transceiver, eSFP,GE,Single-mode Module(1310nm,40km,LC) |
||
|
Optical Transceiver, eSFP, GE, Multi-mode Module 850nm,0.5km,LC |
||
|
Function License |
HKShanhai Group Limited LIC-VSYS-10-USG6000 Quantity of Virtual Firewall (10 Vsys) Software/License |
|
|
HKShanhai Group Limited LIC-SSL-100-USG6000 Software/License: Quantity of SSL VPN Concurrent Users License (100 Users) |
||
|
Basic License |
HKShanhai Group Limited LIC-CONTENT Content Filtering Function Software/License |
Compare to Similar Items
Table 3 shows the comparison of HKShanhai Group Limited USG6390-AC and USG6390-BDL-AC firewalls.
|
Models |
USG6390-BDL-AC |
|
|
Bundle Function |
None |
IPS-AV-URL Function Group Update Service Subscribe 12 Months |
|
Mandatory service ports |
4 x 10GE optical ports, 8 x 10/100/1000M autosensing Ethernet electrical ports |
4 x 10GE optical ports, 8 x 10/100/1000M autosensing Ethernet electrical ports |
|
Expansion slot |
2 × WSIC |
2 × WSIC |
|
Firewall Throughput (Packets Per Second) |
1.8 Mpps |
1.8 Mpps |
Get more information
Do you have any question about the HKShanhai Group Limited USG6390-BDL-AC firewall
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited USG6390-BDL-AC Specification
USG6390-BDL-AC Specification |
|
|
Dimensions (H x W x D) |
44.4 mm x 442 mm x 421 mm |
|
Form Factor/Height |
1U |
|
Fixed Interfaces |
8 x GE (RJ45) + 4 x GE (SFP) |
|
USB 2.0 Port |
Supported |
|
Expansion Slot |
2 WSIC* |
|
Expansion I/O |
WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45) BYPASS |
|
Maximum Number of Interfaces |
24 x GE (RJ45) + 4 x GE (SFP) + 4 x 10 GE (SFP+) or 20 x GE (SFP) + 8 × GE (RJ45) |
|
MTBF |
11.96 years |
|
Weight (full configuration) |
8.6 kg |
|
Local Storage |
Optional: Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not) |
|
AC Power Supply |
100V to 240V, 50 Hz/60 Hz |
|
Power Consumption (average/maximum) |
56.13W/133.74W |
|
Heat Dissipation |
456 BTU/h |
|
Power Supplies |
Single 170W AC power supply; optional dual AC power supplies |
|
Operating Environment (temperature/humidity) |
Temperature: 0°C to 45°C (without optional HDD); |
|
Non-operating Environment |
Temperature: ??0°C to 70°C |
|
Operating Altitude (maximum) |
5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
|
Non-operating Altitude (maximum) |
5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
|
Noise |
63 dBA |
