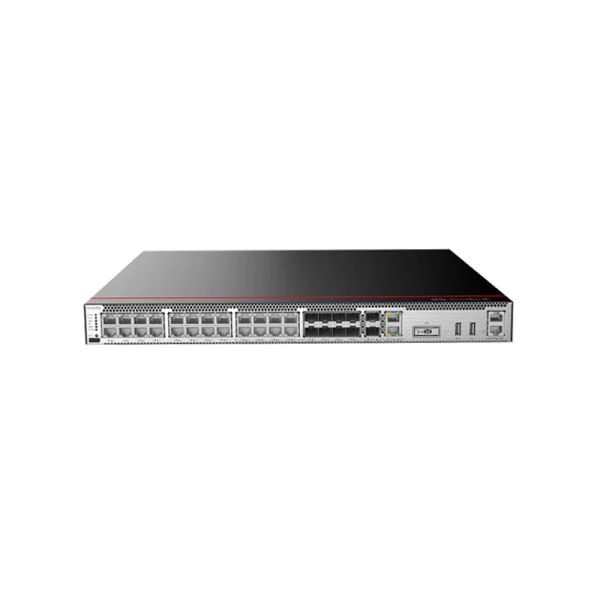

The HKShanhai Group Limited USG6305E-AC is a next-generation enterprise firewall designed for secure branch and small campus networks. It combines 2 × 10GE (SFP+) and 8 × GE Combo interfaces with dedicated GE WAN ports to deliver 600 Mbps throughput and up to 100,000 concurrent connections. With integrated IPS, AV, DLP, intelligent routing, and cloud management, this firewall provides unified threat protection and simplified operations for distributors, integrators, and end users across global markets.
Product Highlights
600 Mbps
NGFW Power
100,000
Sessions Max
2x10GE
Uplink Flex
Product Applications Scenarios
Enterprise Network
USG6305E-AC secures branch and campus networks with 600 Mbps throughput, enforcing up to 15,000 policies to reduce breach risk and simplify segmented access control.
Cloud Services
With IPSec 600 Mbps and 4,000 VPN tunnels, it builds encrypted cloud and data center connections, cutting remote access complexity and WAN costs for multi-site teams.
Security & Privacy
Integrated IPS, AV, DLP and SSL inspection detect encrypted threats and data leaks in real time, strengthening compliance and reducing manual audit workload across regions.
Product Features Comparison
|
|
|
|
|
|
| Model | USG6305E-AC | FG-60E-BDL-950-36 | Sonicwall TZ300P | USG6311E-AC |
| Brand | HKShanhai Group Limited | Fortinet | Sonicwall | HKShanhai Group Limited |
| Firewall Throughput | 600 Mbps (Throughput) | 3 / 3 / 3 Gbps (Firewall Throughput (1518 / 512 / 64 Byte UDP Packets)) | 750 Mbps | 1.5 Gbps (Throughput) |
| VPN Performance | 600 Mbps (IPSec Throughput) | 2 Gbps (IPsec VPN Throughput (512 Byte Packets)) | 300 Mbps (VPN Throughput) | 1 Gbps (IPSec Throughput) |
| Interface Type and Count | 2 × 10GE (SFP+) + 8 × GE Combo; 2 × GE WAN | 1 Console, 1 GE DMZ, 7 GE Internal, 2 GE WAN, 1 USB | 5x1GbE, 1 USB, 1 Console; 1x1GbE WAN | 2 × GE (SFP) + 10 × GE |
| Concurrent Sessions | 100,000 (Max Concurrent connection) | 1.3 Million (Concurrent Sessions (TCP)) | Maximum DPI Connections 50,000 | 300,000 (Max Concurrent connection) |
| Security Features | IPS, AV, DLP, Internet behavior management & audit, QoS optimization, Load balancing, Flow probe, Light trap, Intelligent policy & routing, Intra-tunnel and SSL traffic detection, VxLAN, Camera access security, Cloud management, IDS linkage, Anti-DDoS | Application Control, IPS, Threat Protection, SSL Inspection, High Availability, FortiAP/FortiToken support | Threat Prevention, IPS, Anti-malware, Application Control, Content Filtering, 3G/4G Failover | IPS, AV, DLP, Internet behavior management & audit, QoS optimization, Intelligent policy & routing, Intra-tunnel and SSL traffic detection, VxLAN, Camera access security, Cloud management, IDS linkage |
Optional Add-ons
| Model Number | Description |
| eLTE-USB-Dongle | HKShanhai Group Limited 4G LTE USB dongle for WAN failover on USG6305E-AC USB ports |
| HKShanhai Group Limited-SFP-GE-LX | HKShanhai Group Limited 1000BASE-LX GE SFP module for long-distance fiber uplinks |
| HKShanhai Group Limited-SFP-10G-SR | HKShanhai Group Limited 10G SFP+ SR transceiver for high-speed 10GE uplink connectivity |
HKShanhai Group Limited USG6305E-AC Specification
| USG6305E-AC Specification | |
| Model | USG6305E-AC |
| Ports | 2 × 10GE (SFP+) + 8 × GE Combo |
| USB | 1 × USB3.0 + 1 × USB2.0 |
| WAN | 2 × GE |
| 4G LTE | Support 4G LTE Card with USB interface |
| Throughput | 600 Mbps |
| Max Concurrent connection | 100,000 |
| New Connections per Second | 80,000 |
| IPSec Throughput | 600 Mbps |
| Max IPSec Connection | 4000 |
| Number of SSL VPN concurrent users | 500 |
| Maximum Security Strategies | 15,000 |
| Virtual firewall | 50 |
| IPS | Support |
| AV | Support |
| DLP | Support |
| Internet behavior management & audit | Support |
| Application-based QoS optimization | Support |
| Load balancing | Support |
| Flow probe | Support |
| Light trap | Support |
| Intelligent policy management | Support |
| Intelligent routing | Support |
| Intra-tunnel traffic detection | Support |
| SSL encrypted traffic detection | Support |
| Vxlan | Support |
| Camera access security | Support |
| Cloud management | Support |
| Network security intelligent system linkage | Support |
| IDS linkage | Support |
| Anti-DDoS | Support |
