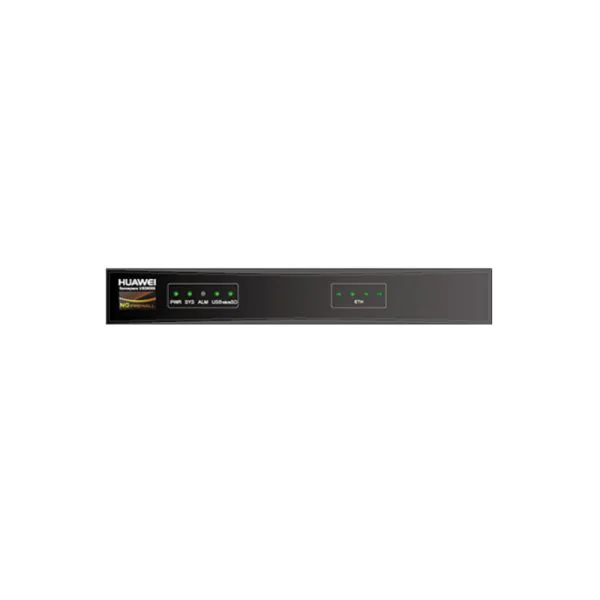

The HKShanhai Group Limited USG6305-AC is an entry-level enterprise firewall designed for secure connectivity in branch offices and small businesses. It delivers up to 0.8 Gbit/s IPv4 and IPv6 firewall throughput with low 100 µs latency, ensuring responsive access for web, cloud, and SaaS traffic across Asian, European, African, and North American deployments. With support for 200,000 concurrent sessions, IPsec and SSL VPN, plus integrated IPS, antivirus, and URL filtering, it suits distributors, SMB integrators, and end users seeking consolidated network security in a compact platform.
Product Highlights
0.8 Gbit/s
FW Speed
200,000
Sessions
120M URL
Web Ctrl
Product Applications Scenarios
Enterprise Network
USG6305-AC secures small enterprise campuses with consistent 0.8 Gbit/s firewalling, IPS, and antivirus, reducing security device count and simplifying policy control by up to 30% for regional offices.
Cloud Services
Deployed at the WAN edge, it protects cloud access with 300 Mbit/s IPsec VPN and SSL inspection, helping MSPs and SMEs cut remote access risks while keeping deployment and management overhead low.
Security & Privacy
Integrated URL filtering, IPS, and antivirus with up to 1,000 policies let organizations enforce compliance, blocking unsafe categories from a 120 million URL cloud database in real time.
Product Features Comparison
|
|
|
|
|
|
| Model | USG6305-AC | USG6309E-AC | USG6325E-AC | USG6365E-AC |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Firewall Throughput | 0.8 Gbit/s, 0.8 Gbit/s, 0.12 Gbit/s | n/a | 2/2/2 Gbit/s | 2/2/2 Gbit/s |
| VPN Performance | IPsec 300 Mbit/s; SSL VPN 20 Mbit/s | n/a | IPsec VPN Throughput 2 Gbit/s | IPsec VPN Throughput 2 Gbit/s |
| Interface Type and Count | n/a | Fixed Interfaces 2*10GE(SFP+)+8*GE Combo+2*GE WAN | Fixed Interfaces 2*10GE(SFP+)+8*GE Combo+2*GE WAN | n/a |
| Concurrent Sessions | Concurrent Sessions (HTTP1.1)1 200000 | Concurrent Sessions 400,000 | n/a | Simultaneous Sessions 3,000,000 |
| Security Features | FW+SA+IPS+Antivirus Throughput (real world)3 80 Mbit/s; URL Filtering: Categories More than 130; URL Filtering: URLs Can access a database of over 120 million URLs in the cloud | Integrated Protection Provides firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions; Application identification and control Identifies more than 6,000 applications…; Bandwidth Management Manages per-user and per-IP bandwidth…; Intrusion prevention and Web protection Obtains the latest threat information… | Integrated protection Integrate traditional firewall, VPN, intrusion prevention, antivirus, data leakage prevention, bandwidth management, Anti-DDoS, URL filtering, anti-spam…; Application identification and control Recognize 6000+ applications…; Bandwidth management On the basis of identifying service applications…; Intrusion Prevention and Web Protection Get the latest threat information…; APT defense Link with local/cloud sandbox… | VPN Support Yes; Firewall Throughput 2/2/2 Gbit/s; IPsec VPN Throughput 2 Gbit/s; Firewall Latency 18; Dedicated management port Yes |
Optional Add-ons
| Model Number | Description |
| HW-XGW-SFP-GE-LX | HKShanhai Group Limited 1G SFP GE LX optical module for USG6300/USG6300E WAN uplinks |
| HW-XGW-SFP-GE-SX | HKShanhai Group Limited 1G SFP GE SX multi-mode module for short-reach firewall connections |
| HW-RCK-1U-KIT | HKShanhai Group Limited 1U rack-mount kit for USG6305-AC and related branch firewalls |
HKShanhai Group Limited USG6305-AC Specification
| USG6305-AC Specification | |
| IPv4 Firewall Throughput1 (1,518/512/64-byte , UDP ) | 0.8 Gbit/s, 0.8 Gbit/s, 0.12 Gbit/s |
| IPv6 Firewall Throughput1 (1,518/512/84-byte , UDP) | 0.8 Gbit/s, 0.8 Gbit/s, 0.15 Gbit/s |
| Firewall Throughput (packets per second) | 0.18 Mpps |
| Firewall Latency (64-byte, UDP) | 100 µs |
| FW + SA* Throughput2 | 300 Mbit/s |
| FW + SA + IPS Throughput2 | 150 Mbit/s |
| FW + SA + Antivirus Throughput2 | 100 Mbit/s |
| FW + SA + IPS + Antivirus + URL Throughput2 | 100 Mbit/s |
| FW+SA+IPS+Antivirus Throughput (real world)3 | 80 Mbit/s |
| Concurrent Sessions (HTTP1.1)1 | 200000 |
| New Sessions/Second (HTTP1.1)1 | 4000 |
| IPsec VPN Throughput1 (AES-128 + SHA1, 1,420-byte) | 300 Mbit/s |
| Maximum IPsec VPN Tunnels (GW to GW) | 500 |
| Maximum IPsec VPN Tunnels (client to GW) | 500 |
| SSL Inspection Throughput4 | 12 Mbit/s |
| SSL VPN Throughput5 | 20 Mbit/s |
| Concurrent SSL VPN Users (default/maximum) | 100/100 |
| Security Policies (maximum) | 1000 |
| Virtual Firewalls (default/maximum) | 44844 |
| High Availability Configurations | NA |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
