HKShanhai Group Limited RH2285V2 8HD Model (2*E5-2407 CPU,4*8GB Mem,4*300GB SAS, DVD-RW,6*GE,SR120,2*460W AC PS).
Quick Specs

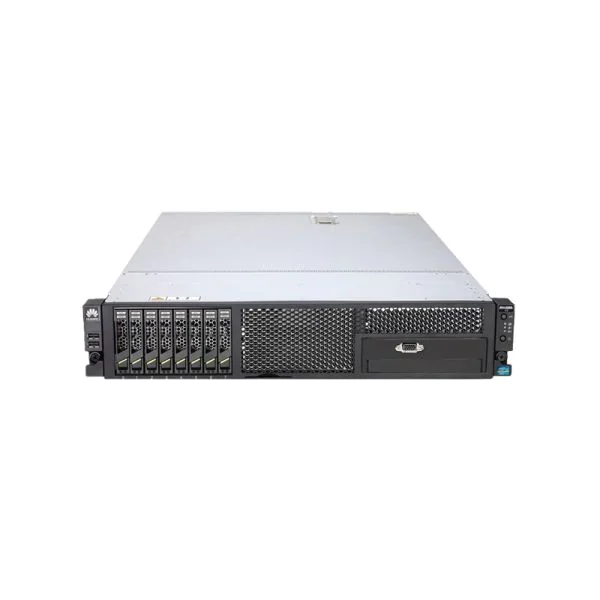

Figure 1 shows the appearance of UC0M05SRSC.
Table 1 shows the Quick Specs.
|
Product Code |
UC0M05SRSC |
|
Part Number |
02310YKJ |
|
Description |
RH2285V2 8HD Model (2*E5-2407 CPU,4*8GB Mem,4*300GB SAS, DVD-RW,6*GE,SR120,2*460W AC PS) |
|
Attributes |
Hardware |
|
Category |
Outsourcing |
|
Product Line |
Unified Communications and Collaboration |
|
Product Family |
Unified Communications |
|
Product Series |
eSpace Audio Recorder (CRS V3) |
|
UOM |
PCS |
|
Pack Weight(kg) |
30 |
|
Pack Volume(m^3) |
0.162221 |
|
Pack Dimension (D*W*H mm) |
1021*628*253 |
|
Net Dimension (D*W*H mm) |
740*447*86 |
|
Typic Power(W) |
140 |
Product Details
Figure 2 shows the front panel of UC0M05SRSC.
Note:
|
??/p> |
USB port |
|
??/p> |
UID button/indicator |
|
??/p> |
Power button/indicator |
|
??/p> |
VGA port |
|
??/p> |
Built-in DVD-ROM (configured when eight hard disks are required) |
|
??/p> |
Label (including ESN label) |
|
??/p> |
Hard disk (numbered 0 to 7 from left to right) |
Compare to Similar Items
Table 2 shows the comparison of UC0M05SRSC and UC0M05SRSD.
|
Product Code |
UC0M05SRSC |
|
|
Part Number |
02310YKJ |
02311DVK |
|
Description |
RH2285V2 8HD Model (2*E5-2407 CPU,4*8GB Mem,4*300GB SAS, DVD-RW,6*GE, SR120,2*460W AC PS) |
RH2285V2 8HD Model (2*E5-2407 CPU,4*8GB Mem,8*300GB SAS, DVD-RW,6*GE, SR120,2*460W AC PS) |
Get more information
Do you have any question about the UC0M05SRSC
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited UC0M05SRSC Specification
RH2285 V2 Rack Server |
|
|
Form factor |
2U rack server |
|
Number of processors |
1 or 2 |
|
Processor |
Intel® Xeon® E5-2400 series Core options: 4, 6, or 8 Maximum dominant frequency: 2.4 GHz(6 Cores) or 2.3GHz (8 Cores) L3 cache: 20 MB |
|
Memory |
12 DDR3 RDIMMs/LRDIMMs, up to 384 GB |
|
Internal storage |
Options: ??8 x 2.5″ SAS/SATA HDDs or SSDs, up to 8 TB ??12 x 3.5″ SAS/SATA HDDs and 2 x 2.5″ SAS/SATA HDDs or SSDs, up to 38 TB ??26 x 2.5″ SAS/SATA HDDs or SSDs, up to 26 TB |
|
RAID support |
RAID 0, 1, 10, 5, 50, 6, and 60 RAID cache: 512 MB or 1 GB Power-off protection: ??BBU (3 x 24 hours) ??Supercapacitor |
|
LOM network port |
2 onboard GE ports |
|
Expansion slot |
Up to 5 PCIe 3.0 slots 1 processor: ??1 PCIe 3.0 x8 ?? PCIe 3.0 x4 ??1 PCIe slot for a RAID controller card 2 processors: ??1 PCIe 3.0 x8 ??1 PCIe 3.0 x4 ??1 PCIe slot for a RAID controller card ??(Optional) 1 PCIe 3.0 x16 ??(Optional) 1 PCIe 3.0 x8 |
|
USB port |
6 (front: 2 , rear: 2, built-in: 2) |
|
Fan module |
4 hot-swappable counter-rotating fan modules in N+1 redundancy mode |
|
PSU |
2 hot-swappable 1+1 redundant PSUs: ??AC: 460 W or 800 W ????8 V DC: 800 W |
|
Management |
UEFI HKShanhai Group Limited iMana, support IPMI, SOL, KVM over IP, and virtual media One 10/100 Mbit/s RJ45 management network port |
|
Operating systems supported |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server CentOS Solaris Oracle Enterprise Linux / Oracle Server VM Citrix XenServer VMware ESX / VMware ESX i |
|
Power supply |
110 V/220 V AC or ??8 V DC |
|
Operating temperature  |
5ºC??0ºC (41ºF??04ºF) |
|
Dimensions |
Height: 87.5 mm (3.44 in.) Width: 447 mm (17.60 in.) Depth: 740 mm (29.13 in.) |
