Small and sleek, yet powerful, the 802.11ac 4×4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.
Quick Specs

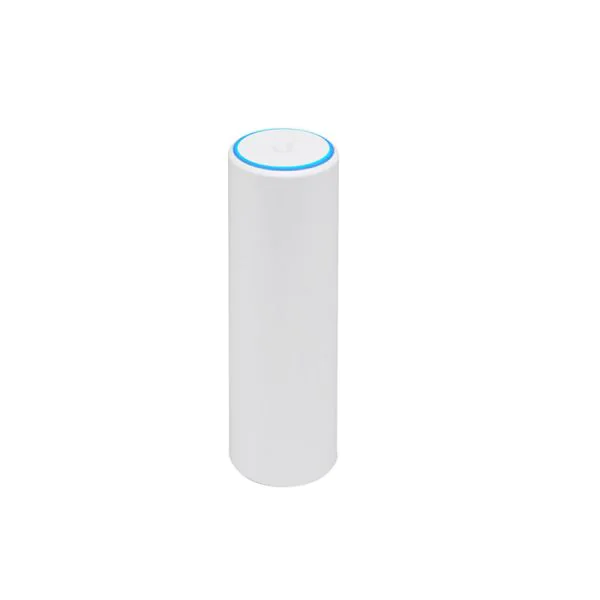

Figure 1 shows the appearance of UAP-FlexHD.
|
SKU |
UAP-FlexHD |
|
Dimensions |
48.50 x 159.49 mm (1.90 x 6.28″) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Button |
Reset |
|
LED |
System / Status |
|
Power Method |
802.3af |
|
Power Supply |
802.3af |
|
Max Power Consumption |
10.5W |
|
Voltage Range |
44 – 57VDC |
Product Details
Figure 2 shows the front panel of UAP-FlexHD.
Figure 3 shows the back panel of UAP-FlexHD.
??02.11ac Wave 2 Technology
?? GHz Radio: 802.11ac Wave 2, 4×4 MU-MIMO with Radio Rate of 1.733 Gbps
??.4 GHz Radio 802.11n: 2×2 MIMO with Radio Rate of 300 Mbps
â‘£Indoor and Outdoor Use
⑤Tabletop, Wall, and Pole Mounting Brackets Included
â‘¥Seamless Integration and Management with UniFi Network Solution
Table 2 shows the supported devices.
|
Supported Devices |
|
|
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
|
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
|
|
UBNT UniFi USG-PRO-4 Security Gateway USG Enterprise Wired Router, 1 Gigabit Ethernet, Dual-Core, 1G |
|
|
UBNT Wireless AP, AC Gen2 Controller, UCK-G2-Plus, Remote Management |
|
|
UBNT UniFi UAP-FlexHD Ceiling Mount, Installation Accessories |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Name |
UAP-FlexHD |
||
|
Dimensions |
48.50 x 159.49 mm |
175.7 x 43.2 mm |
160 x 31.45 mm |
|
Environment |
Indoor and Outdoor |
Indoor |
Indoor |
|
2.4 GHz Radio Rate |
 300 Mbps |
450 Mbps |
300 Mbps |
|
5 GHz Radio Rate |
1733 Mbps |
867 Mbps |
867 Mbps |
|
PoE Mode |
802.3af & 48V POE |
802.3af/A PoE & 24V PoE |
802.3af/A PoE & 24V PoE |
|
Networking Interface |
(1)10/100/1000 Ethernet Port |
(1)10/100/1000 Ethernet |
(1)10/100/1000 Ethernet |
Get More Information
Do you have any question about the UAP-FlexHD?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited UAP-FlexHD Specification
UAP-FlexHD Specification |
|
|
Dimensions |
48.50 x 159.49 mm (1.90 x 6.28″) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Button |
Reset |
|
LED |
System / Status |
|
Power Method |
802.3af |
|
Power Supply |
802.3af |
|
Max Power Consumption |
10.5W |
|
Voltage Range |
44 – 57VDC |
|
Operating Frequency |
2.4 GHz |
|
Max TX Power EIRP |
2.4 GHz: 23 dBm |
|
Throughput |
2.4 GHz: 300 Mbps |
|
Antenna Gain |
2.4 GHz: 1.6 dBi |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac/ac-wave2 |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
Mounting |
Ceiling / Pole / Tabletop / Wall |
|
Operating Temperature |
-30 to 70° C (-22 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
