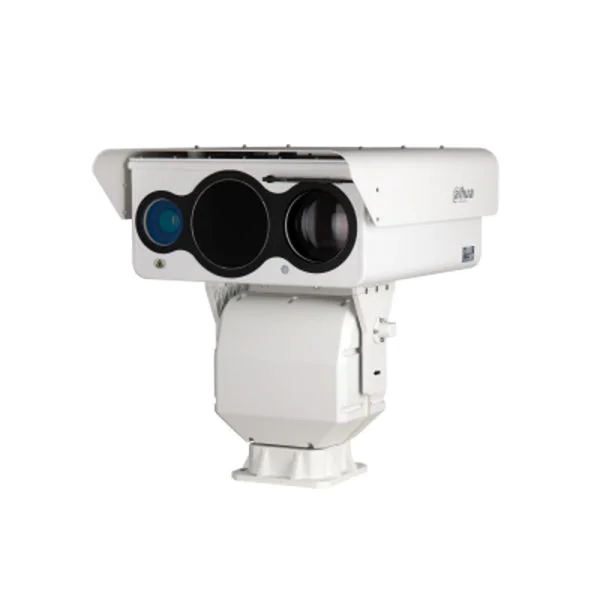

The Dahua TPC-ACPT8620C-B is a high-end Thermal Network Anti-corrosion Tribrid PTZ Camera designed for advanced surveillance requirements. This cutting-edge camera provides superior thermal imaging, enhanced for anti-corrosive environments, making it ideal for industries needing robust and precise monitoring solutions.
Quick Spec
| Brand: | Dahua |
| Model: | TPC-ACPT8620C-B |
| Type: | Thermal Network Anti-corrosion Tribrid PTZ Camera |
| Resolution: | 640×512 |
| Zoom: | 30x Optical |
Product Features
- Advanced thermal imaging with 640×512 resolution.
- 30x optical zoom capability for detailed surveillance.
- Anti-corrosion design suitable for harsh industrial environments.
- Integrated tribrid technology supporting thermal, visible, and P/T control.
- Smart video analytics including intrusion detection and line crossing.
Product Applications
- Oil and gas facilities where high corrosion resistance is essential.
- Maritime environments needing robust surveillance against harsh weather.
- Industrial plants requiring precise monitoring and safety compliance.
Supported Options
| Mounting Bracket: | DH-PFA150 |
| Power Supply: | DH-PFM320D-015 |
| Junction Box: | DH-PFA121 |
Compare to Similar Items
| Parameter | Similarity Item 1 (Model XYZ123) | Similarity Item 2 (Model ABC456) | Similarity Item 3 (Model DEF789) |
| Resolution | 640×480 | 800×600 | 320×240 |
| Zoom | 25x Optical | 20x Optical | 15x Optical |
| Anti-corrosion | Standard | Enhanced | Not Applicable |
Get more information
For further information about the Dahua TPC-ACPT8620C-B, including pricing and availability, please contact us via Live Chat or at sales@router-switch.com.
Dahua TPC-ACPT8620C-B (only for project) Specification
TPC-ACPT8620C-B (only for project) Specifications |
|
| Brand | Dahua |
| Model | TPC-ACPT8620C-B (only for project) |
| Image Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 x 512 |
| Lens Type | Thermal: 35mm; Optical: 4.8mm~154mm |
| Field of View | Thermal: 17.7x 14.2; Optical: 63.2~2.0 |
| IR Distance | Up to 200m |
| Pan Range | 0~360Endless |
| Tilt Range | -90~+90 |
| Day/Night | IR-Cut Filter with Auto Switch |
| Video Compression | H.265, H.264, MJPEG |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP |
| Audio Input | 1 Channel In |
| Audio Output | 1 Channel Out |
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Power Supply | AC24V/3A, DC12V/5A |
| Operating Temperature | -40C ~ +70C |
| Dimensions | 465.6mm x 423.7mm x 256.9mm |
| Storage | Micro SD, Max 256GB |
