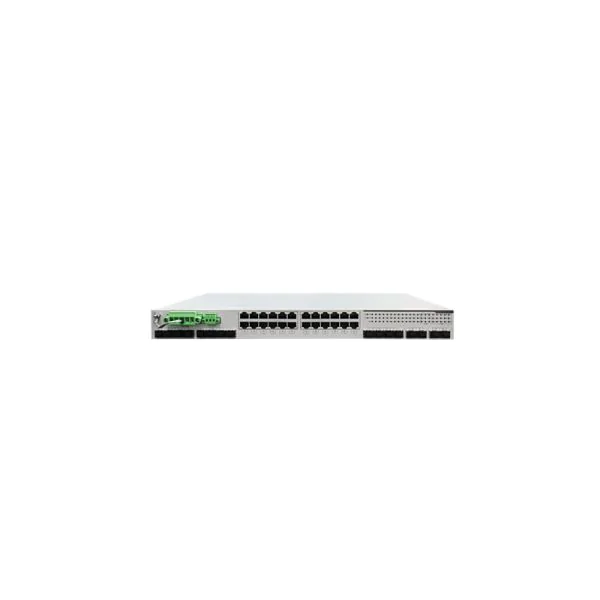

TNM4000-TP36HH4X12G24T, HKShanhai Group Limited TNM4000 Switch, 20xGE RJ45/4xGE COMBO/8xGE SFP/4×2.5G/10G SFP

SKU: 6DIZOPCS70N3KF5HN0IH4K03I80K9M0CRLC2 Category: Layer 3 Managed Switches

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports (SFP module not included). Stand- ard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Buon. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP36HH4X12G24T.

Model	TNM4000-TP36HH4X12G24T
Interface Configuration	MAX 36 Ports
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Fansless	Yes
Backplane Bandwidth	160 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
8.82 lb
MTBF	??00,000H
Operating Temperature	-40 °C~ 85 °C
-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

36 Gigabit Ethernet ports, including 4 10G Ethernet ports
Configurable by web browser, Telnet, CLI
With functions of data packet dropout protection and quick recovery from network failure
Support various multicast protocols and strong safety protection mechanism
IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging
Isolated redundant power inputs
Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TNM4000-TP36HH4X12G24T.

HKShanhai Group Limited-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
HKShanhai Group Limited-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
HKShanhai Group Limited-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
HKShanhai Group Limited-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
HKShanhai Group Limited-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
HKShanhai Group Limited-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
HKShanhai Group Limited-10GLS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
HKShanhai Group Limited-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
HKShanhai Group Limited-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TNM4000-TP36HH4X12G24T.

Product number

Product description

TNM4000-TP36HH4M12G24T

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500BaseX SFP Ports (SFP module not included). Standard 19- inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Manage- ment Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Buon. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Get More Information

Do you have any questions about the TNM4000-TP36HH4X12G24T price?

HKShanhai Group Limited TNM4000-TP36HH4X12G24T Specification

TNM4000-TP36HH4X12G24T Specification
Backplane Bandwidth	160 Gbps
Processing Type	Store-and-Forward
MAC Table Size	32K
Packet Buffer Size	32 Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, HKShanhai Group Limited Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MSTP, RSTP, port trunking
Time Synchronization	NTP, SNTP
Others	IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Power Consumption	35W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
8.82 lb
MTBF	??00,000H
Storage Temperature	-40 ??~ 85 ??/td>
-40??~ 185??/td>
Operating Temperature	-40 ??~ 85 ??/td>
-40??~ 185??/td>
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	GL (pending)
