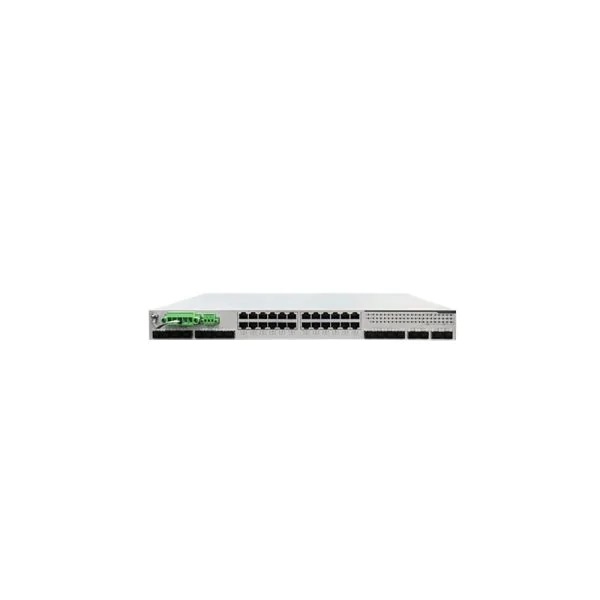

36-port Industrial Backbone Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8 802.3af/at PoE/PoE+/PoE++ 10/100/1000BaseT ports, 12 802.3 af/at PoE/PoE+ 10/100/1000BaseT ports, 4 802.3 af/at PoE/ PoE+ 100/1000Base(X/T) COMBO ports, 8 100/1000BaseX SFP ports, and 4 100/1000/2500/10000BaseX SFP ports (SFP module not included). Standard 19-inch Rack-Mount and 1U high, 1 Management Ethernet Port and 1 Man- agement Serial CLI port, 1 Alarm Relay port (250VAC/125VDC,
2A@250VAC / 2A@30VDC), 1 SD slot, and 1 RST Buon. IP40 Protection Class, Operating temperature from -40°C to +75°C. Dual 48-54VDC power inputs.
Quick Spec
Table 1 shows the quick spec of the TNM4000-TP36FF4X12G24P.
| Model | TNM4000-TP36FF4X12G24PÂ |
| Interface Configuration | MAX 36 Ports |
| Input Voltage | 48-54VDC, dual power inputs |
| Fansless | Yes |
| Backplane Bandwidth | 160 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ??00,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending)Â |
| Shipbuilding Industry | GL (pending) |
Product Features
Configurable by web browser, Telnet, CLI
With functions of data packet dropout protection and quick recovery from network failure
Support various multicast protocols and strong safety protection mechanism
IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging
Support IEEE 802.3af/at compliant PoE
Each PoE port provides up to 30W output power
PoE management: PoE device detection, PoE power management
Isolated redundant power inputs
Fanless, -40°C to 75°C operating temperature range
Supported Options
Table 2 shows the supported options of the TNM4000-TP36FF4X12G24P.
| MAC-M480-48 | 480W Industrial DIN-Rail Power Supply Input: 90~264Vac or 127~370Vdc，Output: 48Vdc/10A/480W??-25°C to +70°C |
| HKShanhai Group Limited-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| HKShanhai Group Limited-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| HKShanhai Group Limited-G25-GLX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-G25-GEX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| HKShanhai Group Limited-G25-GZX | Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| HKShanhai Group Limited-10GLS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM |
| HKShanhai Group Limited-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM |
Compare to Similar Items
Table 3 shows the comparison to similar items of the TNM4000-TP36FF4X12G24P.
| Product number | Product description |
| TNM4000-TP36FF4M12G24P | 36-port Industrial Backbone Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8 802.3af/at PoE/PoE+/PoE++ 10/100/1000BaseT ports, 12 802.3 af/at PoE/PoE+ 10/100/1000BaseT ports, 4 802.3 af/at PoE/ PoE+ 100/1000Base(X/T) COMBO ports, 8 100/1000BaseX SFP ports, and 4 100/1000/2500BaseX SFP ports (SFP module not included). Standard 19- inch Rack-Mount and 1U high, 1 Management Ethernet Port and 1 Manage- ment Serial CLI port, 1 Alarm Relay port (250VAC/125VDC, 2A@250VAC / 2A@30VDC), 1 SD slot, and 1 RST Buon. IP40 Protection Class, Operating temperature from -40°C to +75°C. Dual 48-54VDC power inputs. |
| RKS-G4028-L3-PoE-4GS-HV-T | 4 x GX SFP ??4 x GE (POE)??40 to 75°C |
Get More Information
Do you have any questions about the TNM4000-TP36FF4X12G24P price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited TNM4000-TP36FF4X12G24P Specification
| TNM4000-TP36FF4X12G24P Specification | |
| Backplane Bandwidth | 160 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 32K |
| Packet Buffer Size | 32 Mbti |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M;Â 14,880,000 pps/10000MÂ |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, HKShanhai Group Limited Pri- vate MIBs |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAPÂ |
| Redundancy | MSTP, RSTP, port trunking |
| Time Synchronization | NTP, SNTP |
| Others | IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 48-54VDC, dual power inputs |
| Power Consumption | 35W(Without PD) |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP30; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ??00,000H |
| Storage Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Operating Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | GL (pending) |
