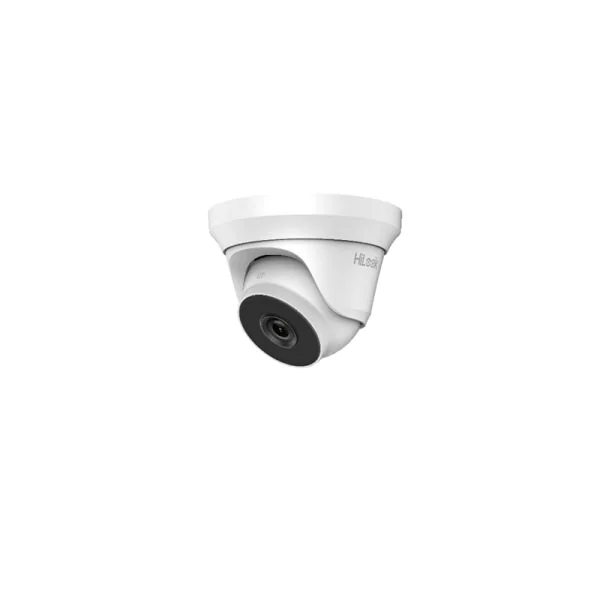

The Hikvision THC-T220-M is a highly efficient 2 MP Fixed Turret Camera designed to deliver superior imaging in a variety of surveillance scenarios. This camera is equipped with advanced features that ensure clear and detailed video capture, making it an optimal choice for security purposes.
Quick Spec
| Image Sensor | 2 MP CMOS |
| Lens Type | Fixed 2.8 mm |
| IR Range | Up to 20 meters |
| Day & Night | IR cut filter with auto switch |
| Video Compression | H.265+/H.265 |
Product Features
- High Definition 1080p Output
- True Day/Night, Smart IR
- EXIR 2.0: Advanced infrared technology with long IR range
- Weather-proof IP67 rating for indoor and outdoor use
- Easy installation with 3-axis adjustment
Product Applications
- Retail Stores: Monitor entrances, exits, and sales floors for enhanced security.
- Office Buildings: Keep an eye on lobbies, hallways, and common areas.
- Residential Areas: Safeguard perimeters and critical access points.
Supported Options
| Mounting Bracket | DS-1272ZJ-110 |
| Junction Box | DS-1260ZJ |
| Conduit Base | DS-1280ZJ-M |
Compare to Similar Items
| Model | Difference |
| Hikvision THC-T120-PC | 1 MP resolution, shorter IR range |
| Hikvision THC-T240-M | 4 MP resolution, similar IR range |
| Hikvision DS-2CE56D8T-IRM | High sensitivity mode, same resolution |
Get more information
Check Hikvision THC-T220-M price and THC-T220-M datasheet, buy Hikvision THC-T220-M series with the best price and fast shipping. Free Live Chat is supported. For further information, contact us through Live Chat or email us at sales@router-switch.com.
Hikvision THC-T220-M Specification
THC-T220-M Specifications |
|
| Brand | Hikvision |
| Model | THC-T220-M |
| Camera Type | Fixed Turret Camera |
| Resolution | 2 MP |
| Lens | 2.8 mm / 4 mm fixed lens |
| Day/Night Mode | IR Cut Filter with Auto Switch |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Range | Up to 30 meters |
| Video Compression | H.264, H.265 |
| Frame Rate | Up to 30 fps @ 1080p |
| Operating Conditions | -40C to 60C |
| Power Supply | 12 VDC 25% |
| Power Consumption | Max. 4 W |
| Weather Proof Rating | IP67 |
| Interface | 1 RJ45 10M/100M Ethernet Interface, 1 RS485 Interface |
| Dimensions | ?110 mm 93.2 mm |
| Signal System | PAL/NTSC |
| Remote Monitoring | Web Viewer, CMS (DSS/PSS) & DMSS |
| Audio | 1 input, 1 output |
| Local Storage | MicroSD (up to 128 GB) |
