HKShanhai Group Limited AI Server Promotion Bundle #8 is designed specifically for the GPU SuperServer SYS-821GE-TNHR, a highly flexible and scalable server solution designed to meet the needs of modern data centers and high-performance computing applications. This bundle includes the following products:
- 1 x Standard hardware warranty for 1 year (GPUs not included – major on-site services required for warranty)
- 2 x SPR 8468 2P 48C 2.1G 350W 105MB BI(1000)E5 4677
- 32 x 64GB DDR5 4800 ECC Registered
- 1 x 5400 PRO 480GB, SATA 2.5″, 3D TLC, 1.5DWPD, 7mm
- 4 x 7450 PRO 3.8TB NVMe PCIe 4.0 3D TLC 15mm 1DWPD
- 8 x Nvidia 900-9X766-003N-ST0 PCIe 1 port IB NDR200OSFP Gen5x16
- 2 x Socket ELGA4677.E1AXCC Carrier.DG 1.0.ROHS
- 1 x Data Center Management Pack (per-node license)
- 1 x 2 port 10GbE RJ45 Intel X550-AT2, Gen3 x4 LP
- 1 x NIC adapter board (midplane rear) for Delta-Next GPU systems
- 1 x NIC adapter board with PLX switch for Delta-Next GPUsys
- 2 x BLADE PWS power cables C-19 to C-20, PBF
- 1 x GenZ 2C+2 mounting holes to SlimSASx8, 21cm, 31AWG, RoHS
- 4 x MCIO x8 (STR to STR). 55CM. 30AWG. RoHS
- 1 x MicroHi, (2×4 to 2×4), PH3.0, 40CM, 8A pin, 18AWG, ROHS

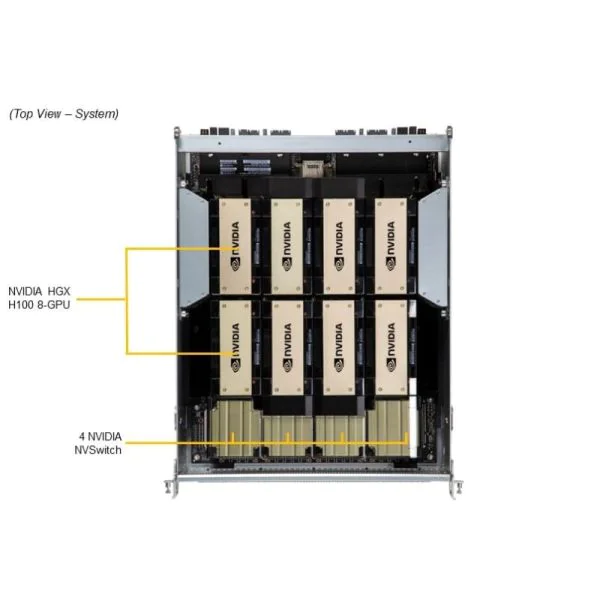

- 1 x NVIDIA DELTA-NEXT HGX GPU baseboard, 8 H100 80GB SXM5

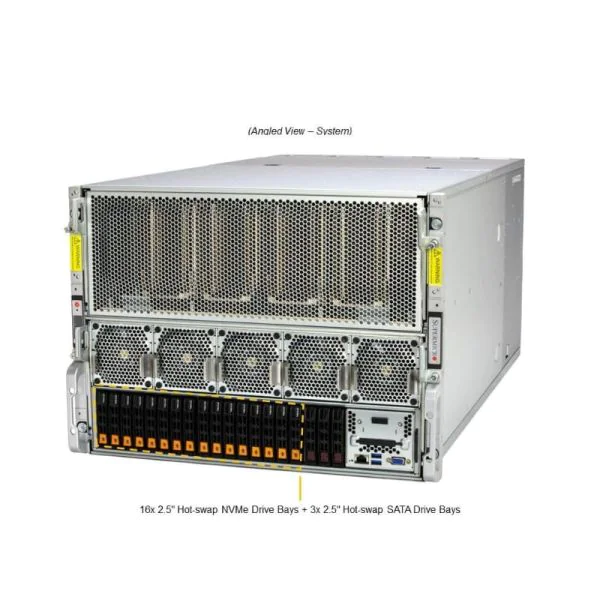

- 5 x black gen-3 hot-swap 2.5″ tool-less HDD trays (clam shell design)
- 2 x AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45
SYS-821GE-TNHR Product Features
- Supports 5th/4th Generation Intel® Xeon® Scalable Processors;

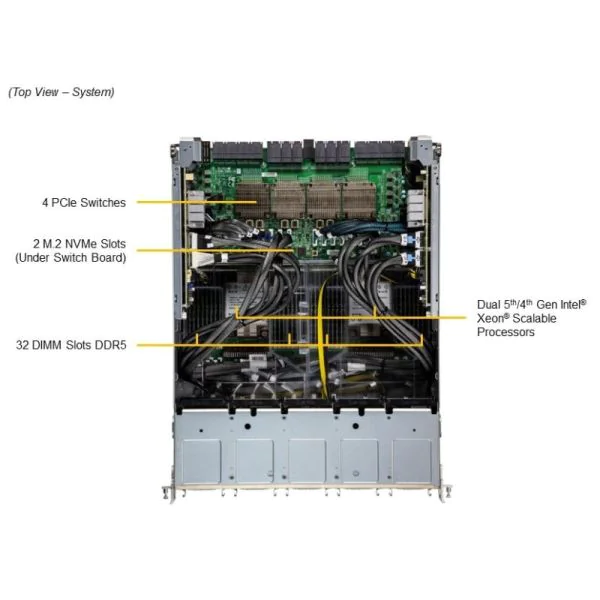

- 32 DIMM slots, up to 8TB: 32x 256GB DRAM Memory Type: 5600MTs ECC DDR5;
- 8x PCIe Gen 5.0 X16 LP, 2x PCIe Gen 5.0 X16 FHHL slots, 2x PCIe Gen 5.0 X16 FHHL slots (optional);
- Flexible networking options;
- 2x M.2 NVMe for boot drives only, 16x 2.5-inch hot-swap NVMe drive bays (default 12x, optional 4x), 3x 2.5-inch hot-swap SATA drive bays, optional: 8x 2.5-inch hot-swap SATA drive bays;
- 10 heavy-duty fans with optimal fan speed control;
- Optional: 8x 3000W (4+4) redundant power supplies, Titanium Grade 6x 3000W (4+2) redundant power supplies, Titanium Grade;
| Drive Bays | Description |
| 0-11 | 12 hot-swap 2.5-inch NVMe drive bays |
| 12-15 | 4 hot-swap 2.5-inch NVMe drive bays (optional) |
| 16-18 | 3 hot-swap 2.5-inch SATA drive bays |
| Â | Slot Description |
| 1 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 2 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 3 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 4 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 5 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 6 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 7 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 8 | PCIe 5.0×16(LP) from PLX switch, linked to GPU |
| 9 | PCIe 5.0×16(FHHL) via PLX switch (optional) |
| 10 | PCIe 5.0×16(FHHL) via PLX switch (optional) |
| 11 | PCIe 5.0×16(FHHL) via PLX switch |
| 12 | PCIe 5.0×16(FHHL) via PLX switch |
SYS-821GE-TNHR Product Applications
- High-performance computing, artificial intelligence/deep learning training, industrial automation.
- Retail, healthcare, conversational AI, business intelligence and analytics.
- Drug development, climate and weather modeling, finance and economics
Get More Information
For more information about the HKShanhai Group Limited AI Server Promotion Kit #8 and its features, or to inquire about pricing and availability, please contact us via live chat or send an email to sales@router-switch.com. Our team is ready to provide you with the information you need to make an informed decision.
HKShanhai Group Limited SYS-821GE-TNHR (8UX13 8GPU, Rear VO) Specification
SYS-821GE-TNHR Specification |
|
| Form Factor | 8U Rackmount Enclosure: 437 x 355.6 x 843.28mm (17.2″ x 14″ x 33.2″) Package: 698 x 750 x 1300mm (27.5″ x 29.5″ x 51.2″) |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch??/td> |
| System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 15 bays
Option A: Total 19 bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for |
| Expansion Slots | Default
|
| On-Board Devices |
Chipset: Intel® C741
|
| Input / Output | 1 VGA port |
| System Cooling | Fans: 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W Redundant Titanium Level (96%) power supplies |
| System BIOSBIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer; HKShanhai Group Limited Server Manager (SSM); HKShanhai Group Limited Update Manager (SUM); HKShanhai Group Limited SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); HKShanhai Group Limited Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring |
|
| Dimensions and Weight |
|
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X13DEG-OAD |
| Chassis | CSE-GP801TS |
