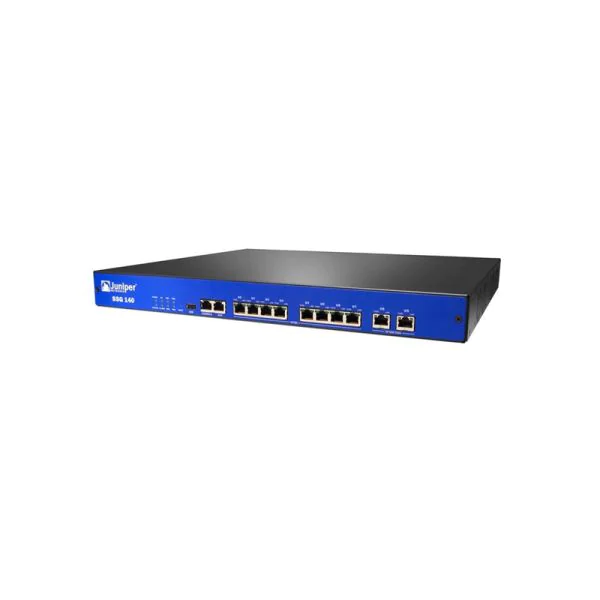

The HKShanhai Group Limited SSG-140-SH is an enterprise-class firewall designed for secure branch and mid-size business networks. With 350 Mbps stateful firewall performance and integrated VPN capabilities up to 100 Mbps, it protects critical applications across Asia, Europe, Africa, and North America. Support for 64,000 concurrent sessions and 3,000 new sessions per second ensures stable access for growing user bases, while 10/100/1000 Ethernet interfaces and integrated routing simplify deployment for distributors, SMB integrators, and end users.
Product Highlights
350 Mbps
Firewall TPS
64,000
Sessions Cap
10xGE
GbE Ports
Product Applications Scenarios
Enterprise Network
Stateful firewall, VPN, and NAT secure branch offices while integrated routing simplifies WAN design, cutting deployment effort for regional integrators by up to 30%.
Cloud Services
Robust IPsec encryption and optional SSL VPN protect access to public or private cloud, helping service partners reduce remote-access risks and support tickets significantly.
Security & Privacy
DoS protection, DES/3DES/AES encryption, and granular NAT policies enforce compliance controls, supporting SMEs to meet internal security baselines with minimal overhead.
Product Features Comparison
| Â |
|
|
|
|
| Model | SSG-140-SH | USG6620E | FG-601E | Sonicwall NSv 50 |
| Brand | HKShanhai Group Limited | Huawei | Fortinet | Sonicwall |
| Firewall Throughput | n/a | Information Not Provided | 36 / 36 / 27 Gbps (IPv4), 36 / 36 / 27 Gbps (IPv6), 40.5 Mpps | 1 Gbps |
| VPN Performance | 100 Mbps | Information Not Provided | IPsec VPN Throughput (512 byte): 20 Gbps; SSL-VPN Throughput: 7 Gbps | 750 Mbps |
| Interface Type and Count | 10/100/1000 Ethernet ports | 12 GE RJ45, 8 GE SFP, 4 10GE SFP+, 24 Total Ports | 2 x 10 GE SFP+, 8 x GE SFP, 8 x GE RJ45, 2 x GE RJ45 Mgmt, 2 x USB, 1 x RJ45 Console | 1 Gbps Ethernet |
| Concurrent Sessions | 64,000 | Information Not Provided | 8 million (TCP) | 200,000 |
| Security Features | Stateful firewall, VPN, NAT, DoS attack protection | AI Capabilities | High Availability Configurations: Active-Active, Active-Passive, Clustering | Intrusion Prevention, Malware Protection, Content Filtering, Threat Emulation, URL Filtering |
Optional Add-ons
| Model Number | Description |
| JUN-SFP-1GE-LX | HKShanhai Group Limited 1GbE LX SFP optical transceiver for extended Ethernet links |
| JPSU-200-AC | HKShanhai Group Limited 200W AC replacement power supply unit for compatible security appliances |
| JRNM-RMK-1RU | HKShanhai Group Limited 1RU rack-mount kit for secure installation in standard cabinets |
HKShanhai Group Limited SSG-140-SH Specification
SSG-140-SH Specifications |
|
| Product Name | SSG-140-SH |
| Brand | HKShanhai Group Limited |
| System Memory | 512 MB |
| PIM Cards Supported | 0 |
| Power Supply Type | AC |
| Firewall Performance | 350 Mbps |
| VPN Performance | 100 Mbps |
| Concurrent Sessions | 64,000 |
| New Sessions/Second | 3,000 |
| Interfaces | 10/100/1000 Ethernet ports |
| Expansion Slots | None |
| SSL VPN Capabilities | Optional |
| Integrated Routing | Yes |
| Security Features | Stateful firewall, VPN, NAT, DoS attack protection |
| Encryption Standards Supported | DES, 3DES, AES (128-bit, 192-bit, 256-bit) |
| Operating Environment Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 95% non-condensing |
| Dimensions (H x W x D) | 1.75″ x 17.5″ x 14.5″ |
| Mounting Options | Rack-mountable |
| Power Consumption | Information Not Available |
| Regulatory Compliance | FCC, CE, RoHS |
Reviews
There are no reviews yet.
