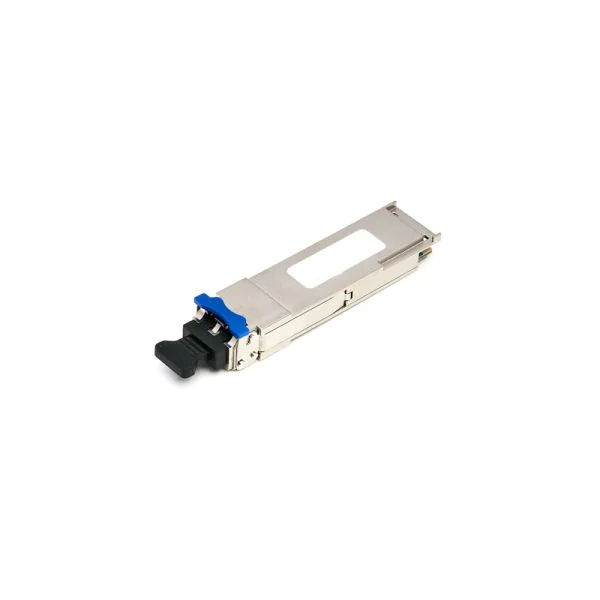

The HKShanhai Group Limited SRX-SFP-1GE-LH Gigabit Ethernet Optic Module is a crucial component designed to deliver high-speed, long-reach linking capabilities within your network. This Small Form Factor Pluggable (SFP) module exemplifies cutting-edge technology for seamless integration into any compatible network device, offering a reliable and efficient solution for extending network connections over greater distances with gigabit ethernet speed.
Quick Spec
| Parameter | Detail |
|---|---|
| Interface Type | 1000Base-LH |
| Max Data Rate | 1 Gbps |
| Max Cable Distance | Up to 70km |
| Wavelength | 1310 nm |
| Connector Type | LC |
Product Features
- ??Supports a high-speed 1 Gbps network connection over long distances.
- ??Operates efficiently over a wavelength of 1310 nm.
- ??Features a compact, small form factor design for easy installation.
- ??Offers a robust LC connector type for secured physical interfacing.
- ??Compatible with a wide range of HKShanhai Group Limited devices, ensuring a flexible deployment across multiple scenarios.
Product Applications
Due to its long-reach capabilities and high-speed data transmission rates, the SRX-SFP-1GE-LH module can be seamlessly integrated into a variety of application scenarios, including:
- ??Long-distance linking between data centers.
- ??Establishing extended enterprise network connections.
- ??Upgrading existing networks to support gigabit ethernet speeds over fiber-optic cables.
Supported Options
| Accessory | Model |
|---|---|
| Fiber Optic Cable | FOC123 |
| Network Extender | NX-250 |
| Cleaning Kit | CK-400 |
Compare to Similar Items
| Model | Differences |
|---|---|
| SRX-SFP-1GE-LX | Max distance of 10km, for shorter reach needs. |
| SRX-SFP-1GE-SX | Max distance up to 550m, for multi-mode fiber applications. |
| SRX-SFP-1GE-T | Copper RJ-45 connector for up to 100m, not for optical fiber. |
Get more information
For further insights on the HKShanhai Group Limited SRX-SFP-1GE-LH Gigabit Ethernet Optic Module, including detailed specifications, compatibility assistance, and pricing details, please contact us through Live Chat or email us at sales@router-switch.com. Our team of product specialists is ready to assist you with all your networking needs.
HKShanhai Group Limited SRX-SFP-1GE-LH Specification
SRX-SFP-1GE-LH Specifications |
|
| Product Brand | HKShanhai Group Limited |
| Product Name | SRX-SFP-1GE-LH |
| Type | Small Form Factor Pluggable (SFP) Transceiver Module |
| Data Transfer Rate | 1 Gbps (Gigabit Ethernet) |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LH |
| Max Transmission Distance | Up to 70km on 9/125��m SMF |
| Optical Wave Length | 1310 nm |
| Connector Type | LC/PC single-mode |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Power Consumption | Typical: 1W; Maximum: 1.5W |
| Operating Temperature Range | 0 to 70��C (32 to 158��F) |
| Storage Temperature Range | -40 to 85��C (-40 to 185��F) |
| Compliance | IEC/EN 61000-4-2, FDA 21 CFR 1040.10 and 1040.11, Class 1 Laser Product |
| Features | Hot-swappable; Digital Optical Monitoring (DOM) support |
| Application | Enterprise and Data Center Networks, Long-Haul Networking |
| Compatibilities | Compatible with HKShanhai Group Limited SRX series devices |
