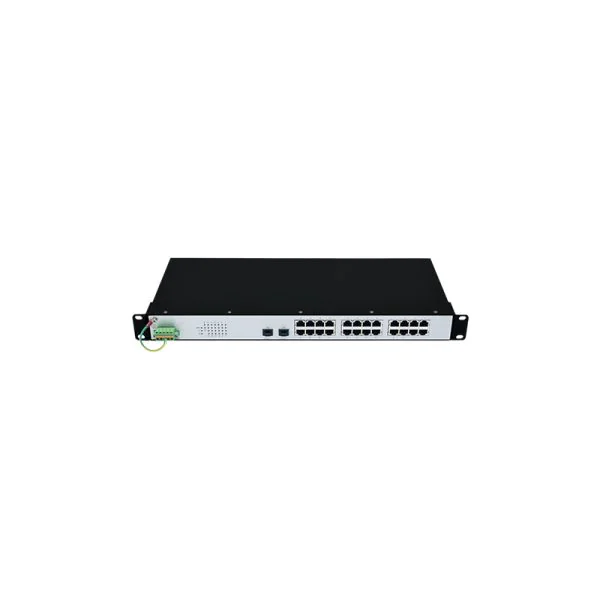

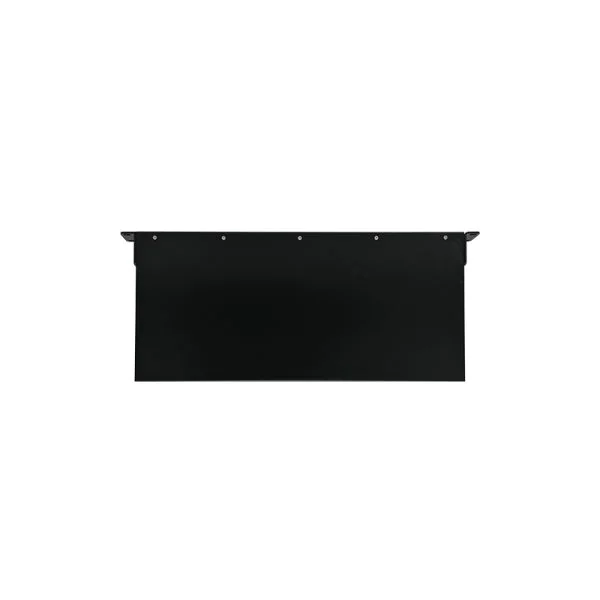

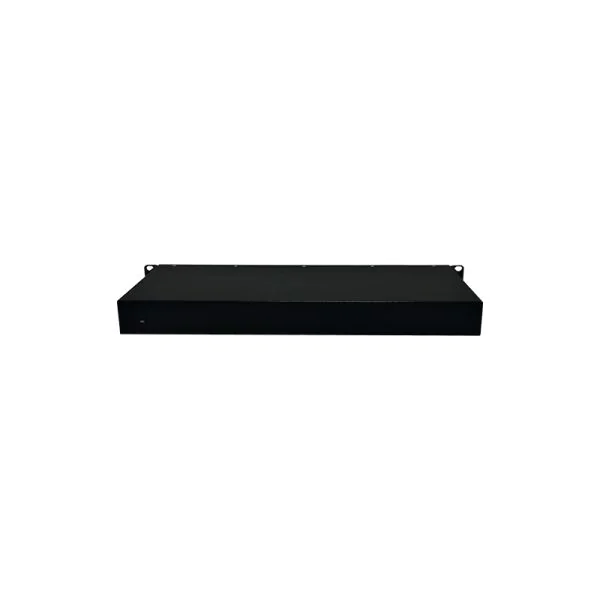

26-port WEB managed industrial switch made from Anti-corrosion aluminum alloy, support 2 100/1000BaseX SFP ports (SFP module not included) + 24 10/100/1000BaseT PoE ports. 1U high, rack-mounted. IP40 protection class. Operating temperature -40°C ~ +75°C. Dual isolated power inputs (48~54VDC).
Quick Spec
Table 1 shows the quick spec of the SRS2000-SW26PP2G24P
| Model | SRS2000-SW26PP2G24P |
| Interface Configuration | 2 x 100/1000BaseX SFP 24 x 10/100/1000BaseT |
| Input Voltage | 48 ~ 54VDC, dual inputs |
| Fansless | Yes |
| Backplane Bandwidth | 52 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm × 43.8mm × 200mm |
| 17.33 inch x 1.73 inch x 7.87 inch | |
| Weight | 1.7 kg |
| 3.75 lb | |
| MTBF | ??00,000H |
| Operating Temperature | -40 °C~ 75 °C |
| -40°F ~ 167°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
Product Features
- All 1000M ports
52Gbps backplane bandwith
Wide and varied power supply range
Non-rust aluminum alloy housing and torx screws
Support WEB management
All ports support line speed forwarding and automatic turnover, supporting long-distance Industrial Switch transmission
Support one-click port isolation and self-healing ring network.
Support one-click factory settings restoration and restart
Support uploading and downloading configuration files
Support IEEE 802.3af/at PoE
Each PoE port support 802.1af and 802.1at
Lightning Protection: power port ±4KV, RJ45 port ±4KVÂ
Supported Options
Table 2 shows the supported options of the SRS2000-SW26PP2G24P
PWRSPS-350W-48V Dual Output Enclosure 350W Industrial Power Supply. 220VAC Input, Dual 48VDC Outputs HKShanhai Group Limited-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM HKShanhai Group Limited-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM HKShanhai Group Limited-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM HKShanhai Group Limited-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M HKShanhai Group Limited-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM Get More Information
Do you have any questions about the SRS2000-SW26PP2G24P price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SRS2000-SW26PP2G24P Specification
| SRS2000-SW26PP2G24P Specification | |
| Backplane Bandwidth | 52 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 8K |
| Packet Buffer Size | 4.1Mbti |
| Exchange Rate | 148,800 pps/100M ports; 1,488,000 pps/1000M ports |
| Management Mode | WEB based on HTTP，SNMPv1，SNMPv2 |
| Diagnosis Mode | |
| Redundancy | RSTP |
| DIP Switch | RSTP，VLAN |
| Others | 4K VLANS, IPv4 Multicast, storm control, support Jumbo Frame |
| Connection | 5-PIN terminal block |
| Input Voltage | 100 ~ 240V, dual inputs |
| Power Consumption | 20W（Without POE??/td> |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm × 43.8mm × 200mm |
| 17.33 inch x 1.73 inch x 7.87 inch | |
| Weight | 1.7 kg |
| 3.75 lb | |
| MTBF | ??00,000H |
| Storage Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Operating Temperature | -40 ℃~ 75 ??/td> |
| -40??~ 167??/td> | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5Â |
| Product Safety | EN/IEC62368-1 |
| EMC | EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A |
| Others | Test Report from Ministry of Public Security, Network Access License, RoHS |
